1. Protein Identity and Related Structures Protein Identity & Related Structures

Kelch-like protein 12

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 279–567	Not recorded	A1CTR 2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.27 Å R-free 0.191

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9Y8K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2VPJ Crystal structure of the Kelch domain of human KLHL12 Deposited 2008-02-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 268–567（300 aa） Fragment：KELCH DOMAIN, RESIDUES 268-567	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.2M AMMONIUM ACETATE, 0.1M SODIUM ACETATE PH4.6, 30% PEG4K	Resolution 1.85 Å R-free 0.222
6TTK Crystal structure of the kelch domain of human KLHL12 in complex with DVL1 peptide Deposited 2019-12-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–567（300 aa）	Not recorded	NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；30% PEG4000, 0.2 M ammonium acetate, 0.1 M acetate pH 4.6	Resolution 2.38 Å R-free 0.251
6TTK Crystal structure of the kelch domain of human KLHL12 in complex with DVL1 peptide Deposited 2019-12-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 268–567（300 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；30% PEG4000, 0.2 M ammonium acetate, 0.1 M acetate pH 4.6	Resolution 2.38 Å R-free 0.251
6TTK Crystal structure of the kelch domain of human KLHL12 in complex with DVL1 peptide Deposited 2019-12-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 268–567（300 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；30% PEG4000, 0.2 M ammonium acetate, 0.1 M acetate pH 4.6	Resolution 2.38 Å R-free 0.251
6TTK Crystal structure of the kelch domain of human KLHL12 in complex with DVL1 peptide Deposited 2019-12-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 268–567（300 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；30% PEG4000, 0.2 M ammonium acetate, 0.1 M acetate pH 4.6	Resolution 2.38 Å R-free 0.251
6V7O Structural Elucidation of Peptide Binding to KLHL-12, a Substrate Specific Adapter Protein in a Cul3-Ring E3 Ligase Complex Deposited 2019-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–567（300 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；Sodium cacodylate, Sodium citrate	Resolution 2.90 Å R-free 0.254
6V7O Structural Elucidation of Peptide Binding to KLHL-12, a Substrate Specific Adapter Protein in a Cul3-Ring E3 Ligase Complex Deposited 2019-12-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 268–567（300 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；Sodium cacodylate, Sodium citrate	Resolution 2.90 Å R-free 0.254
8OIO Crystal structure of the kelch domain of human KLHL12 in complex with PLEKHA4 peptide Deposited 2023-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–567（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M citrate pH 5.5, 0.4 M NaCl, 27,1% PEG8K	Resolution 1.95 Å R-free 0.249
8OIO Crystal structure of the kelch domain of human KLHL12 in complex with PLEKHA4 peptide Deposited 2023-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 268–567（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 3 CL CHLORIDE ION × 1 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M citrate pH 5.5, 0.4 M NaCl, 27,1% PEG8K	Resolution 1.95 Å R-free 0.249
8OIO Crystal structure of the kelch domain of human KLHL12 in complex with PLEKHA4 peptide Deposited 2023-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 268–567（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M citrate pH 5.5, 0.4 M NaCl, 27,1% PEG8K	Resolution 1.95 Å R-free 0.249
8OIO Crystal structure of the kelch domain of human KLHL12 in complex with PLEKHA4 peptide Deposited 2023-03-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 268–567（300 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M citrate pH 5.5, 0.4 M NaCl, 27,1% PEG8K	Resolution 1.95 Å R-free 0.249
8RBH Crystal structure of the kelch domain of human KLHL12 in complex with PEF1 peptide Deposited 2023-12-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 268–567（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M BIS-TRIS pH 5.5, 200 mM NaCl, and 30% PEG4K. (1:1)	Resolution 1.88 Å R-free 0.258
8RBH Crystal structure of the kelch domain of human KLHL12 in complex with PEF1 peptide Deposited 2023-12-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 268–567（300 aa）	Not recorded	NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M BIS-TRIS pH 5.5, 200 mM NaCl, and 30% PEG4K. (1:1)	Resolution 1.88 Å R-free 0.258
9Y8J Crystal structure of the Kelch domain of human KLHL12 with compound 1 Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTS 2-(1H-1,3-benzimidazol-1-yl)-N-(2-fluorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 2.70 Å R-free 0.329
9Y8L Crystal structure of the Kelch domain of human KLHL12 with compound 8e Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTQ 2-(2-amino-5,6-dimethyl-1H-1,3-benzimidazol-1-yl)-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.27 Å R-free 0.193
9Y8M Crystal structure of the Kelch domain of human KLHL12 with compound 8i Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTE 2-(2-amino-5-fluoro-4-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.33 Å R-free 0.178
9Y8N Crystal structure of the Kelch domain of human KLHL12 with compound 8m Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTL 2-(4-methyl-1H-imidazo[4,5-c]pyridin-1-yl)-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.31 Å R-free 0.204
9Y8O Crystal structure of the Kelch domain of human KLHL12 with compound 9c Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTM 2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-[2,6-dichloro-4-(phenoxyacetyl)phenyl]acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.29 Å R-free 0.177
9Y8Q Crystal structure of the Kelch domain of human KLHL12 with compound 9e Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTO 2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,6-dichloro-4-{[(propan-2-yl)oxy]methyl}phenyl)acetamide × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.20 Å R-free 0.152
9Y8R Crystal structure of the Kelch domain of human KLHL12 with compound 9h Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTP 2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-[2-chloro-4-(hydroxymethyl)-3-methylphenyl]acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.33 Å R-free 0.173
9Y8S Crystal structure of the Kelch domain of human KLHL12 with compound 9k Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTN 4-[2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)acetamido]-N-benzyl-3-chloro-2-methylbenzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.29 Å R-free 0.170
9Y8T Crystal structure of the Kelch domain of human KLHL12 with compound 10b Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTJ 2-{2-amino-4-[(morpholin-4-yl)methyl]-1H-1,3-benzimidazol-1-yl}-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.40 Å R-free 0.208
9Y8U Crystal structure of the Kelch domain of human KLHL12 with compound 10j Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTK 2-(4-{[(3S)-3-(4-cyanopiperidin-1-yl)pyrrolidin-1-yl]methyl}-2-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.01 Å R-free 0.141
9Y8V Crystal structure of the Kelch domain of human KLHL12 with compound 10q Deposited 2025-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 279–567（289 aa）	Not recorded	A1CTF 2-{4-[(1R,2S)-2-{[(3S)-3-(1,1-dioxo-1lambda~6~-thiomorpholin-4-yl)pyrrolidin-1-yl]methyl}cyclopropyl]-2-methyl-1H-1,3-benzimidazol-1-yl}-N-(2,4,6-trichlorophenyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1M Bis-Tris pH 5.5, 0.2M MgCl2 and 25% PEG3350	Resolution 1.27 Å R-free 0.199

16 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KLH12_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–295； UniProt 279–567

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9y8k
Deposition date deposition_date	2025-09-11
Structure title title	Crystal structure of the Kelch domain of human KLHL12 with compound 7k
Keywords keywords	E3 ligase, fragment-based drug discovery, PROTAC, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.47 Å
Radius of gyration Rg (electron density) rg_electron	17.51 Å
Forward intensity I(0) i0	33225600.00
Molecular weight molecular_weight	29295.0 kDa
Excluded volume excluded_volume	28011 Å³
Envelope volume envelope_volume	43108 Å³
Hydration-shell volume shell_volume	19923 Å³
Envelope diameter envelope_diameter	56.6 Å
Shell Rg shell_rg	24.47 Å
Envelope Rg envelope_rg	17.64 Å
Shape Rg shape_rg	17.49 Å
Total Rg total_rg	18.23 Å
Total atoms total_atoms	2204
Residues n_residues	287
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.5 Å
Rg (real space) rg_real	18.32 Å
Rg uncertainty (real space) rg_real_error	0.41 Å
I(0) (real space) i0_real	3.3230e+07
I(0) uncertainty (real space) i0_real_error	4.4550e+05
Rg (reciprocal space) rg_reciprocal	18.34 Å
I(0) (reciprocal space) i0_reciprocal	33230000.0000
Solution quality estimate total_estimate	0.5990
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	24.7 Å
Skewness Skewness skewness	0.034
Kurtosis Kurtosis kurtosis	-0.537
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15040000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.669; Stabil: 1.000; Sysdev: 0.259; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Kelch-like protein 12
Molecular weight formula_weight	32148.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2583

GSHMGSANEVLLVVGGFGSQQSPIDVVEKYDPKTQEWSFLPSITRKRRYVASVSLHDRIYVIGGYDGRSRLSSVECLDYTADEDGVWYSVAPMNVRRGLAGATTLGDMIYVSGGFDGSRRHTSMERYDPNIDQWSMLGDMQTAREGAGLVVASGVIYCLGGYDGLNILNSVEKYDPHTGHWTNVTPMATKRSGAGVALLNDHIYVVGGFDGTAHLSSVEAYNIRTDSWTTVTSMTTPRCYVGATVLRGRLYAIAGYDGNSLLSSIECYDPIIDSWEVVTSMGTQRCDAGVCVLRE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,4,6-trichlorophenyl)acetamide
Molecular weight formula_weight	383.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	379

▶

8. Citations (1)

▶

Unit-cell length a length_a	80.064 Å
Unit-cell length b length_b	80.064 Å
Unit-cell length c length_c	76.475 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	1.270 Å
Low-resolution limit resolution_low	27.650 Å
R factor r_factor	0.1814
R_work r_work	0.1808
R_free r_free	0.1914

fit	/app/data/saxs_computation/y8/9y8k/9y8k.fit
pddf	/app/data/pr_computation/y8/9y8k/9y8k.pr.out
profile	/app/data/saxs_computation/y8/9y8k/9y8k.dat

Crystal structure of the Kelch domain of human KLHL12 with compound 7k

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kelch-like protein 12

State in the Current Structure

Other States of the Same Protein in the Database

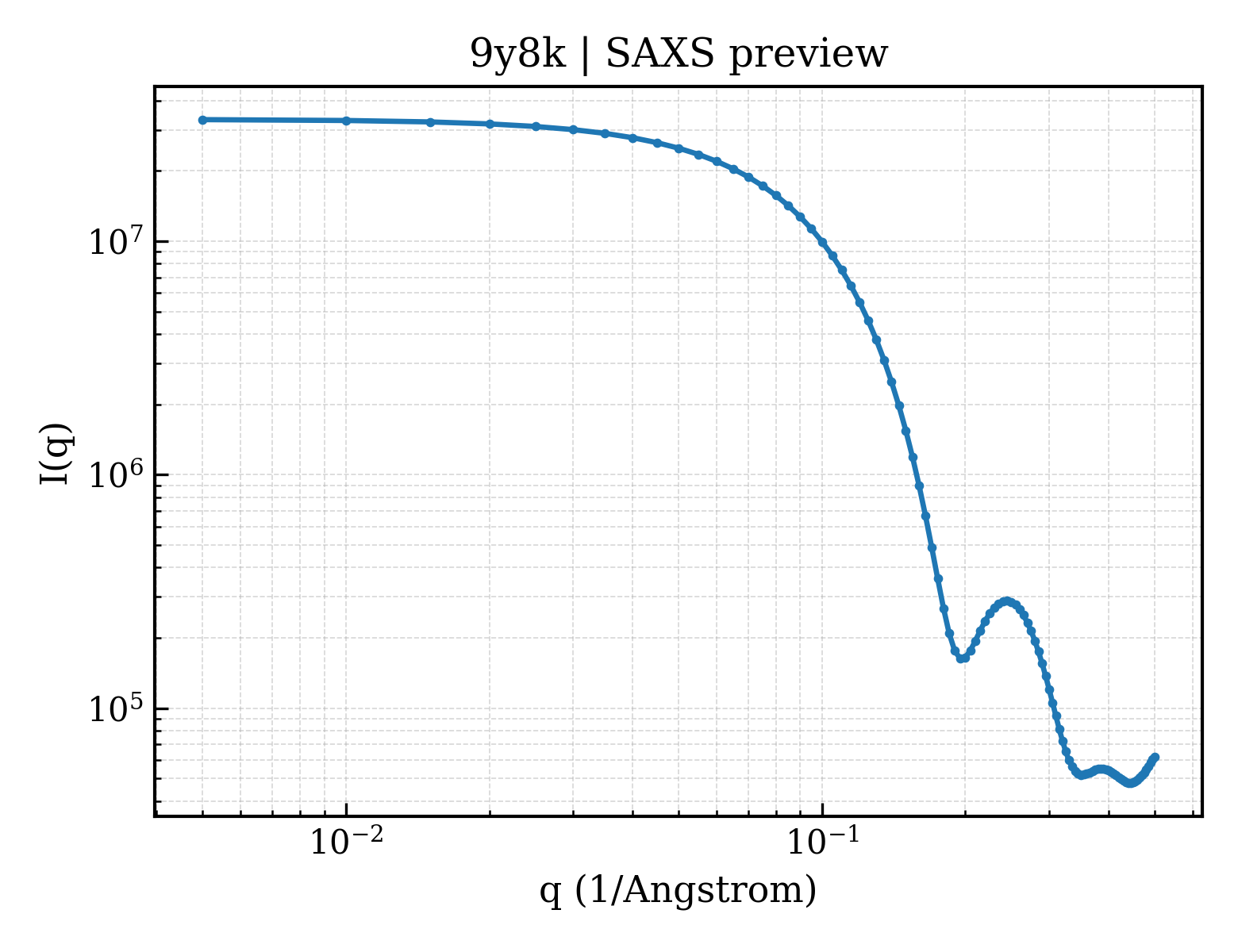

SAXS scattering curve SAXS Profile

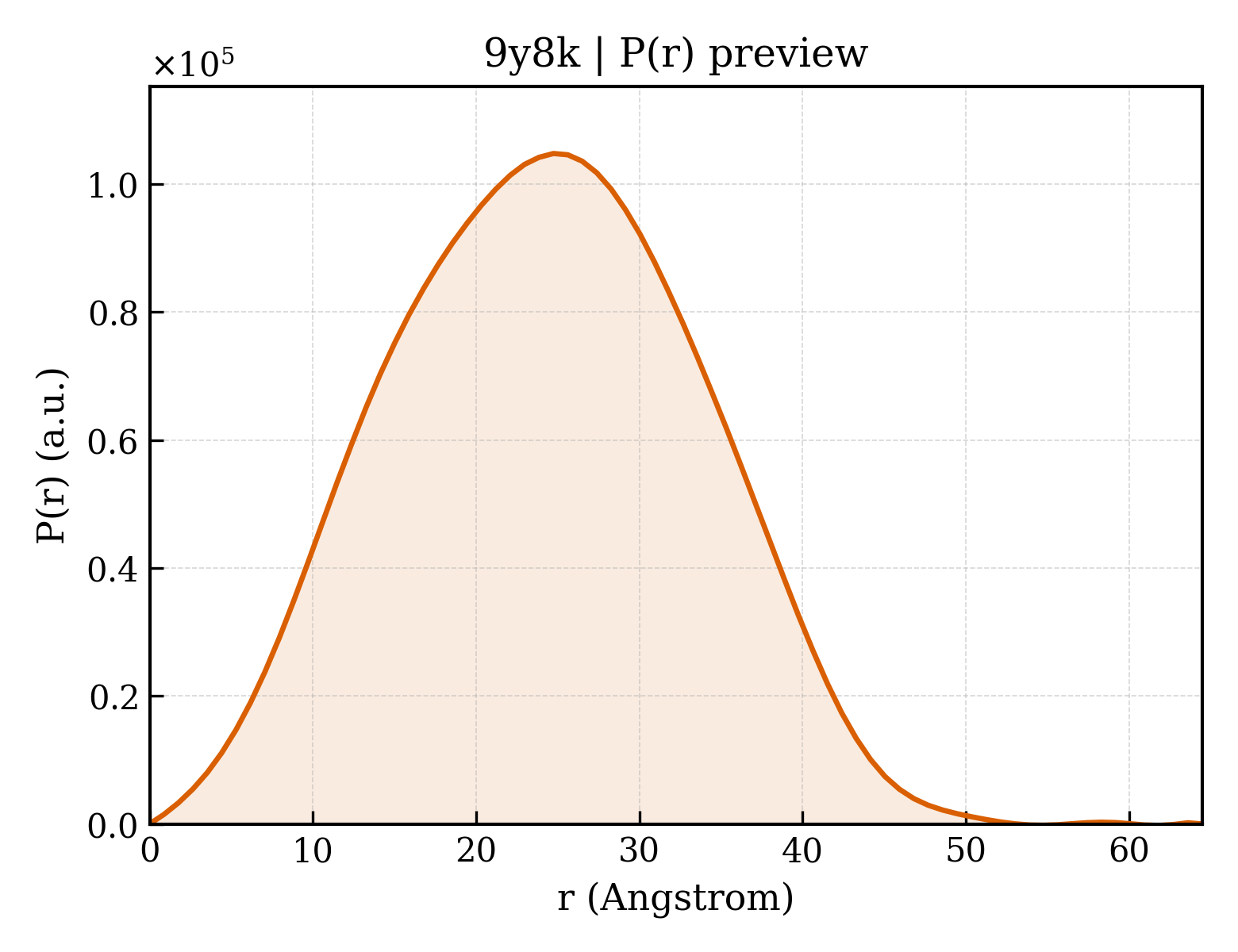

P(r) Distance Distribution P(r) Distribution
