9y8q

Crystal structure of the Kelch domain of human KLHL12 with compound 9e

Method: X-RAY DIFFRACTION D_max: 56.0 Å Quality: EXCELLENT

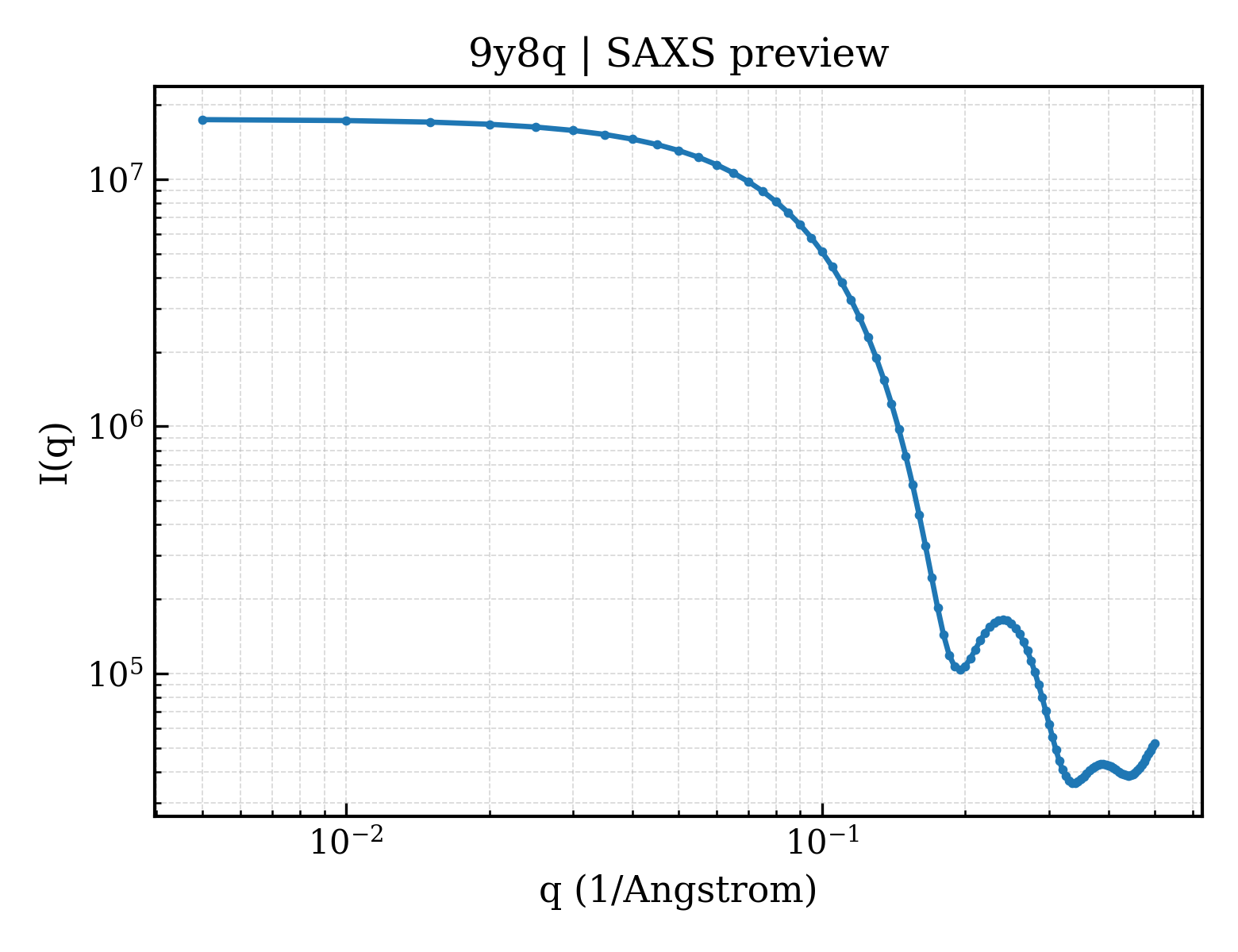

SAXS Profile

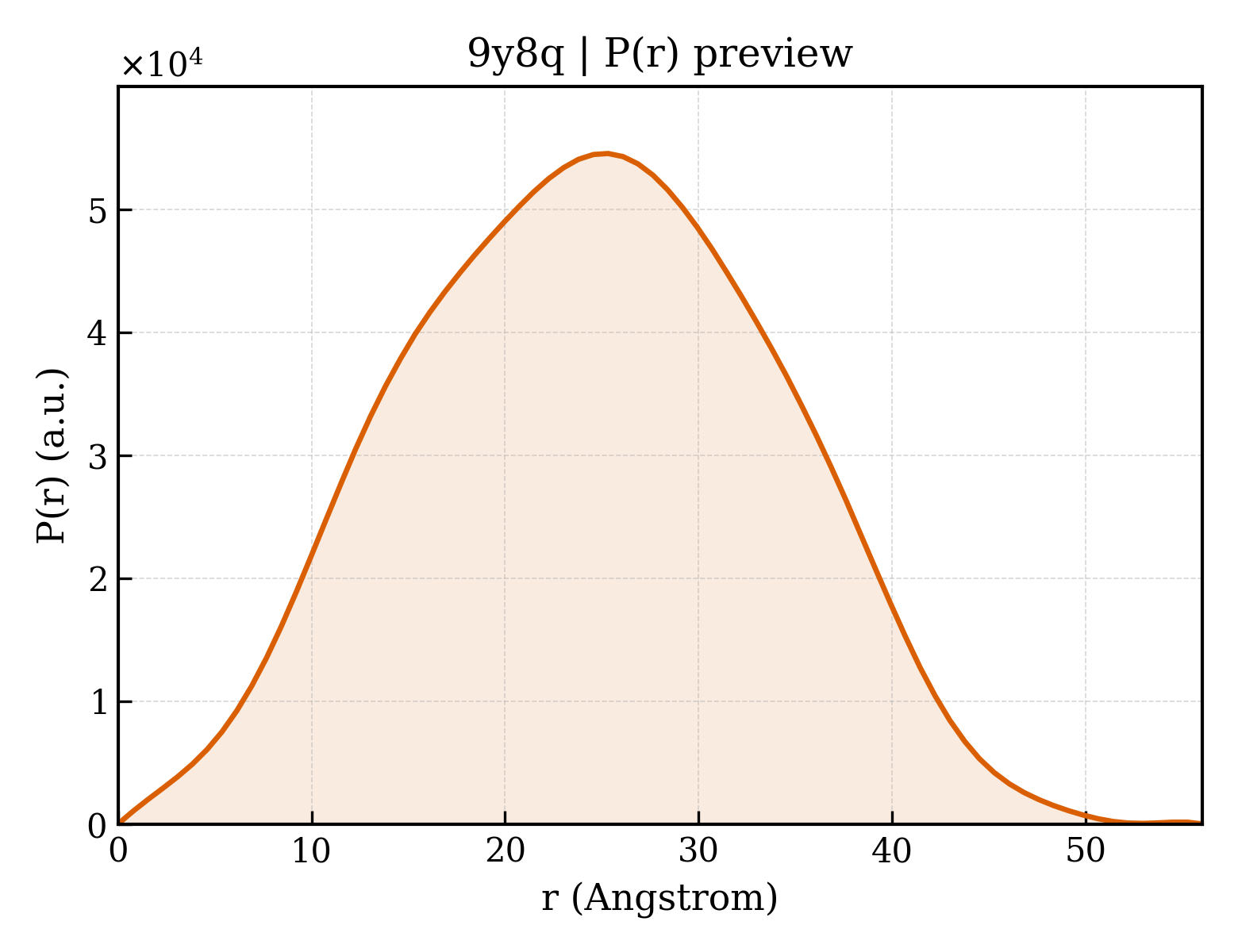

P(r) Distribution

▼

1. Structure Basics

entry_id	9y8q
deposition_date	2025-09-11
title	Crystal structure of the Kelch domain of human KLHL12 with compound 9e
keywords	E3 ligase, fragment-based drug discovery, PROTAC, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.68 Å
rg_electron	17.44 Å
i0	17476800.00
molecular_weight	31199.0 kDa
excluded_volume	38713 Å³
envelope_volume	42690 Å³
shell_volume	19789 Å³
envelope_diameter	56.4 Å
shell_rg	24.46 Å
envelope_rg	17.60 Å
shape_rg	17.39 Å
total_rg	18.54 Å
total_atoms	4293
n_residues	287
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	56.0 Å
rg_real	18.51 Å
rg_real_error	0.24 Å
i0_real	1.7480e+07
i0_real_error	1.8290e+05
rg_reciprocal	18.54 Å
i0_reciprocal	17480000.0000
total_estimate	0.9017
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	25.3 Å
skewness	0.022
kurtosis	-0.540
angular_range	— – 0.4250 Å⁻¹
current_alpha	0.0000
highest_alpha	7501000.0000
n_real_points	74
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.917; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.994

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Kelch-like protein 12
formula_weight	32148.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4826

GSHMGSANEVLLVVGGFGSQQSPIDVVEKYDPKTQEWSFLPSITRKRRYVASVSLHDRIYVIGGYDGRSRLSSVECLDYTADEDGVWYSVAPMNVRRGLAGATTLGDMIYVSGGFDGSRRHTSMERYDPNIDQWSMLGDMQTAREGAGLVVASGVIYCLGGYDGLNILNSVEKYDPHTGHWTNVTPMATKRSGAGVALLNDHIYVVGGFDGTAHLSSVEAYNIRTDSWTTVTSMTTPRCYVGATVLRGRLYAIAGYDGNSLLSSIECYDPIIDSWEVVTSMGTQRCDAGVCVLRE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	2-(2-amino-4-methyl-1H-1,3-benzimidazol-1-yl)-N-(2,6-dichloro-4-{[(propan-2-yl)oxy]methyl}phenyl)acetamide
formula_weight	421.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	362

▶

6. Citations (1)

▶

length_a	79.950 Å
length_b	79.950 Å
length_c	76.800 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 41 21 2
int_tables_number	92
crystal_system	—

resolution	1.200 Å
resolution_low	35.780 Å
r_factor	—
r_work	0.1326
r_free	0.1521
