9yaw

Localized reconstruction of the asymmetric unit of SINV/EEEV in complex with Fab EEEV-33 at arm 4 at pH 5.6.

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E1 glycoprotein

Eastern equine encephalitis virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 4	Fab EEEV-33 heavy chain × 1 Fab EEEV-33 light chain × 1 Capsid protein × 4 （A0A167MLL6） E2 glycoprotein × 2 （A9XR09） E2 glycoprotein × 2 （A9XR09） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	E9KXM2_EEEV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–441； UniProt 802–1242 Author chain B； PDBConstruct 1–441； UniProt 802–1242 Author chain C； PDBConstruct 1–441； UniProt 802–1242 Author chain D； PDBConstruct 1–441； UniProt 802–1242

Capsid protein

Eastern equine encephalitis virus

UniProt A0A167MLL6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 4	Fab EEEV-33 heavy chain × 1 Fab EEEV-33 light chain × 1 E1 glycoprotein × 4 （E9KXM2） E2 glycoprotein × 2 （A9XR09） E2 glycoprotein × 2 （A9XR09） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A167MLL6_EEEV
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain P； PDBConstruct 1–155； UniProt 107–261 Author chain Q； PDBConstruct 1–155； UniProt 107–261 Author chain R； PDBConstruct 1–155； UniProt 107–261 Author chain S； PDBConstruct 1–155； UniProt 107–261

E2 glycoprotein

Eastern equine encephalitis virus

UniProt A9XR09

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 4	Fab EEEV-33 heavy chain × 1 Fab EEEV-33 light chain × 1 E1 glycoprotein × 4 （E9KXM2） Capsid protein × 4 （A0A167MLL6） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A9XR09_EEEV
Isoform	—
PDB entities	5, 6
Chains and sequence ranges	Author chain a； PDBConstruct 1–418； UniProt 2–419 Author chain d； PDBConstruct 1–418； UniProt 2–419 Author chain b； PDBConstruct 1–419； UniProt 1–419 Author chain c； PDBConstruct 1–419； UniProt 1–419

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yaw
Deposition date deposition_date	2025-09-16
Structure title title	Localized reconstruction of the asymmetric unit of SINV/EEEV in complex with Fab EEEV-33 at arm 4 at pH 5.6.
Keywords keywords	;Eastern Equine Encephalitis Virus, Cryo-EM, Single Particle Averaging, localized reconstruction, asymmetric unit, low pH back neutralization., VIRUS ;; VIRUS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9yaw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

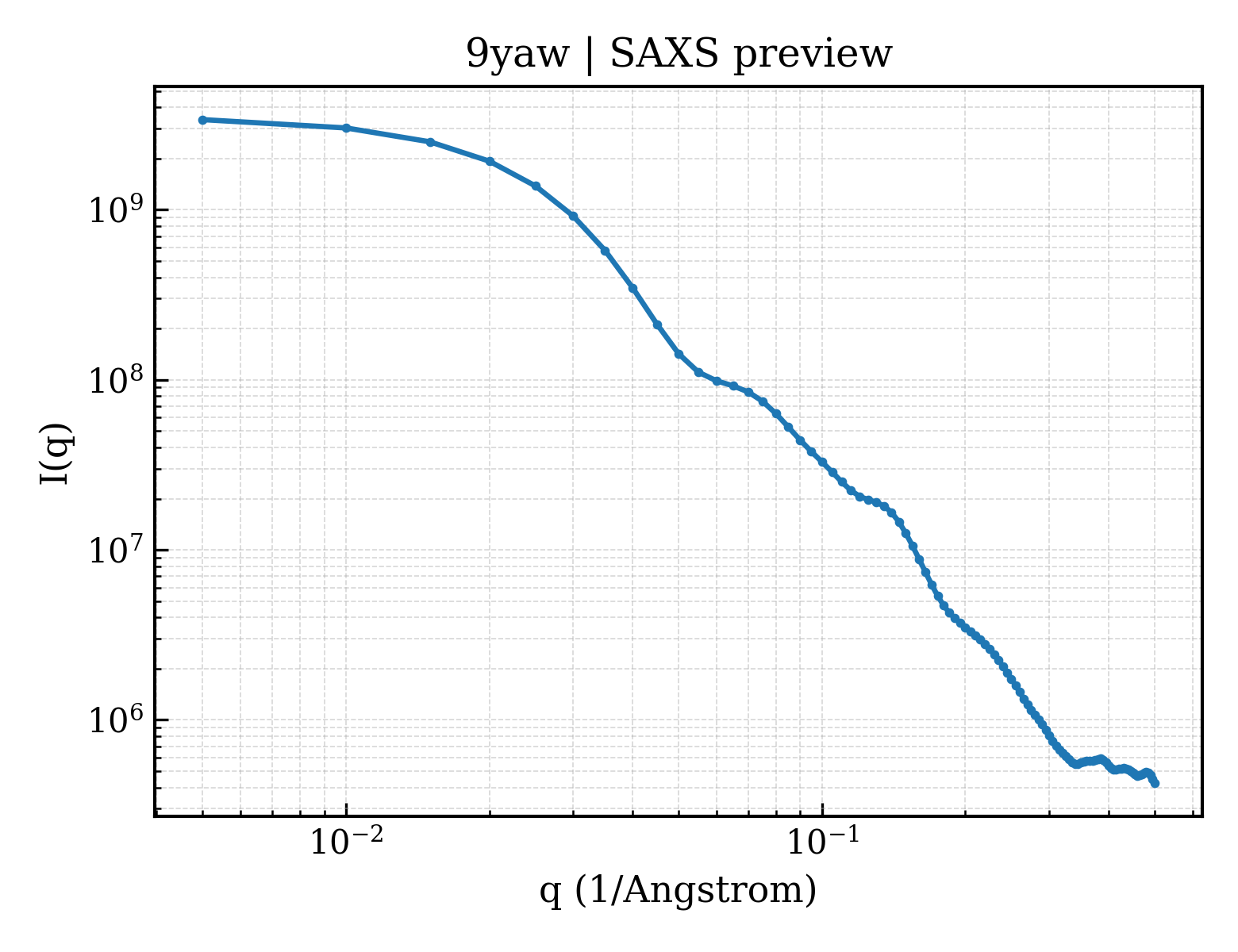

9yaw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9yaw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	67.07 Å
Rg (electron density)	67.11 Å
Total Rg	67.22 Å
Atom count	34990
Residues	4501
Excluded volume	621240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9yaw__assembly_1__model_1`	14-meric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Fab EEEV-33 heavy chain
Molecular weight formula_weight	25070.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1
Atom count atom_count	34990

QVTLKESGPALVKPTQTLTLTCTFSGFSLSTSGMRVSWIRQPPGKALEWLARIDWDDDKFYSTSLKTRLTISKDTSKNQVVLRMTNMDPVDTATYYCARILPGYCSGGSCYYNYHFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Fab EEEV-33 light chain
Molecular weight formula_weight	22807.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2

SYVLTQPPSVSVAPGQTARITCGGNNIGSKSVHWYQQKPGQAPVLVVYHDSDRPSGIPERFSGSNSGNTATLTISRVEAGDEADYYCQVWDSSSDPYVFGTGTKVTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	E1 glycoprotein
Molecular weight formula_weight	47938.1 kDa
EC 编号 ec_number	3.4.21.90
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

YEHTAVMPNKVGIPYKALVERPGYAPVHLQIQLVNTRIIPSTNLEYITCKYKTKVPSPVVKCCGATQCTSKPHPDYQCQVFTGVYPFMWGGAYCFCDTENTQMSEAYVERSEECSIDHAKAYKVHTGTVQAMVNITYGSVSWRSADVYVNGETPAKIGDAKLIIGPLSSAWSPFDNKVVVYGHEVYNYDFPEYGTGKAGSFGDLQSRTSTSNDLYANTNLKLQRPQAGIVHTPFTQAPSGFERWKRDKGAPLNDVAPFGCSIALEPLRAENCAVGSIPISIDIPDAAFTRISETPTVSDLECKITECTYASDFGGIATVAYKSSKAGNCPIHSPSGVAVIKENDVTLAESGSFTFHFSTANIHPAFKLQVCTSAVTCKGDCKPPKDHIVDYPAQHTESFTSAISATAWSWLKVLVGGTSAFIVLGLIATAVVALVLFFHRH

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Mesocricetus auratus

Entity 4 Entity 4 polymer

Description description	Capsid protein
Molecular weight formula_weight	16999.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q,R,S

KLESDKTFPIMLNGQVNGYACVVGGRVFKPLHVEGRIDNEQLAAIKLKKASIYDLEYGDVPQCMKSDTLQYTSDKPPGFYNWHHGAVQYENNRFTVPRGVGGKGDSGRPILDNKGRVVAIVLGGVNEGSRTALSVVTWNQKGVTVKDTPEGSEPW

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Mesocricetus auratus

Entity 5 Entity 5 polymer

Description description	E2 glycoprotein
Molecular weight formula_weight	46860.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	a,d

LDTHFTQYKLARPYIADCPNCGHSRCDSPIAIEEVRGDAHAGVIRIQTSAMFGLKTDGVDLAYMSFMNGKTQKSIKIDNLHVRTSAPCSLVSHHGYYILAQCPPGDTVTVGFHDGPNRHTCTVAHKVEFRPVGREKYRHPPEHGVELPCNRYTHKRADQGHYVEMHQPGLVADHSLLSIHSAKVKITVPSGAQVKYYCKCPDVREGITSSDHTTTCTDVKQCRAYLIDNKKWVYNSGRLPRGEGDTFKGKLHVPFVPVKAKCIATLAPEPLVEHKHRTLILHLHPDHPTLLTTRSLGSDANPTRQWIERPTTVNFTVTGEGLEYTWGNHPPKRVWAQESGEGNPHGWPHEVVVYYYNRYPLTTIIGLCTCVAIIMVSCVTSVWLLCRTRNLCITPYKLAPNAQVPILLALLCCIKPTR

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Mesocricetus auratus

Entity 6 Entity 6 polymer

Description description	E2 glycoprotein
Molecular weight formula_weight	46975.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	b,c

DLDTHFTQYKLARPYIADCPNCGHSRCDSPIAIEEVRGDAHAGVIRIQTSAMFGLKTDGVDLAYMSFMNGKTQKSIKIDNLHVRTSAPCSLVSHHGYYILAQCPPGDTVTVGFHDGPNRHTCTVAHKVEFRPVGREKYRHPPEHGVELPCNRYTHKRADQGHYVEMHQPGLVADHSLLSIHSAKVKITVPSGAQVKYYCKCPDVREGITSSDHTTTCTDVKQCRAYLIDNKKWVYNSGRLPRGEGDTFKGKLHVPFVPVKAKCIATLAPEPLVEHKHRTLILHLHPDHPTLLTTRSLGSDANPTRQWIERPTTVNFTVTGEGLEYTWGNHPPKRVWAQESGEGNPHGWPHEVVVYYYNRYPLTTIIGLCTCVAIIMVSCVTSVWLLCRTRNLCITPYKLAPNAQVPILLALLCCIKPTR

Source Source

Source organism organism	Eastern equine encephalitis virus
NCBI taxonomy ID ncbi_taxonomy_id	11021
Host organism host_organism	Mesocricetus auratus

Entity 7 Entity 7 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	4

Entity 8 Entity 8 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.200 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	4.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	235980

Localized reconstruction of the asymmetric unit of SINV/EEEV in complex with Fab EEEV-33 at arm 4 at pH 5.6.
