9yoq

Core module of ctSAGA

Method: ELECTRON MICROSCOPY D_max: 172.7 Å Quality: GOOD

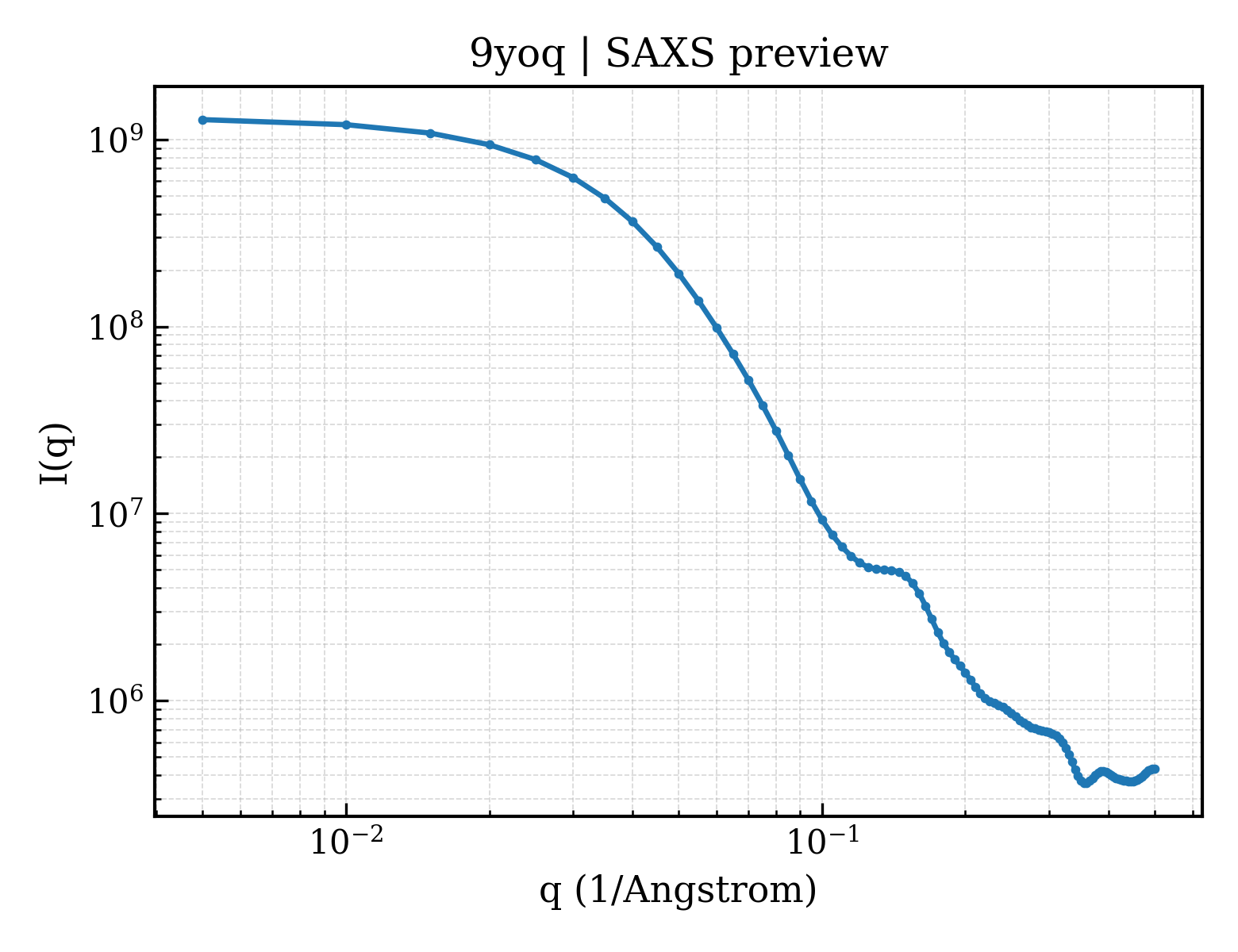

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9yoq
deposition_date	2025-10-13
title	Core module of ctSAGA
keywords	ctSAGA complex, Histone Acetyl Transferase (HAT) Module, Tra1 module and Core module, TRANSCRIPTION; TRANSCRIPTION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.69 Å
rg_electron	49.54 Å
i0	1302720000.00
molecular_weight	299980.0 kDa
excluded_volume	375790 Å³
envelope_volume	568230 Å³
shell_volume	94881 Å³
envelope_diameter	175.8 Å
shell_rg	53.30 Å
envelope_rg	49.53 Å
shape_rg	49.54 Å
total_rg	49.66 Å
total_atoms	41791
n_residues	2656
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	172.7 Å
rg_real	49.81 Å
rg_real_error	1.83 Å
i0_real	1.3030e+09
i0_real_error	2.5260e+07
rg_reciprocal	49.69 Å
i0_reciprocal	1303000000.0000
total_estimate	0.8585
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	54.0 Å
skewness	0.423
kurtosis	-0.293
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	215400000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.779; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.823

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	Non-specific serine/threonine protein kinase
formula_weight	444670.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	41791

MATSLIEDVVKKLSVAETGTGNSLSERSLLVLPLMQVSCYTELKVKAEAACALRDSLDHYTAGPAYPAFLKKVMPVFIHILRQQPVFQTTGEQGHMQKLRNCILEILHRLPTSQTPPEHFEPYAHEIVDLLLELVRTDNEDNVILCVKILSDIMRHQHKIMSGKVQTFLNLIQELFEQLDKVVRDQLDNTSTTGPPGPPSTPGSTQSSFLPHQQSPRPGSPVTTGVTDFGADANQQANRLLPRGMYSFKVLAECPIIVVSIFQVHRSAVTPNVKAFVPLIKSALLCQAKAQDQAHREAAARGTIHIGVSPNIKNRAAFGDFITAQVKTMSFLAYLLRQYSSQLSDFLPHLPDIIVRLLRDCPRDKSSARKELFVAIRHIINFNFRKIFLPKIDELLDERTLVGDGLTVHETMRPLAYSMLADLIHHVRDQLSPEQIRKTVEVYTRNLQDNFPGTSFQTMSAKLLLNMAECIARLPNKVDARHYLIMILNAIADKFAAMNRQYPNAVKLSKQYAQQAAKNVPETYLADKENPPDWDEIDIFNATPIKISNPRDRAADPVVDNKFLFRNLMTGLKNTFYQLKSCNIPGAVDLTGAPAHWTDVAYGFTAEEVKVIAKLFREGAYVFRYYEIEKPAAESPYSSPVEYMANFYMVSSSKEEKELLETFATVFHCIDPATFHEVFQQEIPRLYEMIHEHTALLHIPQFFLASEATSPSFCGILLRFLMERIEDVGSADIKKSSILLRLFKLAFMAVTLFANQNEQVLLPHVVDIVTKSIELSTKAEEPMNYFLLLRSLFRSIGGGKFEHLYKQILPLLEMLLDVLNNLLMAARKPAERDLYVELCLTVPARLSNLLPHLSFLMRPLVVALRAGTELVGQGLRTLELCVDNLTADYLDPIMAPVIDELMTALFDHLKPHPYSHFHAHTTLRILGKLGGRNRKFMTEALPVTFQQYVDDRASFDLRLIGSKRDRAFPAHLGIDLAIQKLTEIPKPVKGGVPQLSRQYDPYYKRQALNLIIAQTKLRVGFDSVPEDLPRLVRLQVEDLVKKNRDVDISLFEVSDKERSIAKKNEEQALLKRLLKALLYAESIPEFKQEVDALLVNLARHFTLIEIGRSVIDMKKAYTPFDTKSGEGPLFIDNRVLSEAILESLANENLEVREAAKRLIKEMHNAAVTVFGSPMHVPRMTFWSSLASTFCHGCYEEEWFTKQGGALGIQTLLTEIDLGDLWVAAKQIEFVRALMYVVKDMPQDLPEKTRRTAQVTLEQLLARITRNAKKQDCLPPPPPPAPPGSHPPQPPPRPPRLAQLVMMLNSELAHMNRHVRATARRSIEAIAAAAQAEVWELLEPHKKHILGPIYAKPLRALPFAIQIGYIDAVTYYMSLKRDFVPFDENLNRLLMESLALADASDESLAGKTLEFRTHDFIVNLRVSCIKILSRAMSFEEFGSGSNNPTRPKVVSVFFKCLYSDSQPTIDAANDALKAVLQHTTKLPKDLLQSGLRPVLASLQDAKRLTVHSLDNLGRLLRLLTTYFKVEIGTRLLEHVKQIADPNFLQQLSFTFFEQNNAMKVIAAVFNIFHLLPDAARQFKERVIDNVLDLEQKLRRTHHSPFRLPLYKYLNKYPSDIWAFTLQKLEDLRYGRFLAQVLRHPDSQVLRDYGAANVEFIIKTCNTVVVSGKETKFIAIINTINMLDALCQFPTANSQSWLDNKEHIEWLKTVGKELELQQKKNSLTPNLRLPAHQASEQLMNILTKALDRNPNDLDALFSLVEGITSDDFRETPALLSHIYNKIIRSDSIDFWRITILRCLDIYSGKTASQRMKWYLLHNIVNPIIAMDVMRTWDDPNKASRLLDRTVIDSINTKIWKVNLPDPQEDLLQPRVDHTRMEVLQLSAMLVKYRHALLQDARKDFIKFAWTYIRLDDVINKHAAYVVIGYFIAHYETPAKIVSQIYFSLLKTNQNEGRALVTQALELMAPVMPKRCPFPPGDRNPVWALAPRRILAEESQNVQQMTAIFHYLVRHPDLFYDTRDKFAMLIIQCLRKVASPPNPSNDNRKLALNMMWLIWQWEQRRVESKLSEPLRAPSESPNSNKRKLDEQQGLSPSATRQAEFQIPSVGRHKMIRYLVEFIAQLNERYPLPSARPSDPPTTTSFLLPSPSNELCKKATALLYNLLQPQYWGDLVEEMDLFPNVTDLVLAGEKSATLLSADPSDPEKCDDKLITSIINTLQVVRIVLHFKSDRWILDNMPQIQKILEKCLKSANPEIQDCLHMADRKYDGDRDVKPTIKRILDAVPEDIPMEDADGDIEPESQTSELIAWLSGIATESMAAGNYVSGINILWSLGHRKPSIIDQHIPAIMRSLQSKLARDHVSHYAALGHQASGLRPQADPNAPTEMKAYDLEIQTNLILKAIEVTAMRMEILGDNRRPFLSVLATIVEKSLHIPLCEKILEMVEGWVFRSEGTWPTLKEKTAVLHKMISFEHRTDPTMLHKFLNLVLRIYEDPKITRTELTVRMEHAFLIGTRAQDVEMRNKFMSIFDKCLSKTASARLAYVILGQNWDTLADSYWLAQASQLLLGAVDMNPTIQLHQDDFRTLPISQLVAPYAKDSREPSVMIDDKFEAFMANHRRFLAELGDVRARDVLEPLMQLQHIDANFAHELWVALFPMFWSAVPKEDRPDLERGLVTLLTKDYHSRQMDKRPNVVQSLMAGAVKTWPHCKIPPHVLKFEAKTYDAWYTALHQLENAAIKPEIDSAAVRESNLDALVDLYSTLGEDDLFYGTWRRRCQFVETNAGLSYEQHGMWEKAQRMYESAQIKARTGVIPFSEAEYMLWEDHWVLCAQKLQQWEILQDFAKHENFQDLLLECAWRNTEYWQNQENRDQLDTVIKGVMDAPTPRRYFFQAFMSLLKLHNKQETPQDFNRVVDEAIQLSIRKWHQLPKRLTAAHVPLLQNFQQLVELHDASVICQSLAQTNASNLDVKSGELKLLLGSWRDRLPNMWDDIVAWQDLVTWRQHVFGLINATYLQLIPQQAQNAGGASFAYRGYHETAWIINRFAHVARKHALPEVCISQLSRIYTLPNIEIQEAFLKLREQAKCHYQNPDELTSGLDVINNTNLNYFSAPQKAEFYTLKGMFLEKLGQKEEADTAFGTALYFDITAAKAWAEWGYFNDRKFKENPSDLPSAKQALTSYLQAASSYKNHKSRKLIARILWLLSLDDANGTIAAGFDDFKGEIYVWWWIIFIPQLLVGLGYKEAPRVQAILLKIAKTYPQALYFLLRTNREDMLTIKKNQEAKERARQRAAQAAIPNKPNGSPQLTKKDGAAGAADGRPPTANGETPKPPEIKIEGAAPNAPTAATPQAAANAPQVPGAAPAEQQTGGVQKKPPWELTEEIMSVLKTAFPLLALSMETMVDQIQKHFKCPPDEDAYRLIVALLNDGLSYVSRMPASYAKDVKLPAATENNITRFAETILPNHIRPTFEADFVKVKPTMYEYIHNLRKWRDKFEEKLDRRASPAPLESFAHYSPHLSEFRYQKFDDVEIPGQYLQHKDKNQDFIRIDRFLPNVDLVRTIGASHRRLRIRGHDGSVHAFAVQHPAARHCRREERVLQLFRQLNQTLANKKESRRRDLQFTLPLMVPLAPHIRIVQEDTSYITLQSVYEDHCRRHGMNKDEPILFTMEKLRGLMDAKALQKPEQAVTAKLEVYRAIQEKFVDHTIVLEYFQGAYPNFADFWLFRRRFSYQLAALTFMTYTMHIDKRYPHKMNIARGSGNIWGSEAVSYMAPSRPLFQNTEPVPFRLTPNLQTLMGPLATEGIFAASVMAIARCLTEPEQHLEHALTLFVRDEMMFWFTNSHRTMSLTENQLRETVQANCDMIVKKALALAQTPQGNLPAHQTVTDLIAKATNPMNLALCDALWMPYL

Entity 2 polymer

description	Spt20-like SEP domain-containing protein
formula_weight	128449.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MAPTVTAAAPPVNPPSATKVKRPIPPGIQTNGVAPSRSSPSPSMAAKRAPSAVRQPSNPPSAGGTTPGATRPTIRIRRDPGPGPPLGRGQRSAGLRSASIATDPVTSPTFDAPPYVITPEYILKKFAGHPPSLIVHLYQNHFRFDQQEGMFQYKSPMRIFIEHLRNRTVPHEIMEYLIQGGVPFYEGCLIVQVFDHRTVNQTKEAAKPSSESSKTVPFSIHNHNPYITPSPYVPYPKEDTPADGSQTPASEKPSEDKDKENMPAPPVPADGQKAKGEPAKPTVYTVVLMPTAQALHTDLLLKTVTPRGASDSGGPPPTPHTAGPPPTPTAAGMPPPAKKQKRDHMELDPKNIYEVEAKILLATYPKLDLEPTKNAEETIAKLEKLAHPEHSHKPPEPKVRKRTVAEVAHDEALAAEQERYMLTLDERLSSKLAGAQAGANGADGDGQAPSASWEPRFERFKLIENIKQEHAEKKEQERIKQAEQERKLLQQKQEAAILQARQQQAEMERKRQEQIVLQQRQEAQRRLQQAQAAPVAQAQAQAQAQAQAQAQAQAQAQARAQARAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAQAAQAQAQAQAQAQAQAQAQAQAQAQAQAQQAATAATMGQTPHAHPMQPSPLPAGMTAGMPVSMAQQAQARFSQVSQPQQMSSPIVQQGTPQAASSPMPPMAAVAMQHSNSNMGQAGSPPRPPSVVQNHPMGVPMAPSMSARGSQQSHAAGTPRVPSATPNIPHATPITRPQVVPTPRMTQASPPAGVMTPTPQQMGQAMLMNNQGIAQMPNVNINSLAAAQQMAAQQRLIQQYQQQLQQSGMVPGNVQANMLQQQLAARQQMMIQQQLLAQQQQRAGQMMNPNIQAQLAAQYQQSLNNMQQQQLAQMNPMQAAHMRQLLAAQQAQRQGMMGVNVNVNGMTPQQLAVMQQQIQLQQQAQLIQQQQQQQQQLQQQQQQQQQQQQQQQQQQQQQQQQQAAQQQPQPGMPGHPPQAAVAPTAPQVPIAQLQPPQNQLAALMMNPAVQNQIRNHSNALYSKNLPALAERFGGNAQNIPPEALAEFRQKCLNQAKVQVLSMLQQQQAGGRLAAGLPPQVQAAQVQAMQQQAQALAVAQAQVQAAQQAAAAQAAQQQGGMGQGM

Entity 3 polymer

description	Uncharacterized protein
formula_weight	48541.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MALSDNNPEEVDGMFLSNLRSDLELEEIWRMLQSGVTSPEDSQPTVSLDASSSGDKTMSSESQVALQDDADDELLVSILAGKVPLSELLANDNELLQSDGLSSAVCSADSDQEEDDNNDAGYGEEPDPRDVIANWFELCQMMYVSGETGEPSLETTGIIEDIVRQQVIEIIRHDAPKVSRLRTFLAWKDVRKNVKDSDDKGADADIAPGDDPVGAVVPGATVDDTARKTKKSRVGLPWEPASFYSVEVPEREDEEDEEEEEMNYITLQRLRKADERTKAMTKEEYVTWSEFRQASFTYRKGKRFREWAGFGLVTDSKPSDDIIDILGFLTFEMVQTLTEEALKIKEQEDLHRERTGENQSNANNPNGSANSSLSKKRKLTGGGGLFDPPNEGRTPVEPRHIQEAFRRLQQRPKKARAMLNGTKLQQRTQLKLF

Entity 4 polymer

description	Transcription initiation factor TFIID subunit 5
formula_weight	83784.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MSNPAPQAAGQGAAGTPYGNPPPSAGGAGSGSAGASAPSTTPSAQNLNQIVTDYLKKKGFTRTEAVFRQETAHLGPDGRPVNRNDDPGPKKYLKAFLLLKNWIDNNLDIYKFELRKLLWPVFVYSYLELVSQGYVDDAKHLLETLRSHFEAVHQDQLALLDTVTLPQHVSENHTTRLYRENKYRIPLNQSLSGNLFHFLEREADNGGATIIYILQTHCSVETSARGPIEPYSFEAIYRRARNLDLDEADAHEGIPGIFTGVTNRDVLDTSARLKLGPLPMEPELREDVRAELEEEDQRNPPMDNRPTLVEEFDKKIKREESADSPSRNDLPLPASRARDVVMEMQKVRENRDRFVIEGRTGGIGIPVSACMFTFHNTLGTVSCMDFSNDHKLVAVGTMDSYIRVWSLDGKPLKSALENEKNLKVNNRKLIGHSGPVYGVSFSDSIANLDRNIYGEGDDKKPDTSSKLLLSCSADGQIRLWSLEIWACLCIYKAHDGPVFRVLWGPHGHYFASAGWDKTVRVFTQDHASAVRIMVGHDTSISALAWHPNGTYVFSASDEMDKSIRMWSVITGNCVRIFTGHTHYITALECAHNGKILASADTGGNIFIWDIEKGTLIKKCRGHGKGGIPSLSFSAESNVLVSGGLDCTVRVWDIELPADPNKNNPLAPSTTQSGQQSDGTTATGDTIAVGGSADGRNITVGGQGTQAGGAGTSGSGVAGAVTGKKKAKEVQITPDQISAFATKKTPVLKVRFTRMNLIVAGGCYDPER

Entity 5 polymer

description	Transcription initiation factor TFIID subunit 6
formula_weight	52463.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MATNEGPKLLWNPENVRDVADALGITLSEEPLRLLAQDVEYRIGQVIVESLRFMRAANRTTLTVQDVSLALRVLDVEPLYGYESTRPLRYGEASLGPGQPLFYIDDEEVDFEKVINAPLPKVPRDMTFTAHWLAVEGVQPSIPQNPTTAETSSKDLLPKGPGANPALAALAGNDNVSFRPSVKHVISKELILYFDKIQAAILDDDPDEEKMRLRQAALESVRSDPGLHQLLPYFVNFITNQVTHHLDDLFILRQMMELAEAVVQNPTLFIDPYASALAAPVLTCLMSRKLGKNPSSNDEGALGAGNSIDSTLREQYSLRELAASLLSMIARKYGASNALLRPKLTRTCLKHFLDPTRPPAVLFGAISGVAASGGPEAVRVLVLPNLKTFDSAVLQPLREKAGPVAELEYEMLVGGIVKAVQSIVGDQAALGALTNGINGADLTREGEQVIEFLGPIVGQRIAQLRNHTLNRSILEVRHLE

Entity 6 polymer

description	Transcription initiation factor TFIID subunit 10
formula_weight	21417.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MATNQSIDNSVSQPAAPTASANGTSQPAGETTSMFPGIPSASVPEPKLPTRKDASLREFLNKMDDYAPIIPDAVTNYYMTRAGLPPPPQTDIRLARLLALATQKFIADIAADAYQYSRIRASNTNANNPMGSLGAAAGFPIPGQPSNQPGGKEQGRGGPLGIQRPGYGGGGQGGSQNRTVLTMEDLGMAVSEFGVNVKRSEFYR

Entity 7 polymer

description	Putative transcriptional coactivator HFI1 protein
formula_weight	52133.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MVDINPAALSRPSIGLSTPSFPGKSGSINVSVPSSASASASASSAHSKPQKTSLVPPRIDLEPIYTALKAAIGAEQWPVYKETLTNFLIGRLNQAELSERIDPILASQDGQKEHLHNQLIAAIYANVTREMPDPGLAPWVSANDKPTTAQTKPVTGDANERRLKGEVMQLPARDRRRIKELAHNDFDPYDALANVLMEHARAKPPKIAEPPASAGGLKMNFDLEIRKRYAQPLAVESGEFPDTSNIESRMLPFCYEAGLSSGHAPDAAQFMSIATETFIKEVMSAIFSRTRSNGPGDSGSAGFGLGSGWIQTHRYRKQLAKEEEAFQRGEISRDKMGLLPVEAKAASERGPLGMADVRLALEMGDCGLAGFPVIVKSVIYGWREGELENWEDYTYVDPSRPDGIAIPSRGDGDVEMGGVGVNGVVKGEPEPQQQPLANGVHDVDAMDIDGVSVAGGAANEIWWEGAEPETSDLLNAVLDSCLAVN

Entity 8 polymer

description	Transcription initiation factor TFIID subunit 12
formula_weight	83091.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

MNQTPAQGQGQGQPGQGMANRPPNAPSAANVAAPGGAPRQQGTPMYRPEMMRNIPLLSDEEKTKYERGLQQLWLMHDNTAPGSAENIEAKKKIAEFGRVLLTKLQQRRQQQQLQQQRQQQQQQQQQQQQQQQQQQQVQQQMQQQAQQPQTQPQQGQPQQQLQQAQVQQQVQQQQQIPQQQQQAPQQQQQQQQPQQLGQPGQQVQMMPQNQQPQVAQNVQPVAPTTVPQQQPAPATQTAPNQMGAPNSAAAQLRSLPAHIVSHVKDVTFLAPNNVVDKAGWIDQLKLQYAQKLFVMDSAGRQIKQIAASLADQSLPPEERKKLEEKKQTLEKQYNDAISFANTVRKQYMQKPAQNGAAVQNAANVARPQSAQGASAMTQPGAGVGNGTPVAAPVNPMQSSAAAINTAIETAKKQQMAAGRMAGAVNAMAAQVQSPATPVQAQVSPATQVHATQQSVPQQPQQIQQAQPTQQPQAQVKIEPGTAPHPAPLNTTMAGPTGVPSAAAPAQNAARMQTPTSATPTSANPNIRPLTHAAAMNLASQQRPGMPAVPTAASGAAPGTPMGIMGAAQQQQQQQPGHSHAHPPQPTQAPPPHSTNPKLPIPKVLHDKAIQMPQPVPNIGGAGSGRPTYTSGVMNQPALPKTPAFQLEGEGERVLNKKKLDELVRQVCGGTAEGQDGNMLTPEVEESVLNMADAFVDNVLHQACRNAKERGSKVLEIRDIQLVLERVYNIRIPGYASEELRTVRKVQPNSNWIKKMSAVQAAKVVPGKGDI

Entity 9 polymer

description	Putative transcriptional activator protein
formula_weight	150297.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

MSIANGNHPWPSPGGPFTNGGPPRTPSAALDARPHDASQTTSLSLMPEASSATDINSDDIDHRRALFADLFRRADERLNLLFDERGEYNLSAIESFKRPPSPPAPSLLPPVTDHTPIQEPPRKRAKRVIDEDDYGDDDEEDEDDKPVDKKPPQQTSQLSNNVLLSPSKTSESPAHSSPSPEKQALEKPPETSQQQLGQGQQQPKSTEDARKELEQARIATEEIAKRSFHTLFYTLEHDRTAMLEQQQLEESEKQLQAEMDKAGSGNAQQNQPGHGSLSSANLGASSLTLKHLIARIDQKRERVRASDAELRSLMNEVRKNRSKWASEENIGQEELYEALEKVLSELKAHTEYSTPFLQRVSKREAPDYYTFIKQPMDLGTMTKKLKSLQYKSKAEFVYDLNLIWDNCLKYNQDMNHPLRRMANGMRKEADKLIPLIPDITIRSRAEVEAEERRKQNGGVDDDAGDDSDDEPIMSSRGRVAGTKGTSNKSRKAPKEGTPAAGDQKPVVQVNGVQVKGQREGSEAVDGSNGLGTPPVGGSATPAPGLNGHGSSQNADAMDVDGPSINGMALVGEEAAEQTYEDEAYKIWKQVTKKDRALIAKERYQLFANNKLNVEEPALLRTKAGMRRFLKSRREAEALGLIKTAYSDSSVTSSAGAKDGVAPKPNETLAEGMEEEADRAVPSYYEPQTIIPDIDPKLQWVEDGEGQVINQFEDMLQLVPPGHFTAPSSRLTRRIDANIRQMQETRKLCSKIGVIKQMQIQTHPFVEADIEPHYISGEGPVMAGEVCRSALQRSVAKIFYHAGFEELQPSALDCITDIASDYFQKLVRTFNVYREAEKKPATGAAAERGARFVPRFTPEEVILHTLDENGHDIDSLEAYARDEVERLGNKLAQIHERMKGHLADLLRPALAPDAGADGSGAFNDGSEQFVTGDFAEELGEDFFGFRALGLDKELGLDMLSVPLHLLQSRVRSQYQLQNQAGAGSAAADLFEPLPPPEPVTKESIMNEIGLVRNFFLAKLHASGDKPLVEDEDLPPKQRKARPRLGATGKIVSPQKRSPKEQMALAKKKKKLEQQQQQQQAQQQEQGKGDNKKGAAKTVSLSLPQPAAGQQVNGLTLPSLSAPNPSSQGGEVNGESIVVNTSLSDTQQSGDVTTTQGEKDLEMEMEMELEKAAGDEDGMDDGDMVFEAGMMSPESLERGSDYKDHDGDYKDDDDKGLEASENLYFQGELKTAALAQHDEAVDNKFNKEQQNAFYEILHLPNLNEEQRNAFIQSLKDDPSQSANLLAEAKKLNDAQAPKVDNKFNKEQQNAFYEILHLPNLNEEQRNAFIQSLKDDPSQSANLLAEAKKLNGAQAPKVDANFE

Entity 10 polymer

description	SCA7 domain-containing protein
formula_weight	137082.7 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Q

MDSRKDEEATIKVAPAKGTVLASKPHIWGKLKLKKPPVKQIKPGNWKEATLVEDKKKDKDGGAINAASPGPDVNQLDDRARDTFSNGRPLEDVLELLQCKLCRKGISRTAARDHIAKCLQIKKEKAQRKKEAREARERLKEAAREEEARRLEEEGAAKGDDDSDDDDGKEGAGKAGKKTKKTDVAGKKRKAEGELDKGKAKKKKDEPKPKVAKPKGPVDVERQCGVPLPNGQLCARSLTCKSHSMSAKRAVPGRSLPYDMLLAAYQKKNQAKQQKAALDANAPLEDEDDLNAGAVDSDEETAAVMSALANWNPQPVVPQPVFAPLKRQYQLARLHEQLQAATNGGRTNIFKVVGFGAQRLSDGHLGLYDAEDAPGEPDPVGLGSLSRRSSSIVAGEDDTTQQAQIAAVDHESQKEDAPLAEVCKKPCWKPKDRPGSVLDQEYVPMSGRSLSKVTKLKATGRAAANRQPKQSRRAASAIPESSKPLADAPVNTIVSKSSPALPTATPLYAFANLPTTDLRLQPAELAIQEMRKRLIAASSSSQSSISSTGVRAPRGRKRKEDRSMPGIHGSQPMENIHRATDGVRQTPENMAPTPKESPSDSTVEMRVLELGQLLAQEDSLAKSSPVLPNTPVVSLLGTSQNGATNGLKQGVQHIQRQMATKPTSVSRAISHSPMSSRPLFSAPSPPMMSHSLSPLTRAATPKALSSSPLVMSMLLPQQPPSHPFVSLPSGSTLSQAMQQSPIMTSMSKSGLTPAATRQPSPGVMPHSPPPRQGPGRPPKPRPADPVSPVNPTRSPNLPNASYLTTLGDLSTGMQPPQLPHMPQQQVPRVKLNQMRNQALASTFSPRPSYLPSQRLDPIREQAIKRAAERAAGLRMAQAQRQPQMQVHMNVQAQRTPQLQARTSPPTASPAETQGQMLSARAQAEDQGQNRLRMGQPQANTQLMRIDGPGMAAGMRQPIGNSQMDTMQPQRQVMNTPVVPAPQSSSPPSAERSSSQPQPVRDQIDSASVQAEAAQDETMNLDNDEMDDILREVKAQAEREAERQMAALSRTRPQAQQQAQNLRSTQNQSQMHALSPVASESSSPSLVMSASLPGLNEVNVRATVAAAAKKVAGSISPVANISSAATALSSPLDCRPYTTTSIPRPRLATTAPVPLMGATGPPAASGTTQNIGSFHVQQHRQRRQQQQLLQQHAQQHQQRLQQAAVHNNQQPFRFTYPAESMAAAVAIAGAHNLRPVVPLPPQAYLLSASQGGGRSGSRGSNIRNGSQARTQEQG

Entity 11 polymer

description	Putative transcription initiation factor
formula_weight	28834.3 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MSAATTAPQTNGILPSTTASGAQTISNTPQPSTSQPAPSATPAQSQTPATTQPQQPTSTTTPSPRPRDARTLELLLTAQGVTSFEPRVSQLLLDFAYRHTAAVLSDALHLSADPYISHAGARPSASSGAAPVNVGEASITANAVALAISSRLGYQFRGGGGGYYGGGGGGASKDWMLELARERNKVALPRVLPSEWGVRLPGERFVLSGVSWGLKDVWAGQEGESEEESEPEEQGDKMEVDENGKNGEAEDGVEVEGGTMEDVFGDEGLEDEEMGEA

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.60 Å
resolution_method	—
num_particles	1734991

fit	/app/data/saxs_computation/yo/9yoq/9yoq.fit
pddf	/app/data/pr_computation/yo/9yoq/9yoq.pr.out
profile	/app/data/saxs_computation/yo/9yoq/9yoq.dat
