9yxd

Crystal structure of recombinant human follicle stimulating hormone in complex with an anti-FSH alpha Fab

Method: X-RAY DIFFRACTION D_max: 123.5 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein hormones alpha chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 25–116	Not recorded	Follitropin subunit beta × 1 （P01225） Fab light chain × 1 Fab heavy chain × 1 Ig-like domain-containing protein × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.05 M Calcium acetate, 0.1 M Bis-Tris pH 7, 30% v/v PEG 550 MME	Resolution 2.29 Å R-free 0.235

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9YXD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DZ7 Solution structure of the a-subunit of human chorionic gonadotropin [modeled without carbohydrate residues] Deposited 2000-02-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–116（92 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.1；328 K；Ionic strength (raw mmCIF value) 100 NMR sample composition 90% WATER/10% D2O	Resolution not provided
1E9J SOLUTION STRUCTURE OF THE A-SUBUNIT OF HUMAN CHORIONIC GONADOTROPIN [INCLUDING A SINGLE GLCNAC RESIDUE AT ASN52 AND ASN78] Deposited 2000-10-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	SOLUTION NMR NMR measurement conditions pH 5.1；328 K；Ionic strength (raw mmCIF value) 100	Resolution not provided
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–116（92 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 25–116（92 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 25–116（92 aa） Chain C 25–116（92 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1HCN STRUCTURE OF HUMAN CHORIONIC GONADOTROPIN AT 2.6 ANGSTROMS RESOLUTION FROM MAD ANALYSIS OF THE SELENOMETHIONYL PROTEIN Deposited 1994-07-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1HCN STRUCTURE OF HUMAN CHORIONIC GONADOTROPIN AT 2.6 ANGSTROMS RESOLUTION FROM MAD ANALYSIS OF THE SELENOMETHIONYL PROTEIN Deposited 1994-07-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.60 Å
1HD4 SOLUTION STRUCTURE OF THE A-SUBUNIT OF HUMAN CHORIONIC GONADOTROPIN [MODELED WITH DIANTENNARY GLYCAN AT ASN78] Deposited 2000-11-07	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–116（92 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.1；328 K；Ionic strength (raw mmCIF value) 100	Resolution not provided
1HRP CRYSTAL STRUCTURE OF HUMAN CHORIONIC GONADOTROPIN Deposited 1994-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.314
1HRP CRYSTAL STRUCTURE OF HUMAN CHORIONIC GONADOTROPIN Deposited 1994-08-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.314
1QFW TERNARY COMPLEX OF HUMAN CHORIONIC GONADOTROPIN WITH FV ANTI ALPHA SUBUNIT AND FV ANTI BETA SUBUNIT Deposited 1999-04-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；1.8 M ammonium Sulfate, 100 mM tris/HCl pH 8.0, protein concentration 3 mg/ml	Resolution 3.50 Å R-free 0.310
1XWD Crystal Structure of Human Follicle Stimulating Hormone Complexed with its Receptor Deposited 2004-10-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；PEG 3350, lithium sulfate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.92 Å R-free 0.259
1XWD Crystal Structure of Human Follicle Stimulating Hormone Complexed with its Receptor Deposited 2004-10-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；PEG 3350, lithium sulfate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.92 Å R-free 0.259
7FIG luteinizing hormone/choriogonadotropin receptor(S277I)-chorionic gonadotropin-Gs complex Deposited 2021-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain X 1–116（116 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7FIH luteinizing hormone/choriogonadotropin receptor(S277I)-chorionic gonadotropin-Gs-Org43553 complex Deposited 2021-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain X 2–116（115 aa）	Not recorded	55Z 5-azanyl-N-tert-butyl-2-methylsulfanyl-4-[3-(2-morpholin-4-ylethanoylamino)phenyl]thieno[2,3-d]pyrimidine-6-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
7FII luteinizing hormone/choriogonadotropin receptor-chorionic gonadotropin-Gs complex Deposited 2021-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain X 1–116（116 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
7T9I Native human TSH bound to human Thyrotropin receptor in complex with miniGs399 (composite structure) Deposited 2021-12-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
7UTZ Human thyrotropin analog TR1402 bound to human Thyrotropin receptor in complex with miniGs399 (composite structure) Deposited 2022-04-28	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 25–116（92 aa）	Mutation：Q13R, E14R, P16R, Q20R	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 Z41 (2S)-3-hydroxypropane-1,2-diyl dihexadecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
7XW5 TSHR-thyroid stimulating hormone-Gs-ML109 complex Deposited 2022-05-26	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain X 25–116（92 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 HOI ~{N}-[4-[[2-methoxy-5-[(2~{S})-5-oxidanyl-4-oxidanylidene-3-(phenylmethyl)-1,2-dihydroquinazolin-2-yl]phenyl]methoxy]phenyl]ethanamide × 1 CLR CHOLESTEROL × 14 PLM PALMITIC ACID × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.96 Å
8I2G FSHR-Follicle stimulating hormone-compound 716340-Gs complex Deposited 2023-01-14	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain X 25–116（92 aa）	Mutation：F17L	CLR CHOLESTEROL × 13 PLM PALMITIC ACID × 3 MYR MYRISTIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 O6F N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.80 Å

15 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GLHA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–92； UniProt 25–116

Follitropin subunit beta

Homo sapiens

UniProt P01225

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 19–129	Not recorded	Glycoprotein hormones alpha chain × 1 （P01215） Fab light chain × 1 Fab heavy chain × 1 Ig-like domain-containing protein × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；0.05 M Calcium acetate, 0.1 M Bis-Tris pH 7, 30% v/v PEG 550 MME	Resolution 2.29 Å R-free 0.235

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9YXD	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 19–129（111 aa）	Mutation：T26A	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 19–129（111 aa）	Mutation：T26A	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1FL7 HUMAN FOLLICLE STIMULATING HORMONE Deposited 2000-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 19–129（111 aa） Chain D 19–129（111 aa）	Mutation：T26A Mutation：T26A	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；283 K；0.9 - 1.2 M ammonium sulfate, 0.1 M glycine, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 10K	Resolution 3.00 Å R-free 0.294
1XWD Crystal Structure of Human Follicle Stimulating Hormone Complexed with its Receptor Deposited 2004-10-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；PEG 3350, lithium sulfate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.92 Å R-free 0.259
1XWD Crystal Structure of Human Follicle Stimulating Hormone Complexed with its Receptor Deposited 2004-10-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；PEG 3350, lithium sulfate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.92 Å R-free 0.259
4AY9 Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor Deposited 2012-06-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1M HEPES PH 7.5, 10% (V/V) ISOPROPANOL AND 20% (W/V) POLYETHYLENE GLYCOL 4000	Resolution 2.50 Å R-free 0.269
4AY9 Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor Deposited 2012-06-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1M HEPES PH 7.5, 10% (V/V) ISOPROPANOL AND 20% (W/V) POLYETHYLENE GLYCOL 4000	Resolution 2.50 Å R-free 0.269
4AY9 Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor Deposited 2012-06-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；0.1M HEPES PH 7.5, 10% (V/V) ISOPROPANOL AND 20% (W/V) POLYETHYLENE GLYCOL 4000	Resolution 2.50 Å R-free 0.269
4MQW Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor (P31) Deposited 2013-09-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；The FSH-FSHRED complex was concentrated by ultrafiltration to about 10 mg/ml in HBS. 0.1M imidazole and 20% Jeffamine M-600, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.237
4MQW Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor (P31) Deposited 2013-09-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；The FSH-FSHRED complex was concentrated by ultrafiltration to about 10 mg/ml in HBS. 0.1M imidazole and 20% Jeffamine M-600, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.237
4MQW Structure of follicle-stimulating hormone in complex with the entire ectodomain of its receptor (P31) Deposited 2013-09-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 19–129（111 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 JEF O-(O-(2-AMINOPROPYL)-O'-(2-METHOXYETHYL)POLYPROPYLENE GLYCOL 500) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；The FSH-FSHRED complex was concentrated by ultrafiltration to about 10 mg/ml in HBS. 0.1M imidazole and 20% Jeffamine M-600, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.90 Å R-free 0.237
8I2G FSHR-Follicle stimulating hormone-compound 716340-Gs complex Deposited 2023-01-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric	Chain Y 19–127（109 aa）	Not recorded	CLR CHOLESTEROL × 13 PLM PALMITIC ACID × 3 MYR MYRISTIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 O6F N-tert-butyl-N-ethyl-8-methoxy-9-propan-2-yloxy-1-thiophen-2-yl-5,6-dihydroimidazo[5,1-a]isoquinoline-3-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.80 Å

5 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FSHB_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–111； UniProt 19–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9yxd
Deposition date deposition_date	2025-10-27
最后修订 last_revision	2026-03-11
Structure title title	Crystal structure of recombinant human follicle stimulating hormone in complex with an anti-FSH alpha Fab
Keywords keywords	Gonadotropin, Glycoprotein hormone, cystine knot cytokine, GPCR signaling, HORMONE; HORMONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.34 Å
Radius of gyration Rg (electron density) rg_electron	36.42 Å
Forward intensity I(0) i0	113027000.00
Molecular weight molecular_weight	82735.0 kDa
Excluded volume excluded_volume	102400 Å³
Envelope volume envelope_volume	138680 Å³
Hydration-shell volume shell_volume	34751 Å³
Envelope diameter envelope_diameter	132.5 Å
Shell Rg shell_rg	39.26 Å
Envelope Rg envelope_rg	35.95 Å
Shape Rg shape_rg	36.35 Å
Total Rg total_rg	36.82 Å
Total atoms total_atoms	5827
Residues n_residues	743
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

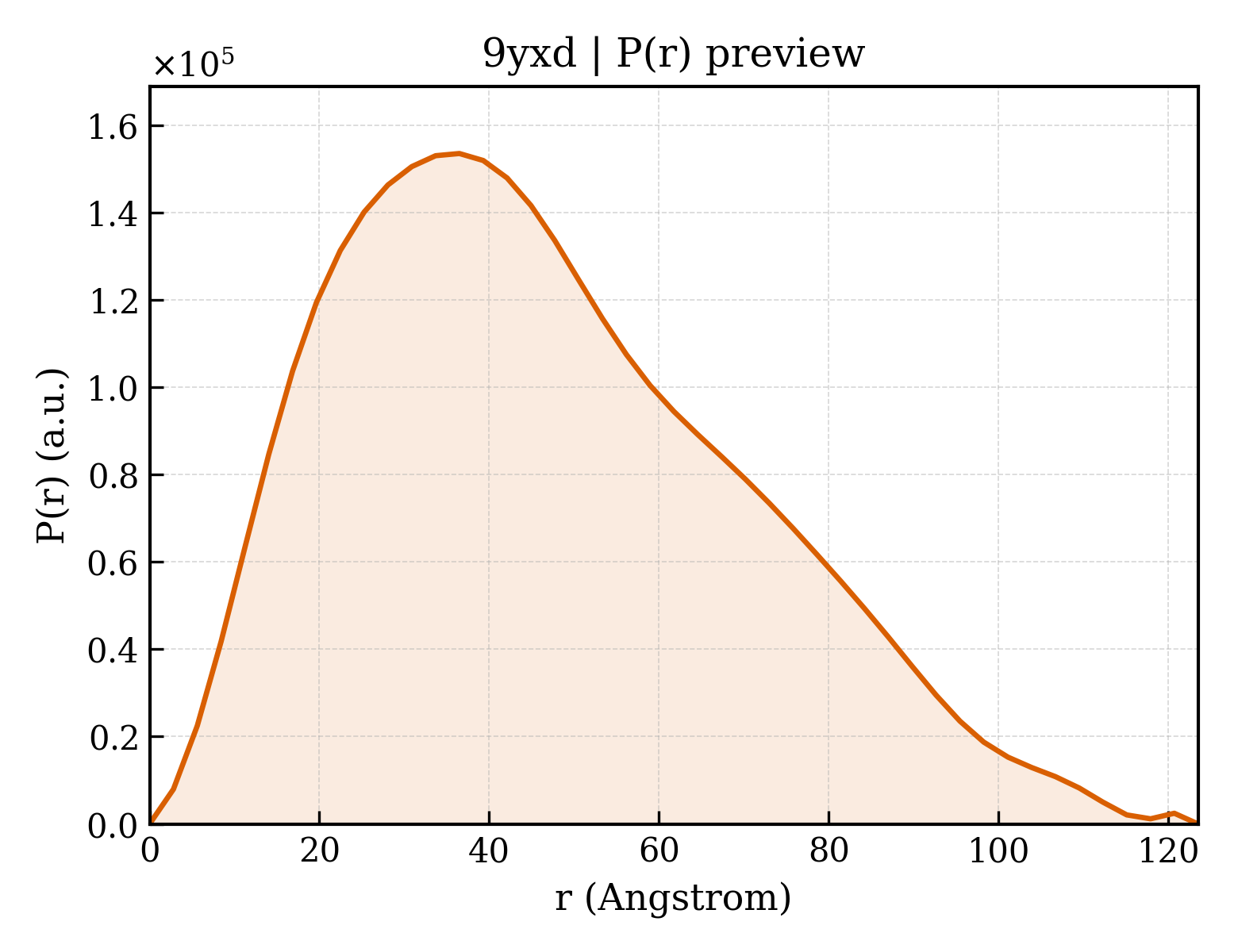

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	123.5 Å
Rg (real space) rg_real	36.68 Å
Rg uncertainty (real space) rg_real_error	1.48 Å
I(0) (real space) i0_real	1.1300e+08
I(0) uncertainty (real space) i0_real_error	2.2250e+06
Rg (reciprocal space) rg_reciprocal	36.47 Å
I(0) (reciprocal space) i0_reciprocal	113000000.0000
Solution quality estimate total_estimate	0.6044
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.5 Å
Skewness Skewness skewness	0.503
Kurtosis Kurtosis kurtosis	-0.369
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7501000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.817; Stabil: 1.000; Sysdev: 0.028; Positv: 1.000; Valcen: 0.737; Smooth: 0.583

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Glycoprotein hormones alpha chain
Molecular weight formula_weight	10217.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6146

APDVQDCPECTLQENPFFSQPGAPILQCMGCCFSRAYPTPLRSKKTMLVQKNVTSESTCCVAKSYNRVTVMGGFKVENHTACHCSTCYYHKS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Follitropin subunit beta
Molecular weight formula_weight	12500.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

NSCELTNITIAIEKEECRFCISINTTWCAGYCYTRDLVYKDPARPKIQKTCTFKELVYETVRVPGCAHHADSLYTYPVATQCHCGKCDSDSTDCTVRGLGPSYCSFGEMKE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Fab light chain
Molecular weight formula_weight	24264.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DIELTQSPDSLSVSLGQRATISCRASESVDSYGNSFMQWYQQKPGQPPKLLIYRASNLESGIPARFSGTGSRTDFTLTINPVEADDVATYYCQQSDEYPYMYTFGGGTKLEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Fab heavy chain
Molecular weight formula_weight	24301.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

QVQLQQSGAELVKPGASVKLSCKASDYTFTSYWMHWVKQRPGQGLEWIGEINPTNGRTYYNEKFKSKATLTVDKSSSTAYMQLSSLTSEDSAVYYCARRYGNSFDYWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Ig-like domain-containing protein
Molecular weight formula_weight	14075.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

HHHHHHQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

来源 Source

来源生物 organism	Lama glama
NCBI Class编号 ncbi_taxonomy_id	9844
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	209.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▶

8. Citations (1)

▶

Unit-cell length a length_a	76.010 Å
Unit-cell length b length_b	101.103 Å
Unit-cell length c length_c	161.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.290 Å
Low-resolution limit resolution_low	29.850 Å
R factor r_factor	0.2030
R_work r_work	0.2013
R_free r_free	0.2351

fit	/app/data/saxs_computation/yx/9yxd/9yxd.fit
pddf	/app/data/pr_computation/yx/9yxd/9yxd.pr.out
profile	/app/data/saxs_computation/yx/9yxd/9yxd.dat

Crystal structure of recombinant human follicle stimulating hormone in complex with an anti-FSH alpha Fab

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein hormones alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

Follitropin subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 branched

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
