Gated state sheep connexin-46 in DMPC nanodiscs at neutral pH

Method: ELECTRON MICROSCOPY D_max: 155.7 Å Quality: GOOD

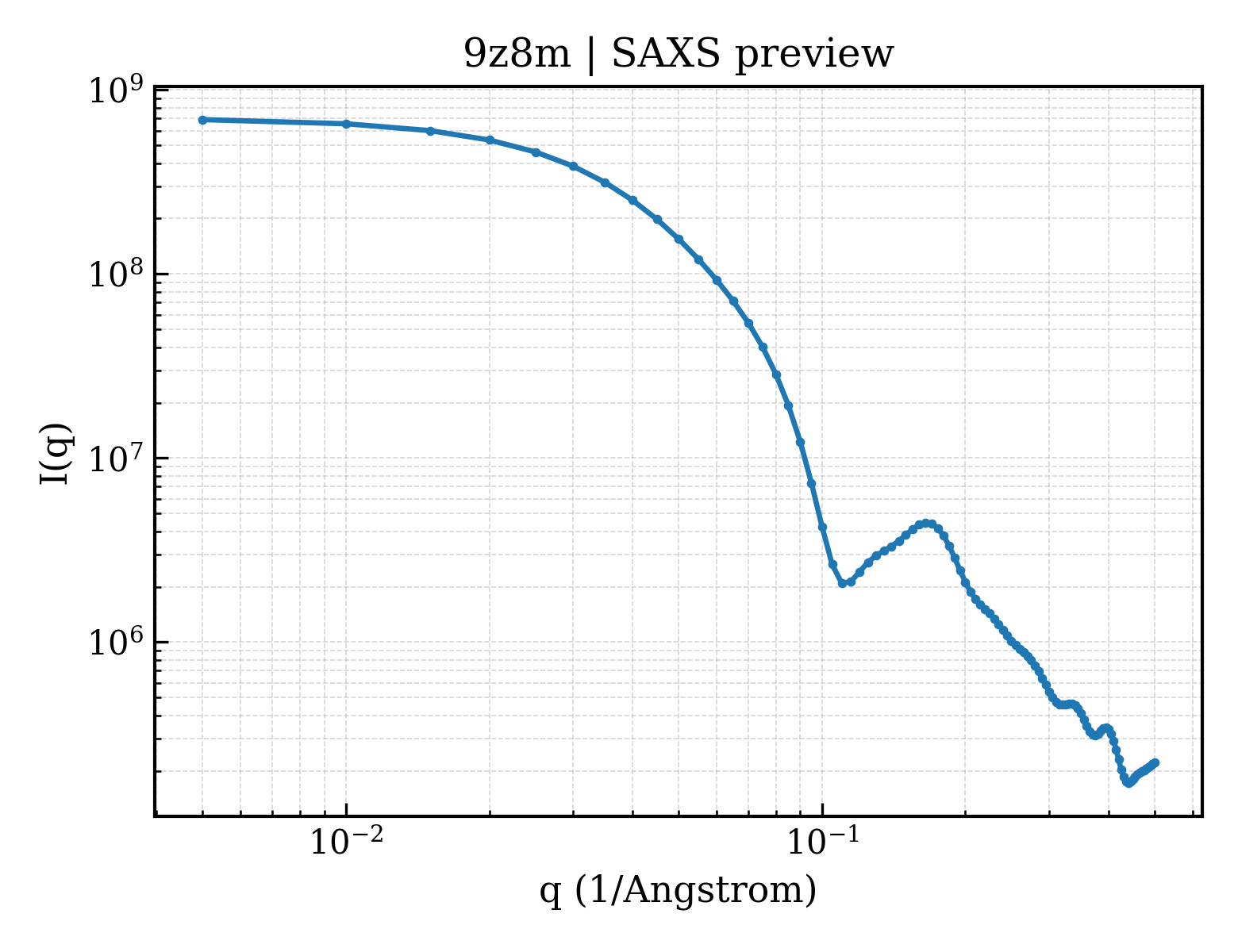

SAXS Profile

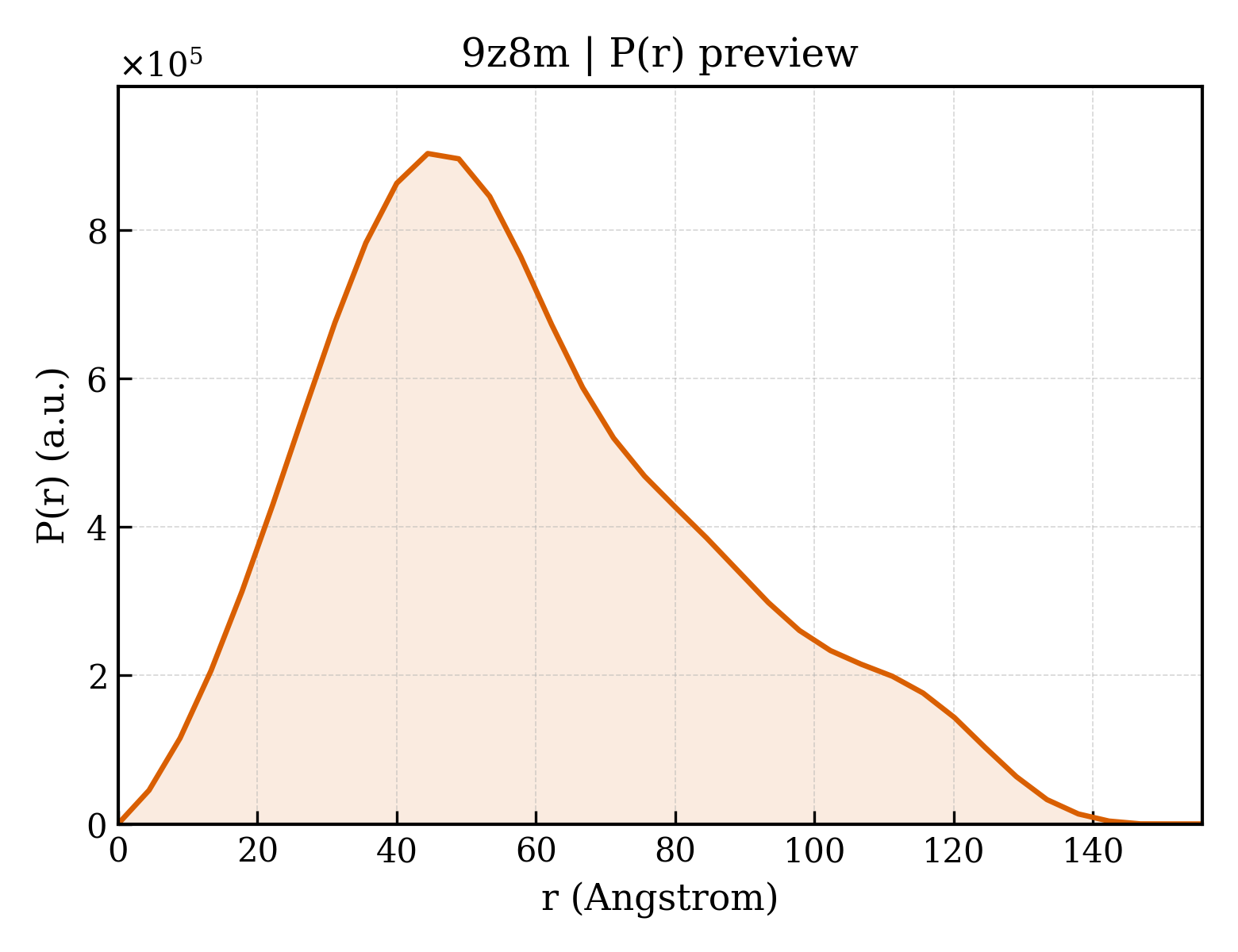

P(r) Distribution

▼

1. Structure Basics

entry_id	9z8m
deposition_date	2025-11-18
title	Gated state sheep connexin-46 in DMPC nanodiscs at neutral pH
keywords	connexin, gap junction, cryo-EM, pH regulation, lipid gating, large-pore channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.16 Å
rg_electron	46.40 Å
i0	700446000.00
molecular_weight	278960.0 kDa
excluded_volume	373560 Å³
envelope_volume	488400 Å³
shell_volume	86116 Å³
envelope_diameter	152.3 Å
shell_rg	52.36 Å
envelope_rg	46.30 Å
shape_rg	46.44 Å
total_rg	46.51 Å
total_atoms	40740
n_residues	2208
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	155.7 Å
rg_real	45.47 Å
rg_real_error	1.34 Å
i0_real	7.0040e+08
i0_real_error	1.1460e+07
rg_reciprocal	45.16 Å
i0_reciprocal	700200000.0000
total_estimate	0.8138
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	44.5 Å
skewness	0.560
kurtosis	-0.268
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	157500000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.621; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.772

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.700 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.70 Å
resolution_method	—
num_particles	15342

description	Gap junction alpha-3 protein
formula_weight	44033.0 kDa
src_method	nat
entity_count	12

Gated state sheep connexin-46 in DMPC nanodiscs at neutral pH

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L
atom_count	40740

description	1,2-DIMYRISTOYL-RAC-GLYCERO-3-PHOSPHOCHOLINE
formula_weight	677.9 kDa
src_method	syn
entity_count	192

fit	/app/data/saxs_computation/z8/9z8m/9z8m.fit
pddf	/app/data/pr_computation/z8/9z8m/9z8m.pr.out
profile	/app/data/saxs_computation/z8/9z8m/9z8m.dat
