Stable open state sheep connexin-46 in DMPC nanodiscs at low pH

Method: ELECTRON MICROSCOPY D_max: 148.1 Å Quality: GOOD

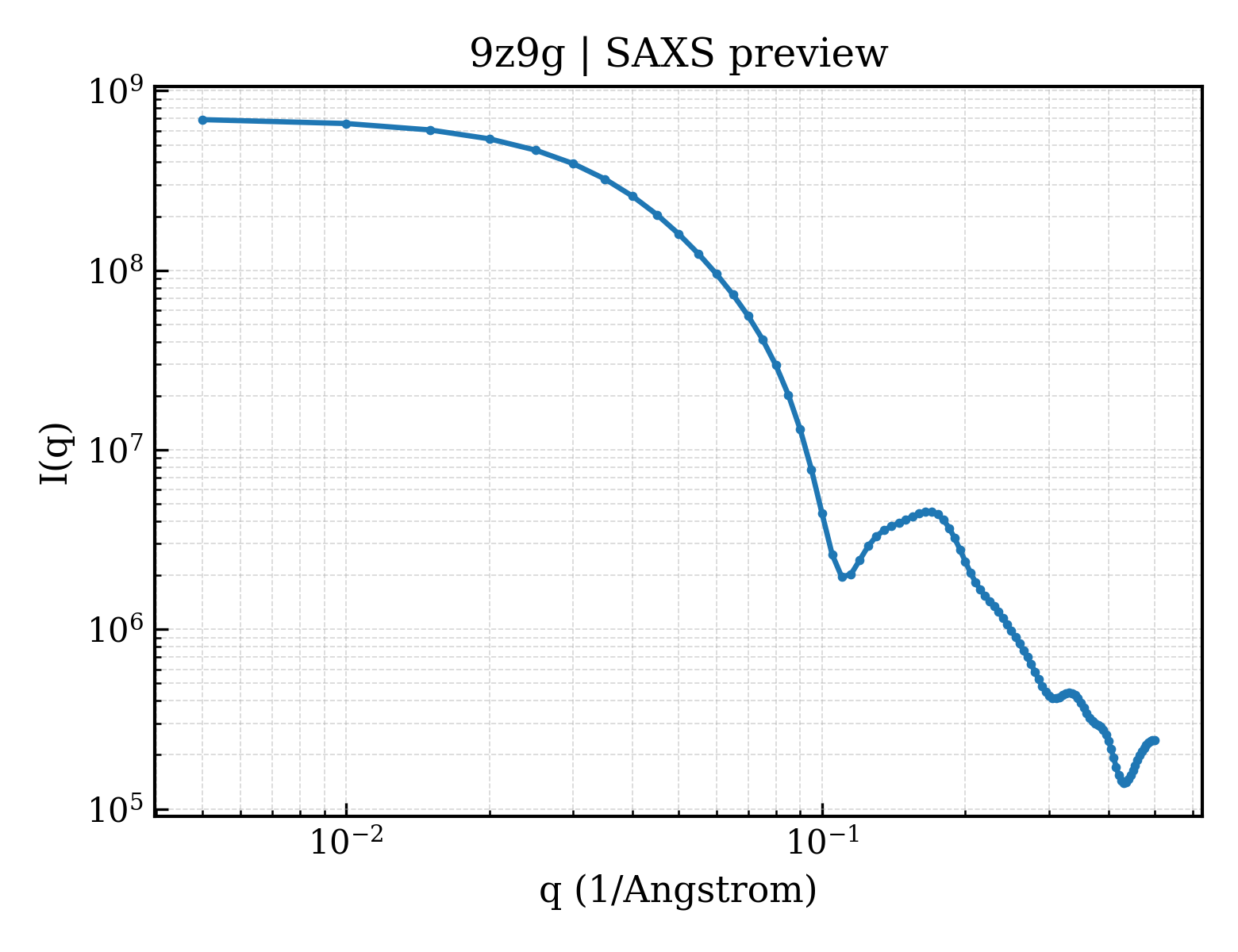

SAXS Profile

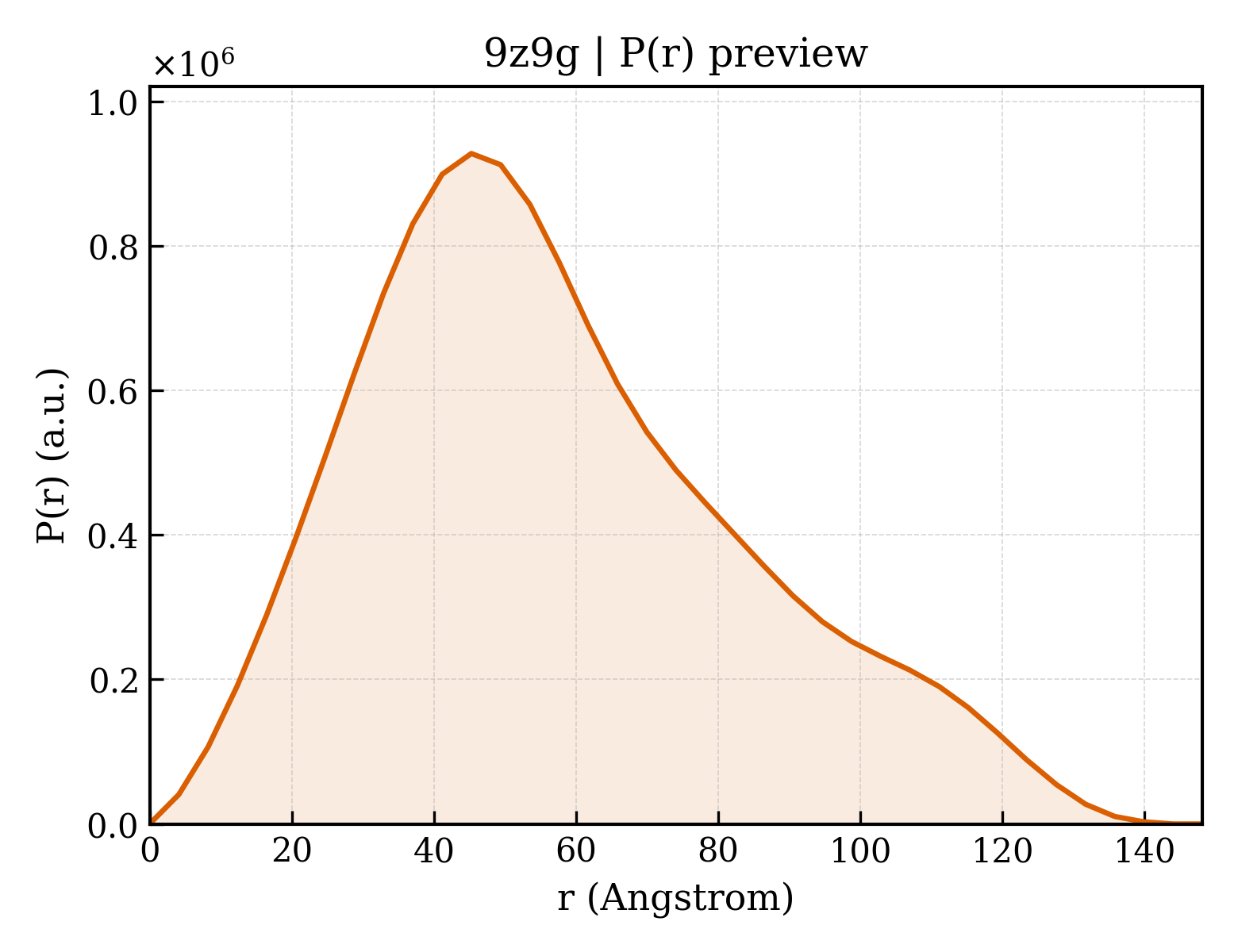

P(r) Distribution

▼

1. Structure Basics

entry_id	9z9g
deposition_date	2025-11-18
title	Stable open state sheep connexin-46 in DMPC nanodiscs at low pH
keywords	connexin, gap junction, cryo-EM, pH regulation, lipid gating, large-pore channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.37 Å
rg_electron	46.08 Å
i0	701992000.00
molecular_weight	280490.0 kDa
excluded_volume	375990 Å³
envelope_volume	479940 Å³
shell_volume	85207 Å³
envelope_diameter	149.1 Å
shell_rg	52.15 Å
envelope_rg	45.88 Å
shape_rg	46.11 Å
total_rg	46.22 Å
total_atoms	41508
n_residues	2196
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	148.1 Å
rg_real	44.63 Å
rg_real_error	1.34 Å
i0_real	7.0200e+08
i0_real_error	1.3850e+07
rg_reciprocal	44.38 Å
i0_reciprocal	701800000.0000
total_estimate	0.8124
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	45.3 Å
skewness	0.543
kurtosis	-0.269
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	135400000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.478

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.50 Å
resolution_method	—
num_particles	42656

description	Gap junction alpha-3 protein
formula_weight	44033.0 kDa
src_method	nat
entity_count	12

Stable open state sheep connexin-46 in DMPC nanodiscs at low pH

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (3)

Entity 1 polymer

Polymer

Entity 2 non-polymer

Entity 3 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L
atom_count	42252

description	1,2-DIMYRISTOYL-RAC-GLYCERO-3-PHOSPHOCHOLINE
formula_weight	677.9 kDa
src_method	syn
entity_count	180

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	744
