9zbv
Human TTR-C10A at pH 7.4
SAXS Profile

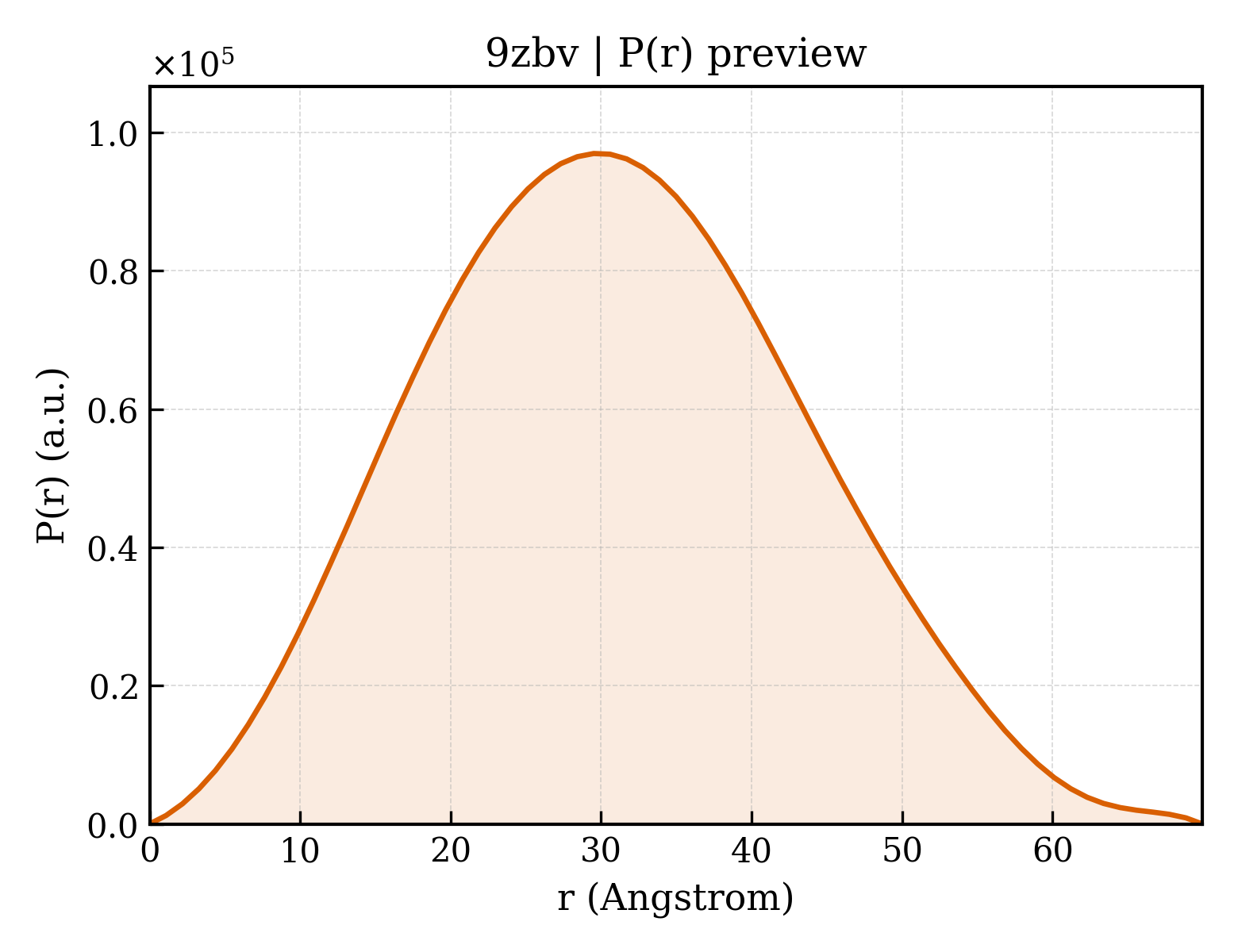

P(r) Distribution
1. Structure Basics
| entry_id | 9zbv |
| deposition_date | 2025-11-21 |
| title | Human TTR-C10A at pH 7.4 |
| keywords | thyroxine transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.74 Å |
| rg_electron | 22.23 Å |
| i0 | 41380800.00 |
| molecular_weight | 50444.0 kDa |
| excluded_volume | 63458 ų |
| envelope_volume | 77502 ų |
| shell_volume | 28335 ų |
| envelope_diameter | 74.4 Å |
| shell_rg | 29.95 Å |
| envelope_rg | 22.38 Å |
| shape_rg | 22.24 Å |
| total_rg | 23.19 Å |
| total_atoms | 3573 |
| n_residues | 463 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 70.0 Å |
| rg_real | 23.56 Å |
| rg_real_error | 0.10 Å |
| i0_real | 3.9900e+07 |
| i0_real_error | 4.0800e+05 |
| rg_reciprocal | 23.63 Å |
| i0_reciprocal | 41380000.0000 |
| total_estimate | 0.7166 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 29.5 Å |
| skewness | 0.172 |
| kurtosis | -0.425 |
| angular_range | — – 0.3350 Å−1 |
| current_alpha | 8.1250 |
| highest_alpha | 12490000.0000 |
| n_real_points | 65 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.957; Stabil: 0.916; Sysdev: 0.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.727 |
