SAXSdb — 11cj

▼

1. Structure Basics

entry_id	11cj
deposition_date	2026-02-17
title	Structure of human TRPV1 in Apo state
keywords	;Membrane Protein, Ion Channel, TRPV1, Mavatrep, Asivatrep, JNJ-17203212, CAY10448, Small Molecule, Pain, Thermosensing, GDN, Antagonist ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.12 Å
rg_electron	43.29 Å
i0	775199000.00
molecular_weight	251140.0 kDa
excluded_volume	322730 Å³
envelope_volume	441180 Å³
shell_volume	81161 Å³
envelope_diameter	136.6 Å
shell_rg	51.86 Å
envelope_rg	42.21 Å
shape_rg	43.32 Å
total_rg	43.55 Å
total_atoms	17684
n_residues	2124
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	130.8 Å
rg_real	43.77 Å
rg_real_error	0.75 Å
i0_real	7.7520e+08
i0_real_error	1.2910e+07
rg_reciprocal	44.12 Å
i0_reciprocal	775500000.0000
total_estimate	0.8894
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	61.7 Å
skewness	-0.049
kurtosis	-0.520
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	40600000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.833

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Transient receptor potential cation channel subfamily V member 1
formula_weight	124281.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	17684

MKKWSSTDLGAAADPLQKDTCPDPLDGDPNSRPPPAKPQLSTAKSRTRLFGKGDSEEAFPVDCPHEEGELDSCPTITVSPVITIQRPGDGPTGARLLSQDSVAASTEKTLRLYDRRSIFEAVAQNNCQDLESLLLFLQKSKKHLTDNEFKDPETGKTCLLKAMLNLHDGQNTTIPLLLEIARQTDSLKELVNASYTDSYYKGQTALHIAIERRNMALVTLLVENGADVQAAAHGDFFKKTKGRPGFYFGELPLSLAACTNQLGIVKFLLQNSWQTADISARDSVGNTVLHALVEVADNTADNTKFVTSMYNEILILGAKLHPTLKLEELTNKKGMTPLALAAGTGKIGVLAYILQREIQEPECRHLSRKFTEWAYGPVHSSLYDLSCIDTCEKNSVLEVIAYSSSETPNRHDMLLVEPLNRLLQDKWDRFVKRIFYFNFLVYCLYMIIFTMAAYYRPVDGLPPFKMEKTGDYFRVTGEILSVLGGVYFFFRGIQYFLQRRPSMKTLFVDSYSEMLFFLQSLFMLATVVLYFSHLKEYVASMVFSLALGWTNMLYYTRGFQQMGIYAVMIEKMILRDLCRFMFVYIVFLFGFSTAVVTLIEDGKNDSLPSESTSHRWRGPACRPPDSSYNSLYSTCLELFKFTIGMGDLEFTENYDFKAVFIILLLAYVILTYILLLNMLIALMGETVNKIAQESKNIWKLQRAITILDTEKSFLKCMRKAFRSGKLLQVGYTPDGKDDYRWCFRVDEVNWTTWNTNVGIINEDPGNCEGVKRTLSFSLRSSRVSGRHWKNFALVPLLREASARDRQSAQPEEVYLRQFSGSLKPEDAEVFKSPAASGEKGTLEVLFQGPGGSGGSASVIKPEMKIKLRMEGAVNGHKFVIEGEGIGKPYEGTQTLDLTVEEGAPLPFSYDILTPAFQYGNRAFTKYPEDIPDYFKQAFPEGYSWERSMTYEDQGICIATSDITMEGDCFFYEIRFDGTNFPPNGPVMQKKTLKWEPSTEKMYVEDGVLKGDVEMALLLEGGGHYRCDFKTTYKAKKDVRLPDAHEVDHRIEILSHDKDYNKVRLYEHAEARYSGGGSGGGHHHHHHHGGSGGWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	(2R)-3-{[(R)-hydroxy{[(1S,2R,3R,4S,5S,6R)-2,3,4,5,6-pentahydroxycyclohexyl]oxy}phosphoryl]oxy}propane-1,2-diyl dioctadecanoate
formula_weight	867.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
formula_weight	760.1 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

resolution	2.52 Å
resolution_method	—
num_particles	153457

fit	/app/data/saxs_computation/1c/11cj/11cj.fit
pddf	/app/data/pr_computation/1c/11cj/11cj.pr.out
profile	/app/data/saxs_computation/1c/11cj/11cj.dat

Structure of human TRPV1 in Apo state

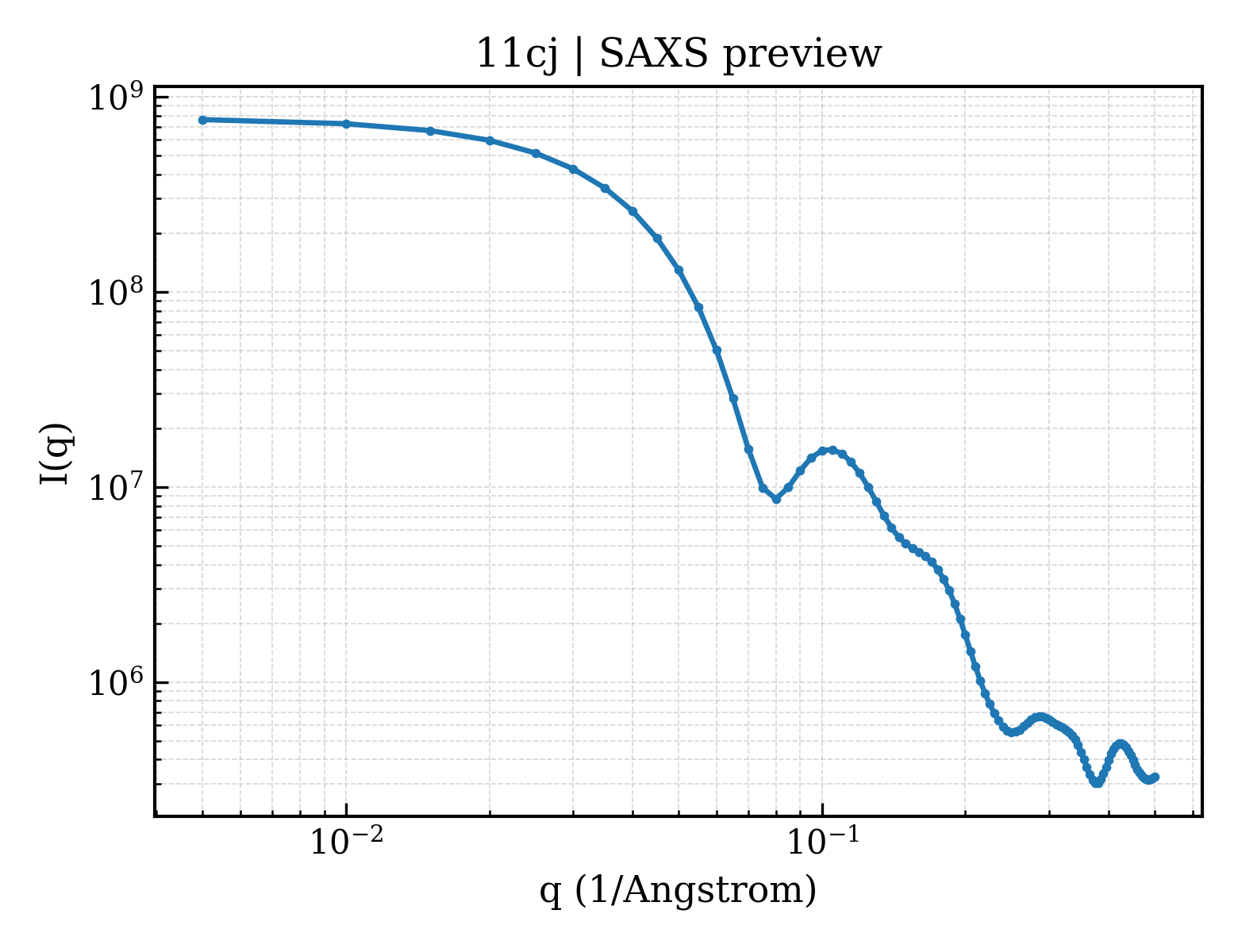

SAXS Profile

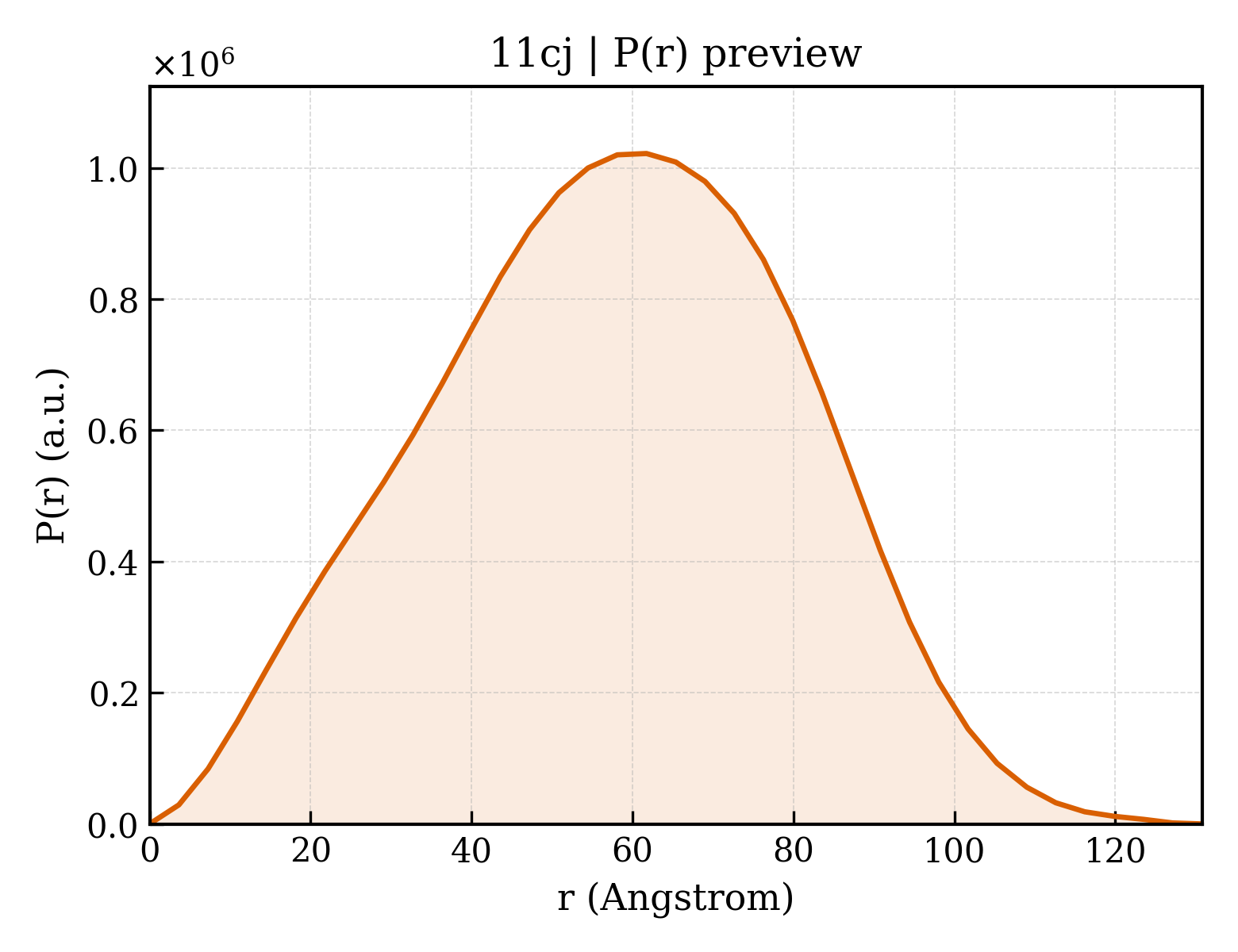

P(r) Distribution
