Structure of human TRPV1 in complex with 6-Iodo-CAP (CAY10448)

Method: ELECTRON MICROSCOPY D_max: 132.3 Å Quality: GOOD

SAXS Profile

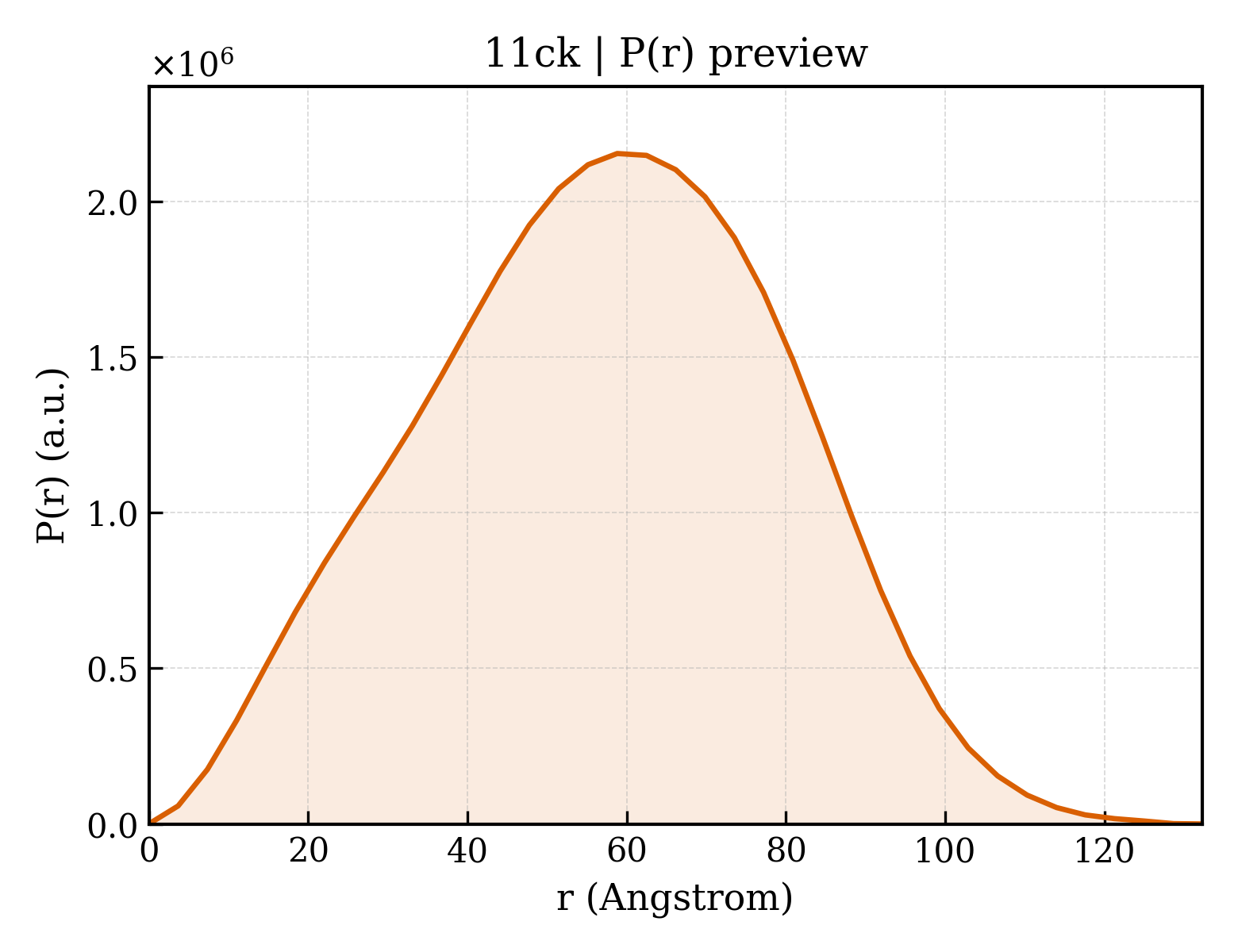

P(r) Distribution

▼

1. Structure Basics

entry_id	11ck
deposition_date	2026-02-17
title	Structure of human TRPV1 in complex with 6-Iodo-CAP (CAY10448)
keywords	;Membrane Protein, Ion Channel, TRPV1, Mavatrep, Asivatrep, JNJ-17203212, CAY10448, Small Molecule, Pain, Thermosensing, GDN, Antagonist ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	43.77 Å
rg_electron	43.12 Å
i0	1612140000.00
molecular_weight	228820.0 kDa
excluded_volume	225490 Å³
envelope_volume	430770 Å³
shell_volume	79798 Å³
envelope_diameter	136.4 Å
shell_rg	51.53 Å
envelope_rg	42.04 Å
shape_rg	43.15 Å
total_rg	43.34 Å
total_atoms	17340
n_residues	2124
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	132.3 Å
rg_real	43.43 Å
rg_real_error	0.84 Å
i0_real	1.6120e+09
i0_real_error	2.5310e+07
rg_reciprocal	43.76 Å
i0_reciprocal	1613000000.0000
total_estimate	0.8891
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	58.8 Å
skewness	-0.035
kurtosis	-0.513
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	47690000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.958; Smooth: 0.890

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Transient receptor potential cation channel subfamily V member 1
formula_weight	124281.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	17340

MKKWSSTDLGAAADPLQKDTCPDPLDGDPNSRPPPAKPQLSTAKSRTRLFGKGDSEEAFPVDCPHEEGELDSCPTITVSPVITIQRPGDGPTGARLLSQDSVAASTEKTLRLYDRRSIFEAVAQNNCQDLESLLLFLQKSKKHLTDNEFKDPETGKTCLLKAMLNLHDGQNTTIPLLLEIARQTDSLKELVNASYTDSYYKGQTALHIAIERRNMALVTLLVENGADVQAAAHGDFFKKTKGRPGFYFGELPLSLAACTNQLGIVKFLLQNSWQTADISARDSVGNTVLHALVEVADNTADNTKFVTSMYNEILILGAKLHPTLKLEELTNKKGMTPLALAAGTGKIGVLAYILQREIQEPECRHLSRKFTEWAYGPVHSSLYDLSCIDTCEKNSVLEVIAYSSSETPNRHDMLLVEPLNRLLQDKWDRFVKRIFYFNFLVYCLYMIIFTMAAYYRPVDGLPPFKMEKTGDYFRVTGEILSVLGGVYFFFRGIQYFLQRRPSMKTLFVDSYSEMLFFLQSLFMLATVVLYFSHLKEYVASMVFSLALGWTNMLYYTRGFQQMGIYAVMIEKMILRDLCRFMFVYIVFLFGFSTAVVTLIEDGKNDSLPSESTSHRWRGPACRPPDSSYNSLYSTCLELFKFTIGMGDLEFTENYDFKAVFIILLLAYVILTYILLLNMLIALMGETVNKIAQESKNIWKLQRAITILDTEKSFLKCMRKAFRSGKLLQVGYTPDGKDDYRWCFRVDEVNWTTWNTNVGIINEDPGNCEGVKRTLSFSLRSSRVSGRHWKNFALVPLLREASARDRQSAQPEEVYLRQFSGSLKPEDAEVFKSPAASGEKGTLEVLFQGPGGSGGSASVIKPEMKIKLRMEGAVNGHKFVIEGEGIGKPYEGTQTLDLTVEEGAPLPFSYDILTPAFQYGNRAFTKYPEDIPDYFKQAFPEGYSWERSMTYEDQGICIATSDITMEGDCFFYEIRFDGTNFPPNGPVMQKKTLKWEPSTEKMYVEDGVLKGDVEMALLLEGGGHYRCDFKTTYKAKKDVRLPDAHEVDHRIEILSHDKDYNKVRLYEHAEARYSGGGSGGGHHHHHHHGGSGGWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	N-[(4-hydroxy-2-iodo-5-methoxyphenyl)methyl]-8-methylnonanamide
formula_weight	433.3 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

resolution	2.90 Å
resolution_method	—
num_particles	75798

fit	/app/data/saxs_computation/1c/11ck/11ck.fit
pddf	/app/data/pr_computation/1c/11ck/11ck.pr.out
profile	/app/data/saxs_computation/1c/11ck/11ck.dat
