121p
STRUKTUR UND GUANOSINTRIPHOSPHAT-HYDROLYSEMECHANISMUS DES C-TERMINAL VERKUERZTEN MENSCHLICHEN KREBSPROTEINS P21-H-RAS

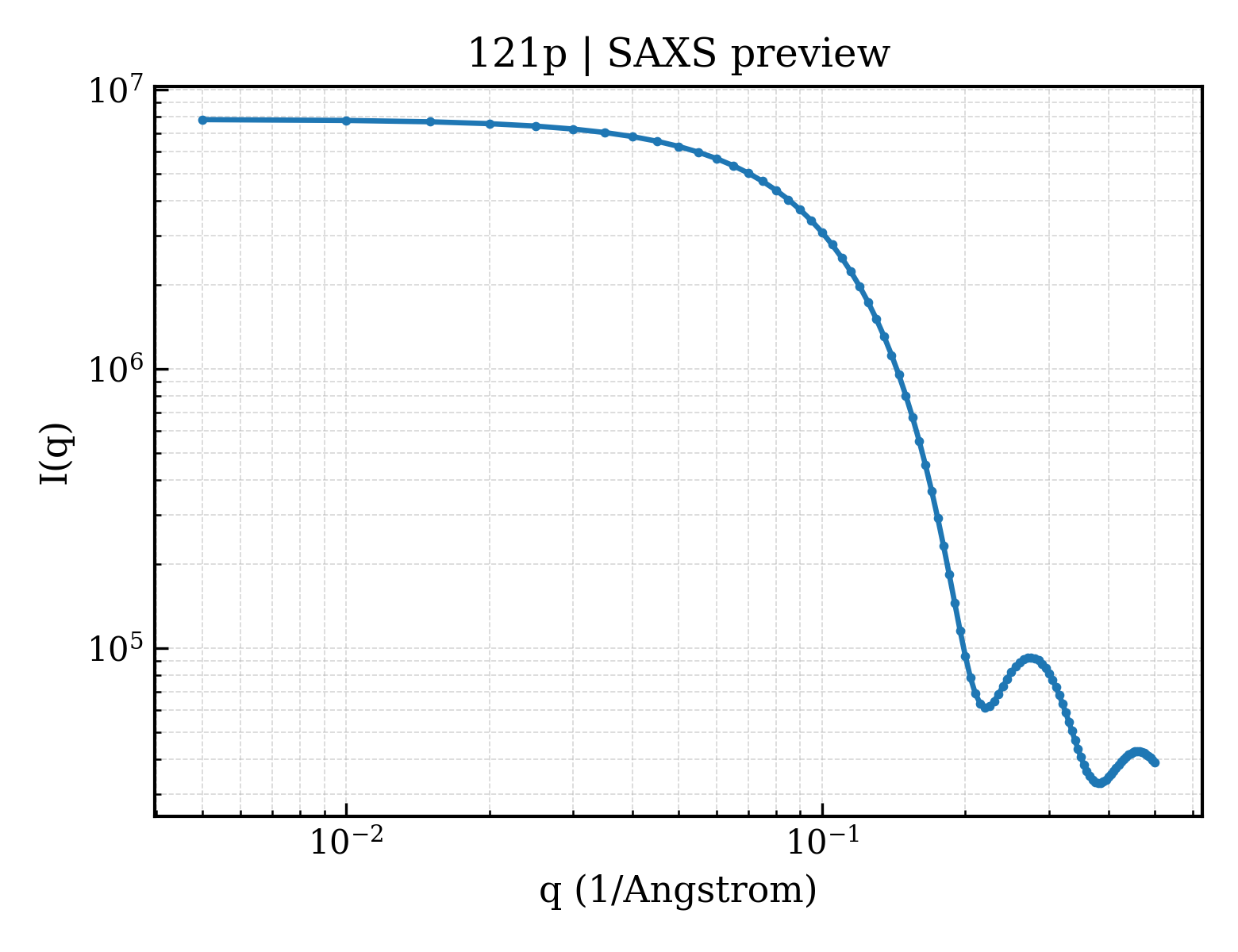

SAXS Profile

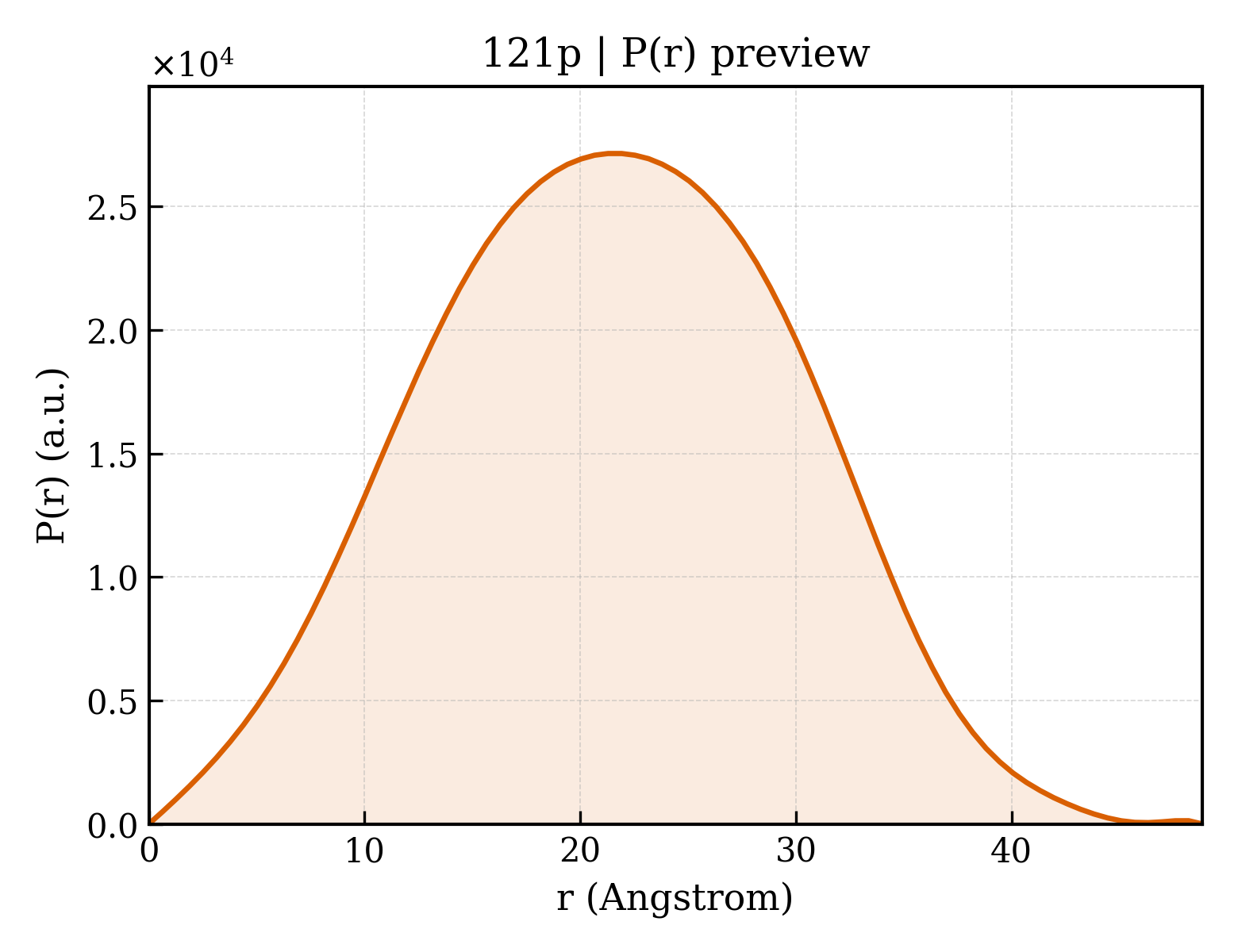

P(r) Distribution
1. Structure Basics
| entry_id | 121p |
| deposition_date | 1991-06-06 |
| title | STRUKTUR UND GUANOSINTRIPHOSPHAT-HYDROLYSEMECHANISMUS DES C-TERMINAL VERKUERZTEN MENSCHLICHEN KREBSPROTEINS P21-H-RAS |
| keywords | ONCOGENE PROTEIN; ONCOGENE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.41 Å |
| rg_electron | 15.02 Å |
| i0 | 7829690.00 |
| molecular_weight | 19376.0 kDa |
| excluded_volume | 23769 ų |
| envelope_volume | 27099 ų |
| shell_volume | 14911 ų |
| envelope_diameter | 48.1 Å |
| shell_rg | 21.30 Å |
| envelope_rg | 15.34 Å |
| shape_rg | 15.02 Å |
| total_rg | 16.09 Å |
| total_atoms | 1355 |
| n_residues | 166 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.8 Å |
| rg_real | 16.25 Å |
| rg_real_error | 0.18 Å |
| i0_real | 7.8300e+06 |
| i0_real_error | 8.8290e+04 |
| rg_reciprocal | 16.27 Å |
| i0_reciprocal | 7830000.0000 |
| total_estimate | 0.9037 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 48.2 Å |
| skewness | 0.016 |
| kurtosis | -0.508 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1465000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.983 |
