1crp
THE SOLUTION STRUCTURE AND DYNAMICS OF RAS P21. GDP DETERMINED BY HETERONUCLEAR THREE AND FOUR DIMENSIONAL NMR SPECTROSCOPY

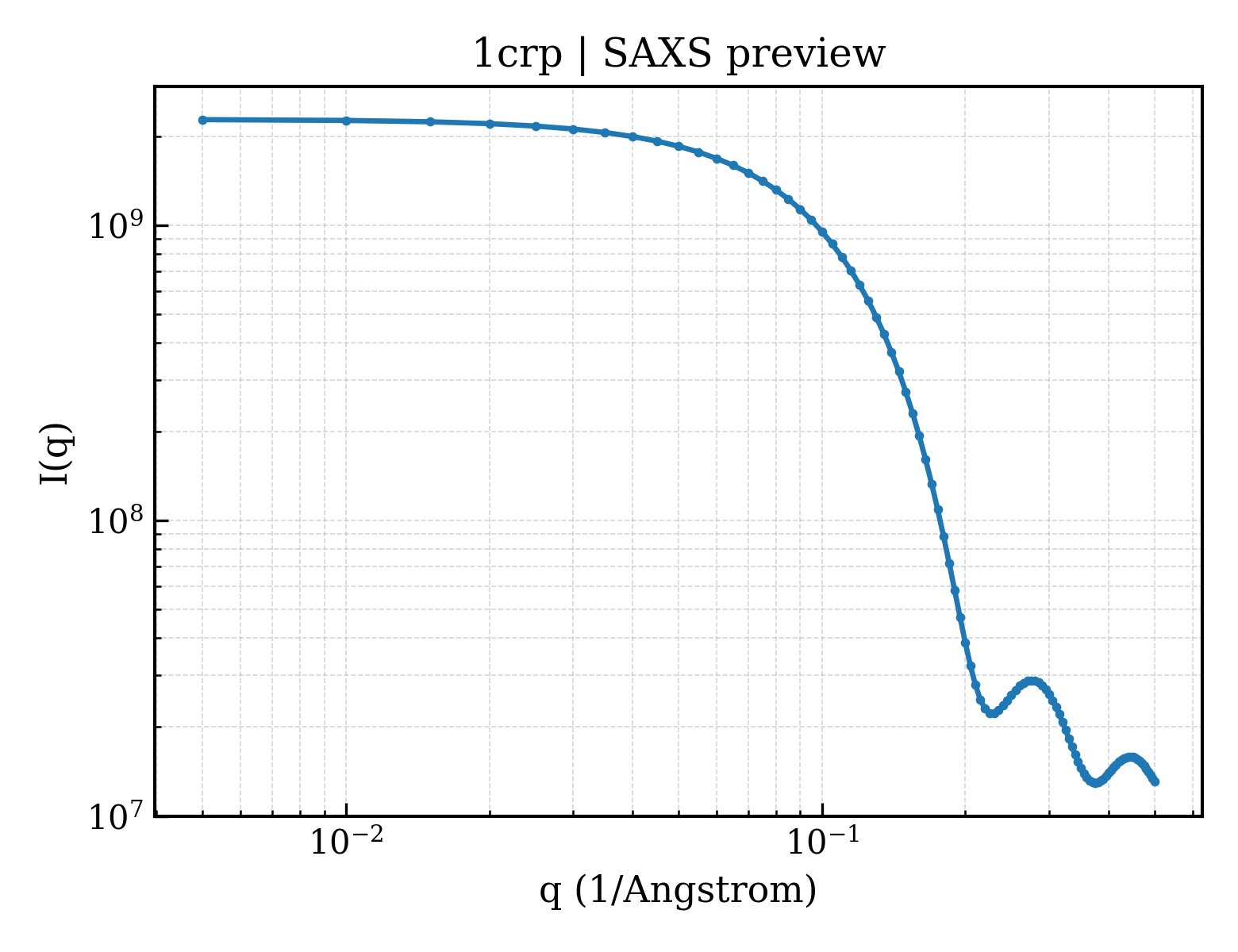

SAXS Profile

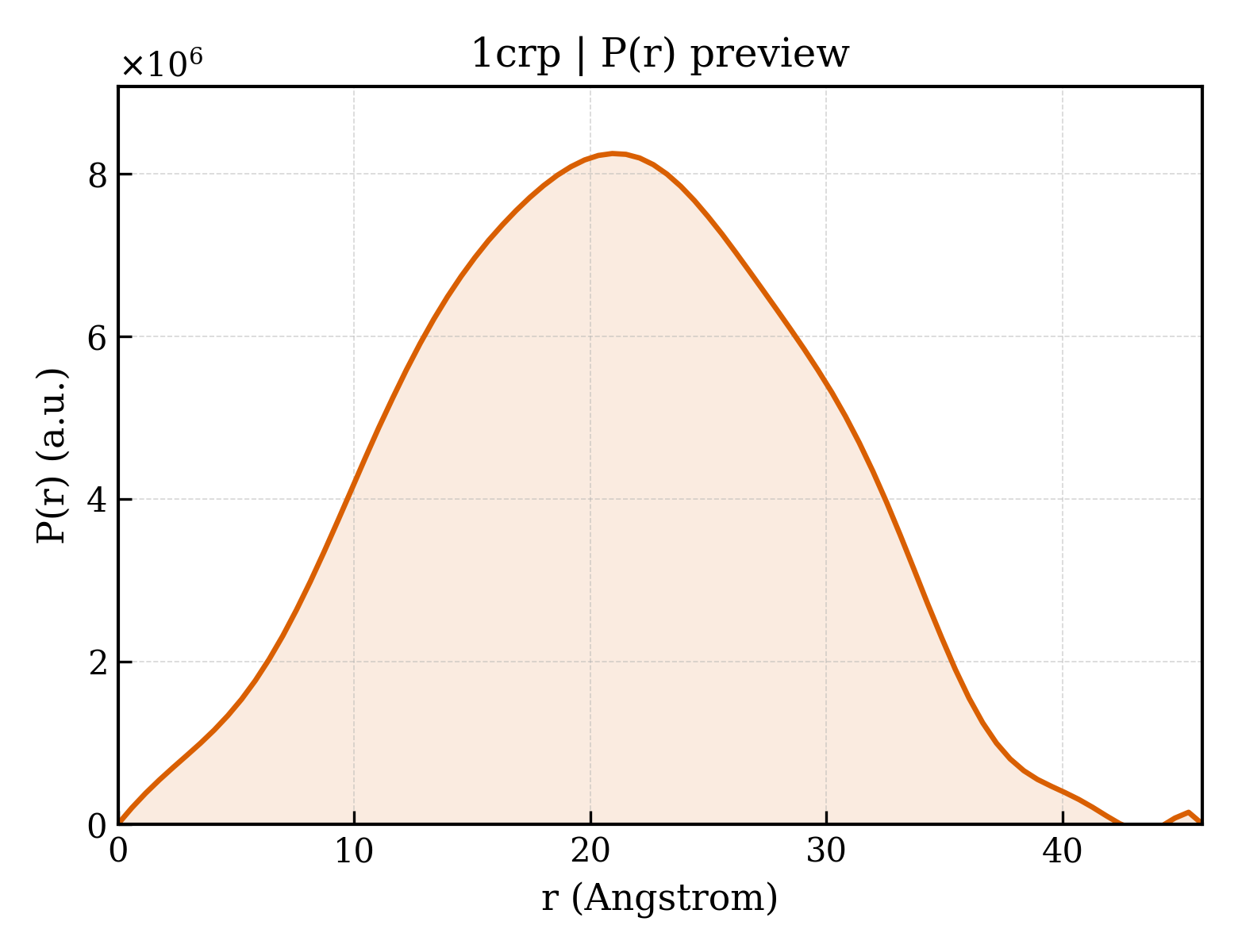

P(r) Distribution
1. Structure Basics
| entry_id | 1crp |
| deposition_date | 1993-11-24 |
| title | THE SOLUTION STRUCTURE AND DYNAMICS OF RAS P21. GDP DETERMINED BY HETERONUCLEAR THREE AND FOUR DIMENSIONAL NMR SPECTROSCOPY |
| keywords | ONCOGENE PROTEIN; ONCOGENE PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.92 Å |
| rg_electron | 15.34 Å |
| i0 | 2284350000.00 |
| molecular_weight | 386250.0 kDa |
| excluded_volume | 474900 ų |
| envelope_volume | 39714 ų |
| shell_volume | 18970 ų |
| envelope_diameter | 54.2 Å |
| shell_rg | 23.85 Å |
| envelope_rg | 17.27 Å |
| shape_rg | 15.34 Å |
| total_rg | 15.44 Å |
| total_atoms | 53200 |
| n_residues | 3320 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.9 Å |
| rg_real | 15.77 Å |
| rg_real_error | 0.18 Å |
| i0_real | 2.2840e+09 |
| i0_real_error | 2.4150e+07 |
| rg_reciprocal | 15.79 Å |
| i0_reciprocal | 2284000000.0000 |
| total_estimate | 0.8335 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.9 Å |
| skewness | -0.018 |
| kurtosis | -0.563 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 882000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.954; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.000 |
