1clu
H-RAS COMPLEXED WITH DIAMINOBENZOPHENONE-BETA,GAMMA-IMIDO-GTP
SAXS Profile

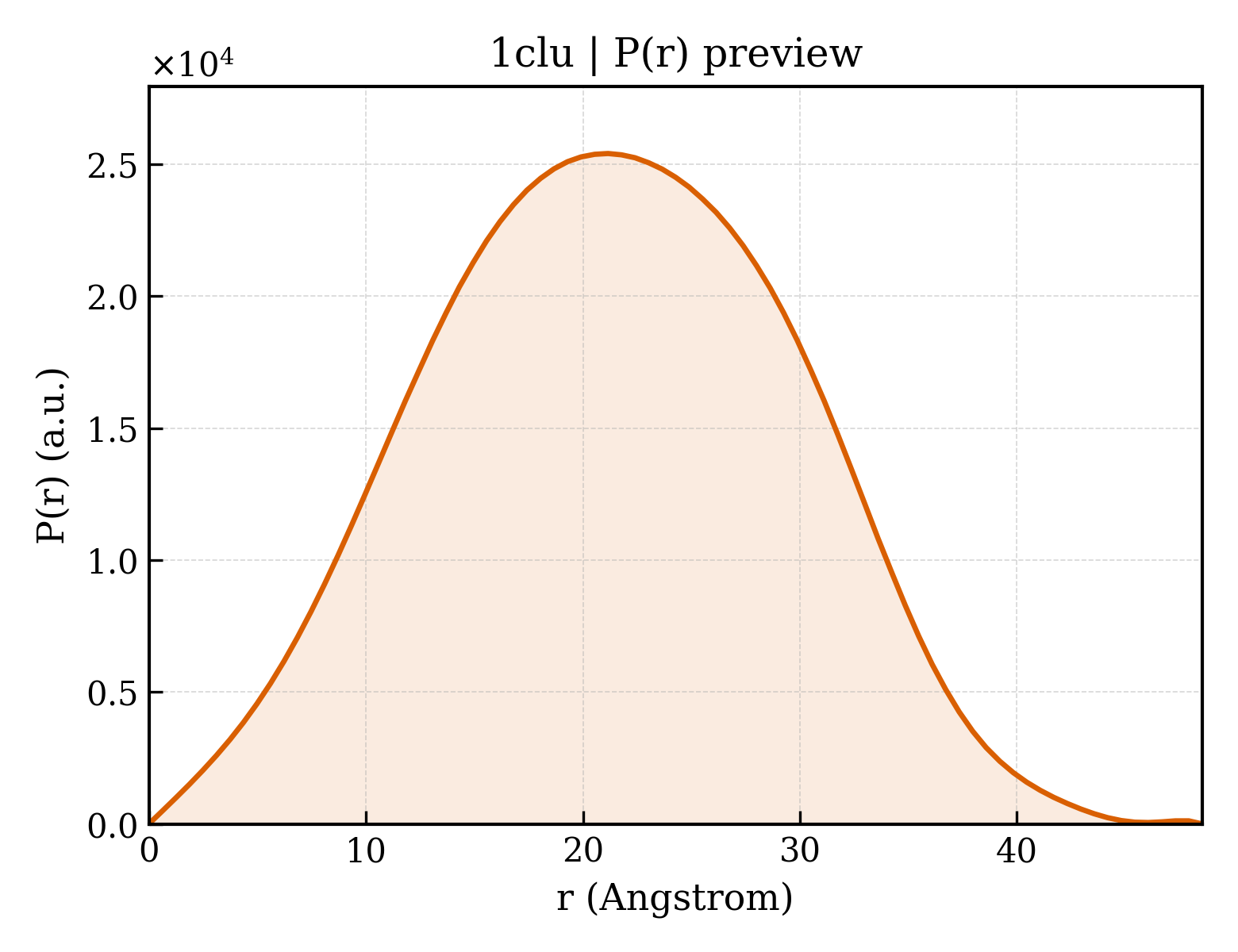

P(r) Distribution
1. Structure Basics
| entry_id | 1clu |
| deposition_date | 1999-05-03 |
| title | H-RAS COMPLEXED WITH DIAMINOBENZOPHENONE-BETA,GAMMA-IMIDO-GTP |
| keywords | GTP HYDROLASE, SIGNAL TRANSDUCTION, CANCER, G-DOMAIN, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.31 Å |
| rg_electron | 14.88 Å |
| i0 | 7306930.00 |
| molecular_weight | 18546.0 kDa |
| excluded_volume | 22718 ų |
| envelope_volume | 25624 ų |
| shell_volume | 14353 ų |
| envelope_diameter | 47.4 Å |
| shell_rg | 21.02 Å |
| envelope_rg | 15.17 Å |
| shape_rg | 14.87 Å |
| total_rg | 15.97 Å |
| total_atoms | 1296 |
| n_residues | 160 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.5 Å |
| rg_real | 16.16 Å |
| rg_real_error | 0.23 Å |
| i0_real | 7.3070e+06 |
| i0_real_error | 8.1890e+04 |
| rg_reciprocal | 16.17 Å |
| i0_reciprocal | 7307000.0000 |
| total_estimate | 0.9051 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 21.2 Å |
| skewness | 0.016 |
| kurtosis | -0.516 |
| angular_range | — – 0.4900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1195000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.986 |
