;STRUCTURAL CONSEQUENCES OF REDUCTIVE METHYLATION OF LYSINE RESIDUES IN HEN EGG WHITE LYSOZYME: AN X-RAY ANALYSIS AT 1.8 ANGSTROMS RESOLUTION ;

Method: X-RAY DIFFRACTION D_max: 51.6 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	132l
deposition_date	1993-06-02
title	;STRUCTURAL CONSEQUENCES OF REDUCTIVE METHYLATION OF LYSINE RESIDUES IN HEN EGG WHITE LYSOZYME: AN X-RAY ANALYSIS AT 1.8 ANGSTROMS RESOLUTION ;
keywords	HYDROLASE(O-GLYCOSYL); HYDROLASE(O-GLYCOSYL)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.21 Å
rg_electron	13.99 Å
i0	4663420.00
molecular_weight	14489.0 kDa
excluded_volume	17755 Å³
envelope_volume	19734 Å³
shell_volume	12103 Å³
envelope_diameter	51.9 Å
shell_rg	19.63 Å
envelope_rg	14.32 Å
shape_rg	13.97 Å
total_rg	15.13 Å
total_atoms	1013
n_residues	124
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

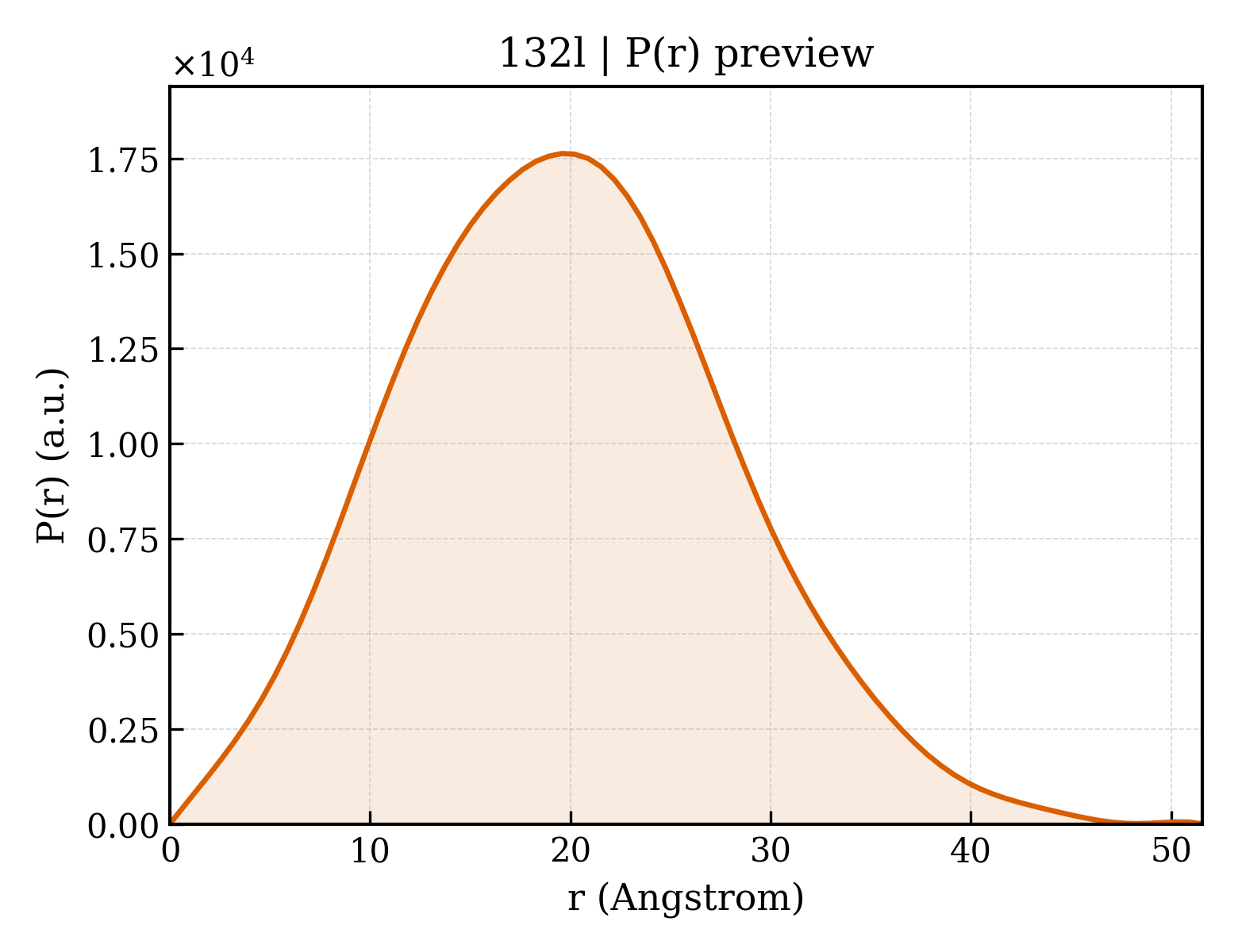

3. P(r) Analysis (GNOM)

dmax	51.6 Å
rg_real	15.14 Å
rg_real_error	0.30 Å
i0_real	4.6630e+06
i0_real_error	4.5690e+04
rg_reciprocal	15.14 Å
i0_reciprocal	4663000.0000
total_estimate	0.8674
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	19.6 Å
skewness	0.240
kurtosis	-0.205
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	823300.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.992

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	30.600 Å
length_b	56.300 Å
length_c	73.200 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.800 Å
resolution_low	30.000 Å
r_factor	0.1730
r_work	—
r_free	—

description	HEN EGG WHITE LYSOZYME
formula_weight	14494.4 kDa
ec_number	3.2.1.17
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1091

;STRUCTURAL CONSEQUENCES OF REDUCTIVE METHYLATION OF LYSINE RESIDUES IN HEN EGG WHITE LYSOZYME: AN X-RAY ANALYSIS AT 1.8 ANGSTROMS RESOLUTION ;

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	78

fit	/app/data/saxs_computation/32/132l/132l.fit
pddf	/app/data/pr_computation/32/132l/132l.pr.out
profile	/app/data/saxs_computation/32/132l/132l.dat

organism	Gallus gallus
common_name	chicken
ncbi_taxonomy_id	9031
