THE 1.33 A STRUCTURE OF TETRAGONAL HEN EGG WHITE LYSOZYME

Method: X-RAY DIFFRACTION D_max: 51.5 Å Quality: GOOD

SAXS Profile

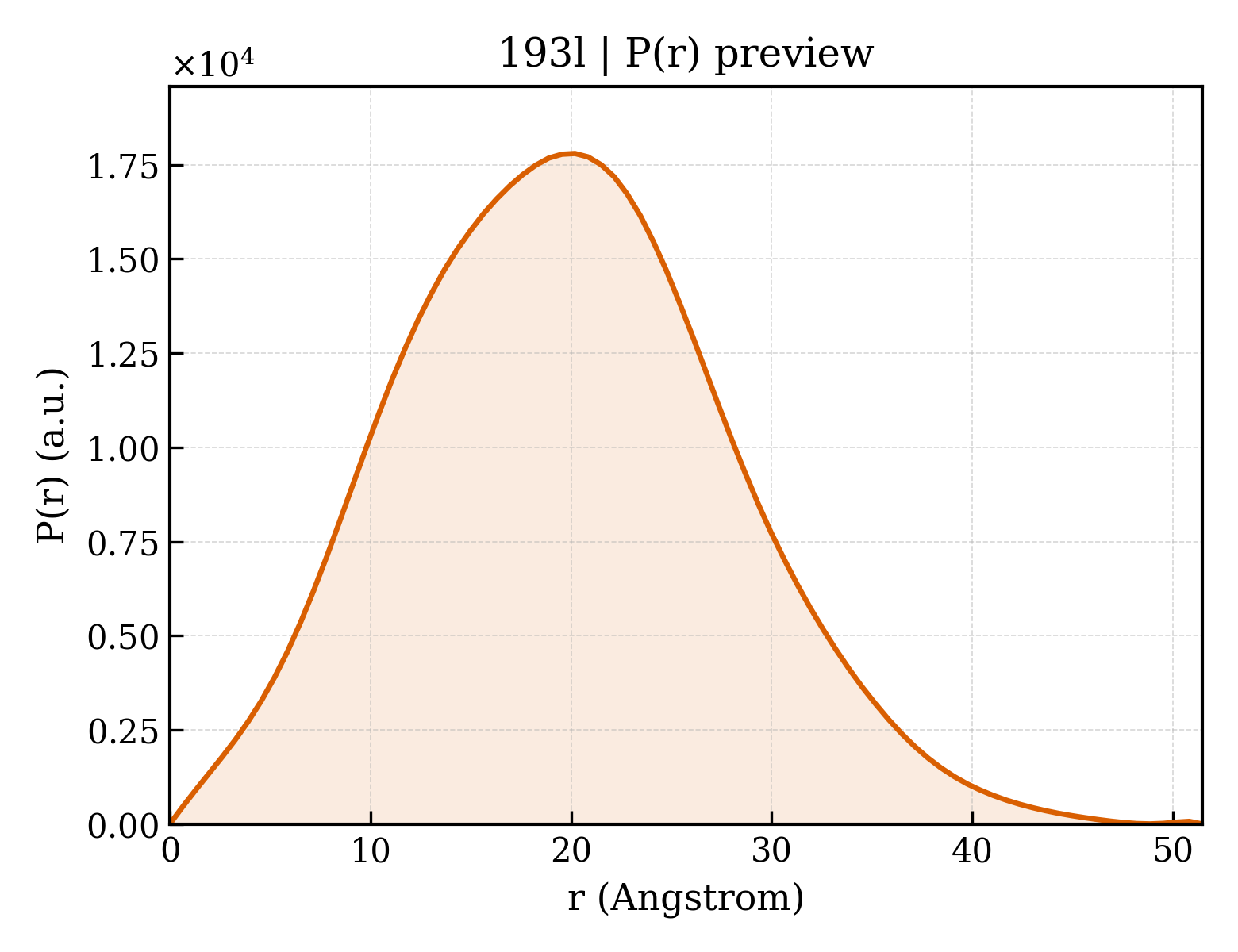

P(r) Distribution

▼

1. Structure Basics

entry_id	193l
deposition_date	1995-09-01
title	THE 1.33 A STRUCTURE OF TETRAGONAL HEN EGG WHITE LYSOZYME
keywords	HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.14 Å
rg_electron	13.87 Å
i0	4677810.00
molecular_weight	14380.0 kDa
excluded_volume	17509 Å³
envelope_volume	19137 Å³
shell_volume	11869 Å³
envelope_diameter	51.5 Å
shell_rg	19.44 Å
envelope_rg	14.17 Å
shape_rg	13.85 Å
total_rg	14.97 Å
total_atoms	1003
n_residues	129
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	51.5 Å
rg_real	15.07 Å
rg_real_error	0.32 Å
i0_real	4.6780e+06
i0_real_error	5.0840e+04
rg_reciprocal	15.07 Å
i0_reciprocal	4678000.0000
total_estimate	0.8629
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	20.2 Å
skewness	0.235
kurtosis	-0.201
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	800400.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.753; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (4)

▶

length_a	78.540 Å
length_b	78.540 Å
length_c	37.770 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	1.330 Å
resolution_low	7.000 Å
r_factor	0.1840
r_work	0.1840
r_free	0.2260

description	LYSOZYME
formula_weight	14331.2 kDa
src_method	nat
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1156

THE 1.33 A STRUCTURE OF TETRAGONAL HEN EGG WHITE LYSOZYME

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (4)

Entity 1 polymer

Polymer

Entity 2 non-polymer

Entity 3 non-polymer

Entity 4 water

6. Citations (4)

7. Files & Curves (10)

Files (7)

Curves (3)

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	142
