1a8o
HIV CAPSID C-TERMINAL DOMAIN

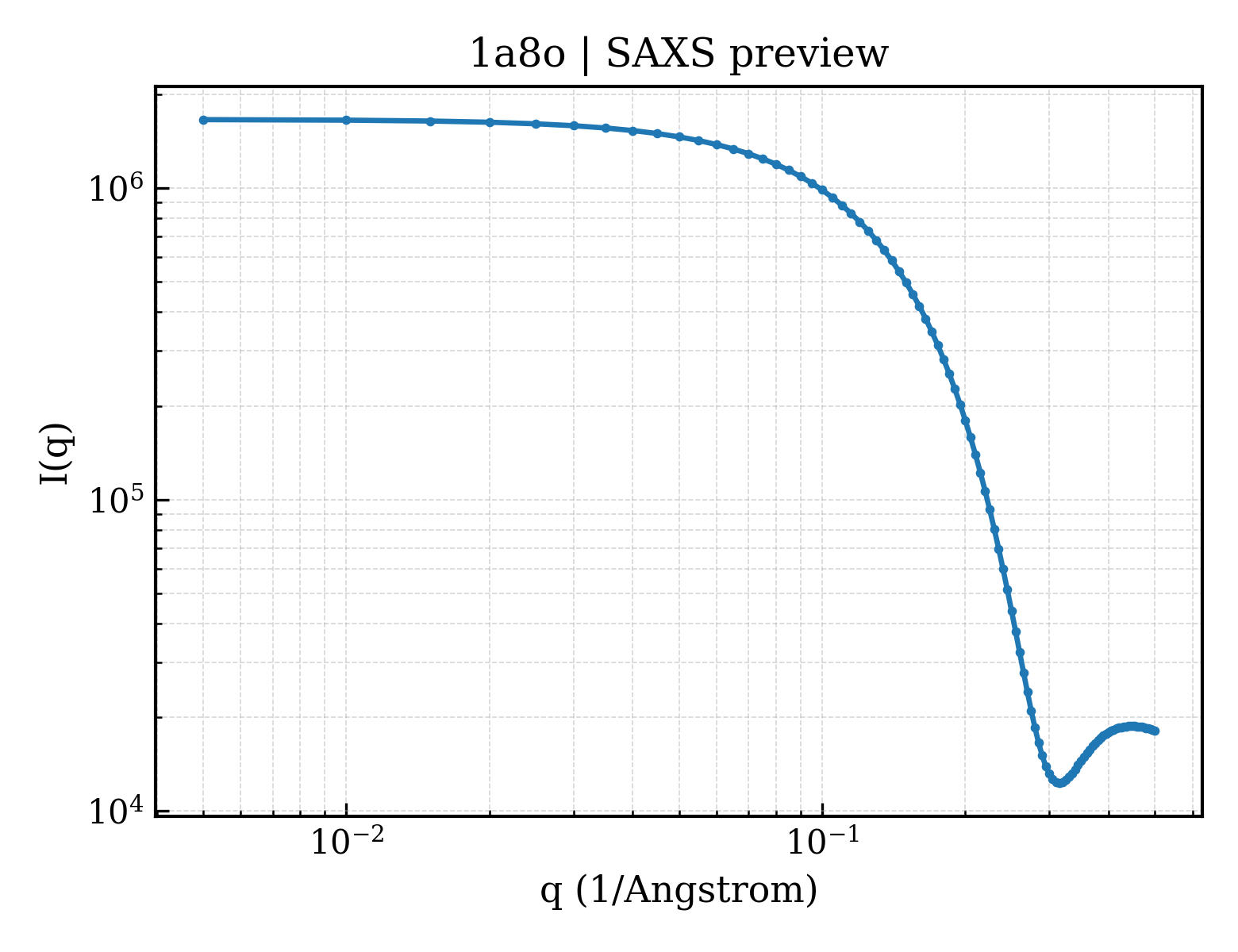

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a8o |
| deposition_date | 1998-03-27 |
| title | HIV CAPSID C-TERMINAL DOMAIN |
| keywords | CAPSID, CORE PROTEIN, HIV, C-TERMINAL DOMAIN, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.46 Å |
| rg_electron | 11.27 Å |
| i0 | 1661410.00 |
| molecular_weight | 8169.0 kDa |
| excluded_volume | 9935 ų |
| envelope_volume | 10919 ų |
| shell_volume | 8476 ų |
| envelope_diameter | 38.5 Å |
| shell_rg | 16.62 Å |
| envelope_rg | 11.63 Å |
| shape_rg | 11.33 Å |
| total_rg | 12.46 Å |
| total_atoms | 556 |
| n_residues | 66 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.5 Å |
| rg_real | 12.38 Å |
| rg_real_error | 0.22 Å |
| i0_real | 1.6610e+06 |
| i0_real_error | 1.5620e+04 |
| rg_reciprocal | 12.39 Å |
| i0_reciprocal | 1661000.0000 |
| total_estimate | 0.8793 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.4 Å |
| skewness | 0.185 |
| kurtosis | -0.240 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 379500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.994 |
