1baj
HIV-1 CAPSID PROTEIN C-TERMINAL FRAGMENT PLUS GAG P2 DOMAIN
SAXS Profile

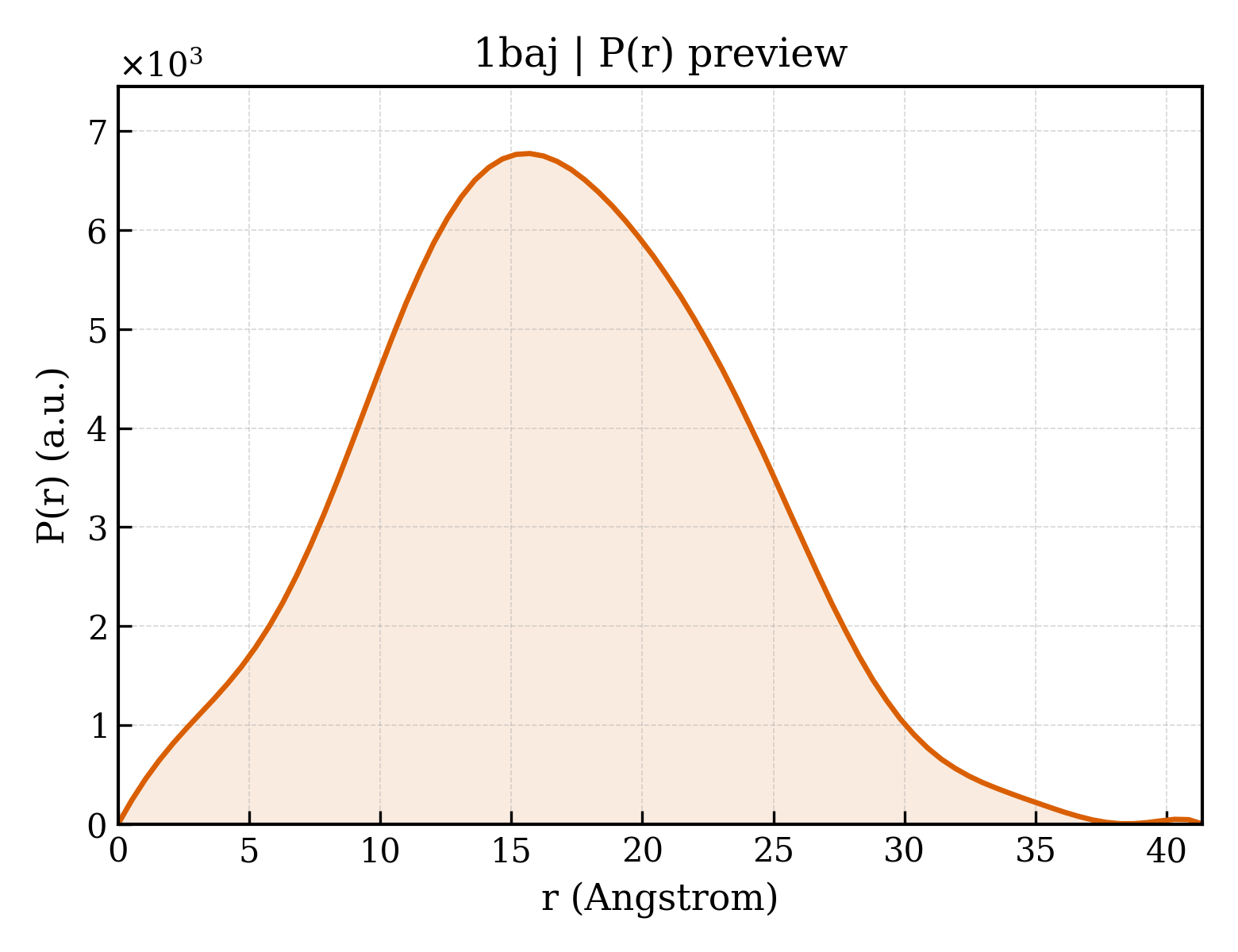

P(r) Distribution
1. Structure Basics
| entry_id | 1baj |
| deposition_date | 1998-04-17 |
| title | HIV-1 CAPSID PROTEIN C-TERMINAL FRAGMENT PLUS GAG P2 DOMAIN |
| keywords | CAPSID, HIV-1 ASSEMBLY PROTEIN, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.82 Å |
| rg_electron | 11.45 Å |
| i0 | 1500510.00 |
| molecular_weight | 8059.0 kDa |
| excluded_volume | 10057 ų |
| envelope_volume | 11191 ų |
| shell_volume | 8574 ų |
| envelope_diameter | 40.6 Å |
| shell_rg | 16.75 Å |
| envelope_rg | 11.77 Å |
| shape_rg | 11.44 Å |
| total_rg | 12.86 Å |
| total_atoms | 563 |
| n_residues | 71 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.4 Å |
| rg_real | 12.74 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.5010e+06 |
| i0_real_error | 1.7400e+04 |
| rg_reciprocal | 12.75 Å |
| i0_reciprocal | 1501000.0000 |
| total_estimate | 0.7084 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 15.7 Å |
| skewness | 0.129 |
| kurtosis | -0.298 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 239600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.995; Smooth: 0.952 |
