SAXSdb — 2gol

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Matrix protein p17 (MA)

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 1 water × 2	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1N5
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 3–133； UniProt 1–131 Author chain B； PDBConstruct 1–146； UniProt 132–277 Author chain D； PDBConstruct 1–146； UniProt 132–277

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2gol
Deposition date deposition_date	2006-04-13
Structure title title	Xray Structure of Gag278
Keywords keywords	Viral Maturation, Immature, Gag, HIV-1, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2gol__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2gol__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

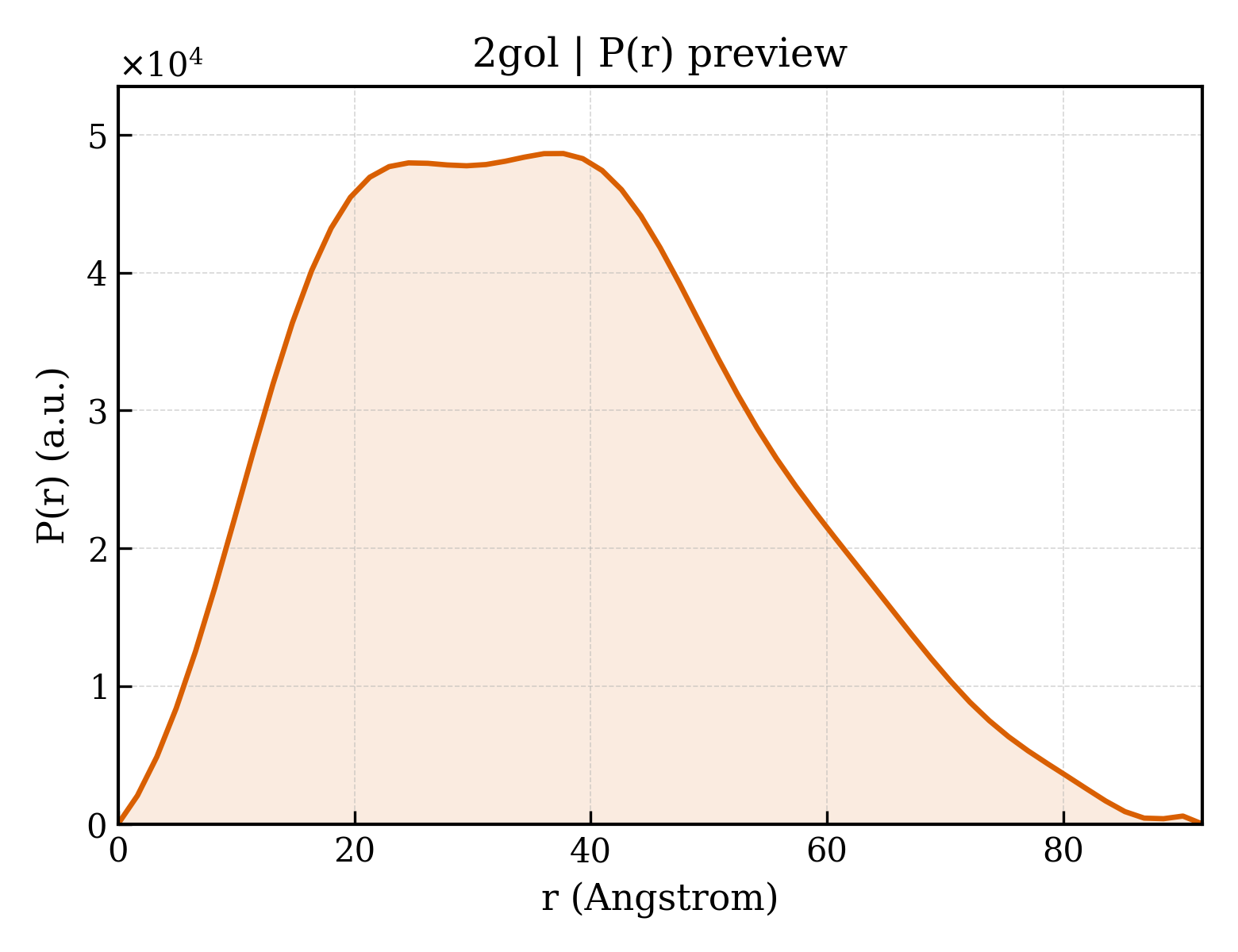

2gol__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.67 Å
Rg (electron density)	20.83 Å
Total Rg	21.67 Å
Atom count	1876
Residues	237
Excluded volume	33391 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2gol__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2gol__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Matrix protein p17 (MA)
Molecular weight formula_weight	15004.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3219

HMGARASVLSGGELDKWEKIRLRPGGKKQYKLKHIVWASRELERFAVNPGLLETSEGCRQILGQLQPSLQTGSEELRSLYNTIAVLYCVHQRIDVKDTKEALDKIEEEQNKSKKKAQQAAADTGNNSQVSQNY

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Capsid protein p24 (CA)
Molecular weight formula_weight	16204.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

PIVQNLQGQMVHQAISPRTLNAWVKVVEEKAFSPEVIPMFSALSEGATPQDLNTMLNTVGGHQAAMQMLKETINEEAAEWDRLHPVHAGPIAPGQMREPRGSDIAGTTSTLQEQIGWMTHNPPIPVGEIYKRWIILGLNKIVRMYS

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	274

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2gola_
Class class	a — All alpha proteins
Fold Fold fold	a.61 — Retroviral matrix proteins
Superfamily Superfamily superfamily	a.61.1 — Retroviral matrix proteins
Family Family family	a.61.1.1 — Immunodeficiency virus matrix proteins

Domain ID domain_id	d2golb_
Class class	a — All alpha proteins
Fold Fold fold	a.73 — Retrovirus capsid protein, N-terminal core domain
Superfamily Superfamily superfamily	a.73.1 — Retrovirus capsid protein, N-terminal core domain
Family Family family	a.73.1.1 — Retrovirus capsid protein, N-terminal core domain

Domain ID domain_id	d2gold_
Class class	a — All alpha proteins
Fold Fold fold	a.73 — Retrovirus capsid protein, N-terminal core domain
Superfamily Superfamily superfamily	a.73.1 — Retrovirus capsid protein, N-terminal core domain
Family Family family	a.73.1.1 — Retrovirus capsid protein, N-terminal core domain

CATH v4.4 (3 domains)

Domain ID domain_id	2golA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	90 — Immunodeficiency lentiviruses, gag gene matrix protein p17

Domain ID domain_id	2golB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	375 — Human Immunodeficiency Virus Type 1 Capsid Protein
Homologous superfamily homologous superfamily	10 — Human Immunodeficiency Virus Type 1 Capsid Protein

Domain ID domain_id	2golD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	375 — Human Immunodeficiency Virus Type 1 Capsid Protein
Homologous superfamily homologous superfamily	10 — Human Immunodeficiency Virus Type 1 Capsid Protein

▶

Unit-cell length a length_a	111.027 Å
Unit-cell length b length_b	111.027 Å
Unit-cell length c length_c	113.427 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	79.810 Å
R factor r_factor	0.2053
R_work r_work	0.2025
R_free r_free	0.2583
