1bl3
CATALYTIC DOMAIN OF HIV-1 INTEGRASE
SAXS Profile

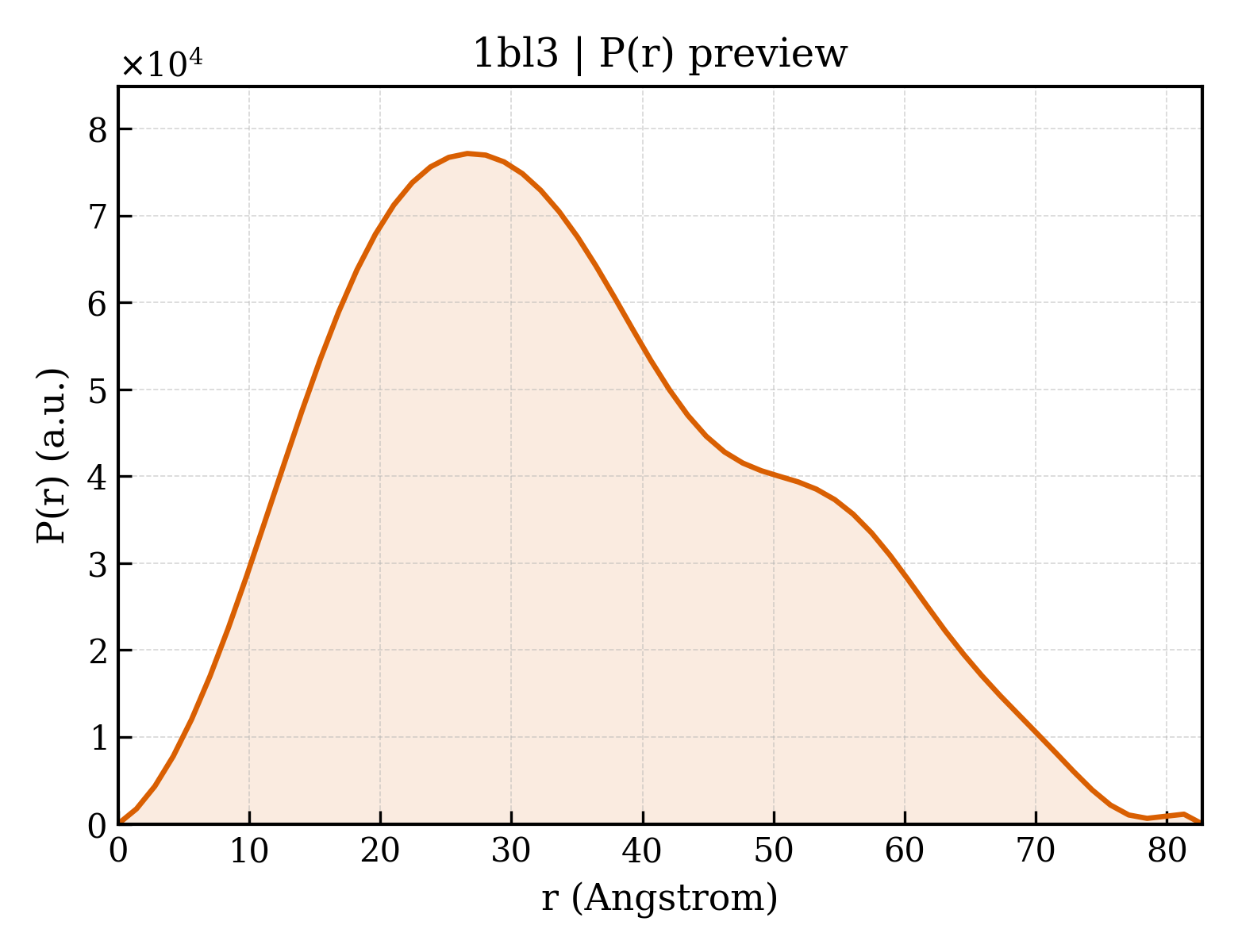

P(r) Distribution
1. Structure Basics
| entry_id | 1bl3 |
| deposition_date | 1998-07-23 |
| title | CATALYTIC DOMAIN OF HIV-1 INTEGRASE |
| keywords | DNA INTEGRATION, AIDS, POLYPROTEIN, HYDROLASE, ENDONUCLEASE, POLYNUCLEOTIDYL TRANSFERASE, DNA BINDING (VIRAL); DNA INTEGRATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.67 Å |
| rg_electron | 26.01 Å |
| i0 | 38846100.00 |
| molecular_weight | 48879.0 kDa |
| excluded_volume | 61505 ų |
| envelope_volume | 75487 ų |
| shell_volume | 25202 ų |
| envelope_diameter | 86.9 Å |
| shell_rg | 32.28 Å |
| envelope_rg | 26.02 Å |
| shape_rg | 26.01 Å |
| total_rg | 26.73 Å |
| total_atoms | 3443 |
| n_residues | 445 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.7 Å |
| rg_real | 26.77 Å |
| rg_real_error | 0.54 Å |
| i0_real | 3.8850e+07 |
| i0_real_error | 5.6180e+05 |
| rg_reciprocal | 26.75 Å |
| i0_reciprocal | 38850000.0000 |
| total_estimate | 0.8882 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.6 Å |
| skewness | 0.389 |
| kurtosis | -0.584 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7584000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.911 |
