1aum
HIV CAPSID C-TERMINAL DOMAIN (CAC146)
SAXS Profile

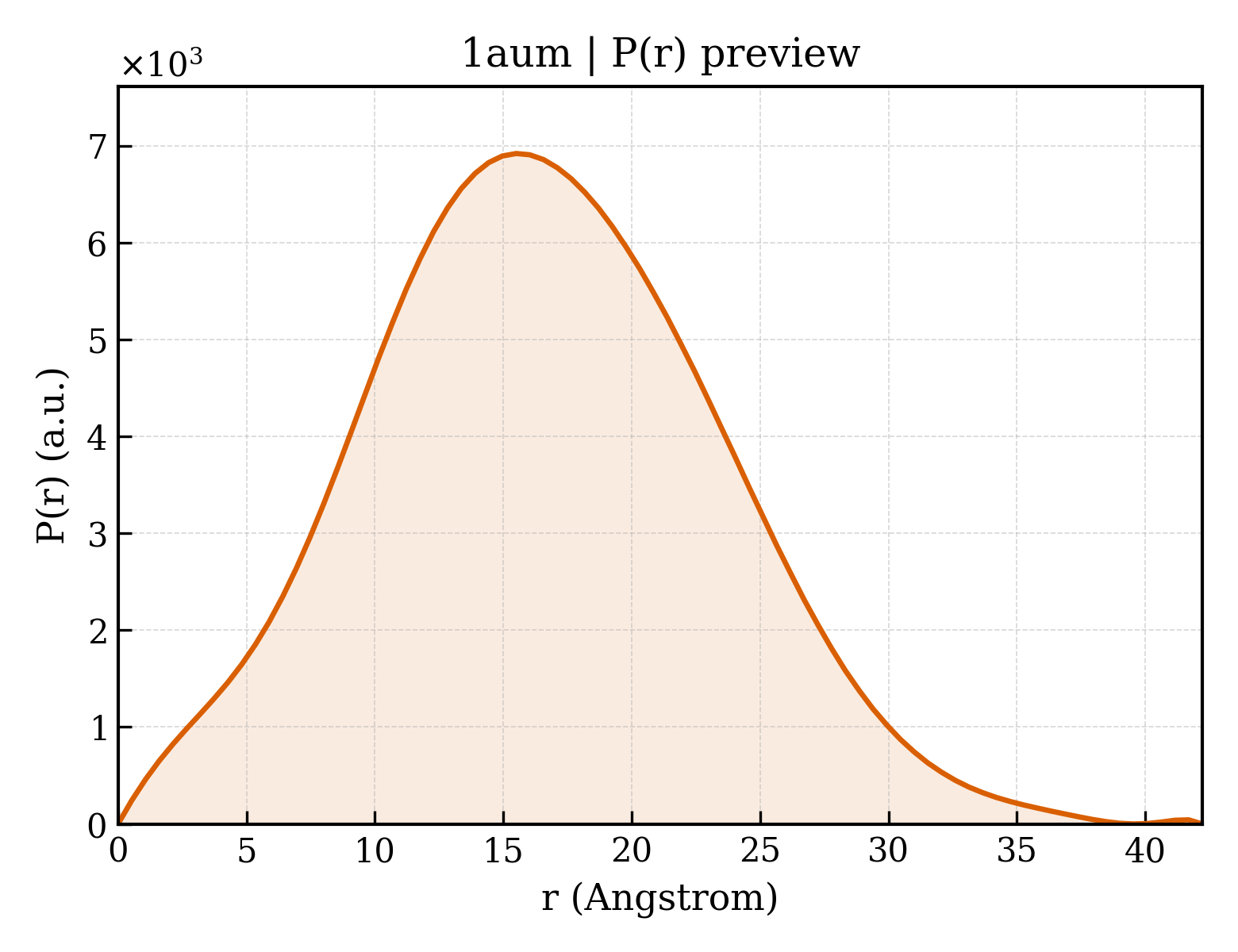

P(r) Distribution
1. Structure Basics
| entry_id | 1aum |
| deposition_date | 1997-08-29 |
| title | HIV CAPSID C-TERMINAL DOMAIN (CAC146) |
| keywords | CORE PROTEIN, HIV, CAPSID, C-TERMINAL DOMAIN, CAC146, Viral protein; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.71 Å |
| rg_electron | 11.34 Å |
| i0 | 1498220.00 |
| molecular_weight | 7960.0 kDa |
| excluded_volume | 9892 ų |
| envelope_volume | 11034 ų |
| shell_volume | 8526 ų |
| envelope_diameter | 41.5 Å |
| shell_rg | 16.71 Å |
| envelope_rg | 11.73 Å |
| shape_rg | 11.33 Å |
| total_rg | 12.75 Å |
| total_atoms | 685 |
| n_residues | 70 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.2 Å |
| rg_real | 12.64 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.4980e+06 |
| i0_real_error | 1.6890e+04 |
| rg_reciprocal | 12.64 Å |
| i0_reciprocal | 1498000.0000 |
| total_estimate | 0.8657 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.5 Å |
| skewness | 0.178 |
| kurtosis | -0.208 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 283100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.939 |
