1apn
THE CRYSTALLOGRAPHIC STRUCTURE OF METAL-FREE CONCANAVALIN A AT 2.5 ANGSTROMS RESOLUTION
SAXS Profile

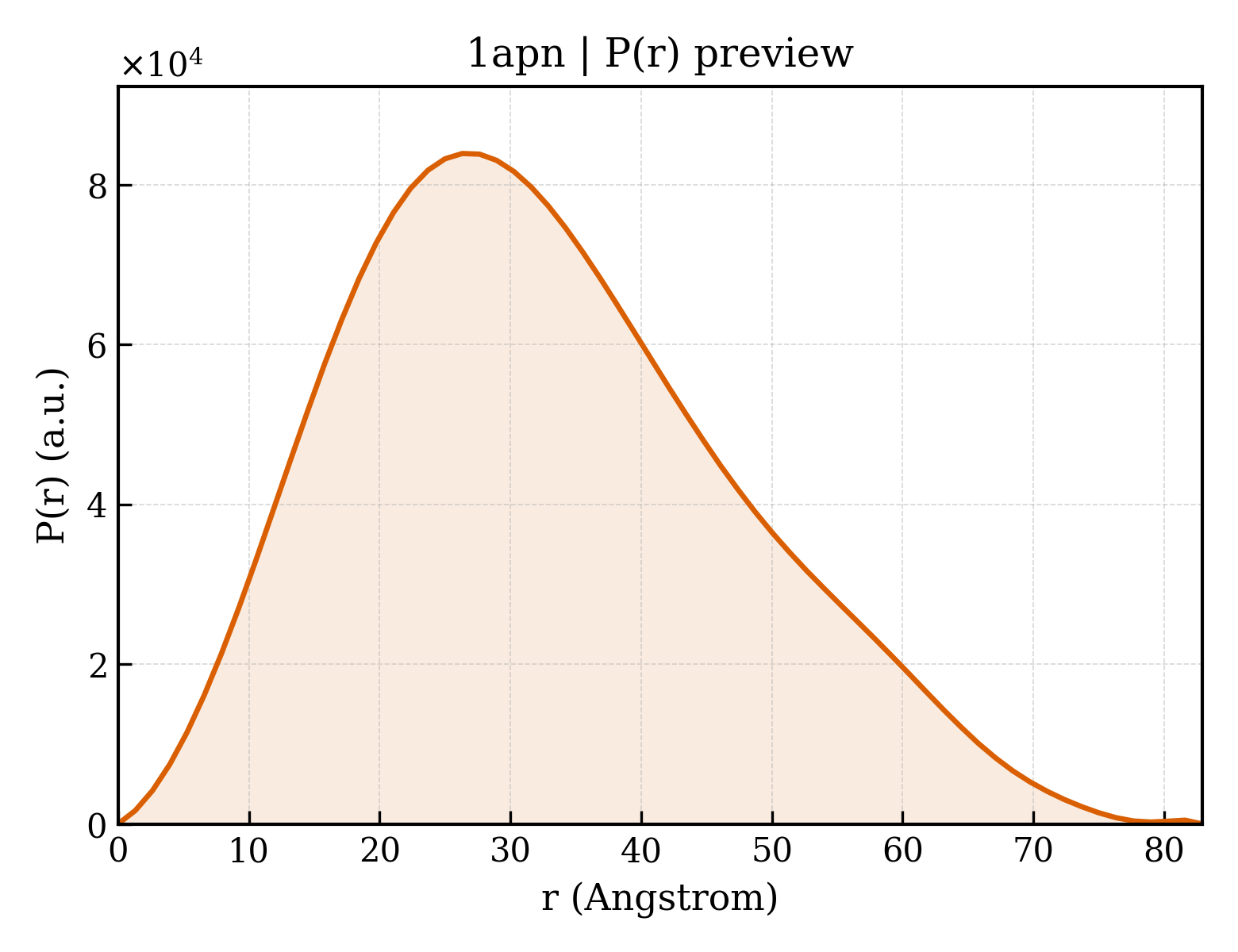

P(r) Distribution
1. Structure Basics
| entry_id | 1apn |
| deposition_date | 1995-07-28 |
| title | THE CRYSTALLOGRAPHIC STRUCTURE OF METAL-FREE CONCANAVALIN A AT 2.5 ANGSTROMS RESOLUTION |
| keywords | LECTIN; LECTIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.10 Å |
| rg_electron | 23.98 Å |
| i0 | 38739900.00 |
| molecular_weight | 48375.0 kDa |
| excluded_volume | 60675 ų |
| envelope_volume | 71391 ų |
| shell_volume | 25292 ų |
| envelope_diameter | 85.4 Å |
| shell_rg | 30.76 Å |
| envelope_rg | 24.26 Å |
| shape_rg | 23.94 Å |
| total_rg | 24.89 Å |
| total_atoms | 3421 |
| n_residues | 449 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.9 Å |
| rg_real | 25.15 Å |
| rg_real_error | 0.53 Å |
| i0_real | 3.8740e+07 |
| i0_real_error | 5.6910e+05 |
| rg_reciprocal | 25.14 Å |
| i0_reciprocal | 38740000.0000 |
| total_estimate | 0.8828 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.3 Å |
| skewness | 0.419 |
| kurtosis | -0.351 |
| angular_range | — – 0.3150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7234000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.938; Smooth: 0.975 |
