SAXSdb — 1nxd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

concanavalin A

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	AZIDE ION × 3 MANGANESE (II) ION × 2 SODIUM ION × 1 GLYCEROL × 8 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	AZIDE ION × 5 MANGANESE (II) ION × 2 SODIUM ION × 1 GLYCEROL × 6 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	AZIDE ION × 4 MANGANESE (II) ION × 2 SODIUM ION × 1 GLYCEROL × 5 water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	AZIDE ION × 4 MANGANESE (II) ION × 2 SODIUM ION × 1 GLYCEROL × 6 water × 1	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 4	AZIDE ION × 16 MANGANESE (II) ION × 8 SODIUM ION × 4 GLYCEROL × 28 water × 4	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 4	AZIDE ION × 16 MANGANESE (II) ION × 8 SODIUM ION × 4 GLYCEROL × 22 water × 4	Consistent with protein count
7	Protein homooligomer	Homooligomer	Protein 2	AZIDE ION × 8 MANGANESE (II) ION × 4 SODIUM ION × 2 GLYCEROL × 14 water × 2	Consistent with protein count
8	Protein homooligomer	Homooligomer	Protein 2	AZIDE ION × 8 MANGANESE (II) ION × 4 SODIUM ION × 2 GLYCEROL × 11 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CONA_CANEN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–118； UniProt 164–281 Author chain 1； PDBConstruct 119–237； UniProt 30–148 Author chain 2； PDBConstruct 1–118； UniProt 164–281 Author chain 2； PDBConstruct 119–237； UniProt 30–148 Author chain 3； PDBConstruct 1–118； UniProt 164–281 Author chain 3； PDBConstruct 119–237； UniProt 30–148 Author chain 4； PDBConstruct 1–118； UniProt 164–281 Author chain 4； PDBConstruct 119–237； UniProt 30–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1nxd
Deposition date deposition_date	2003-02-10
Structure title title	Crystal structure of MnMn Concanavalin A
Keywords keywords	Lectin, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1nxd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1nxd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

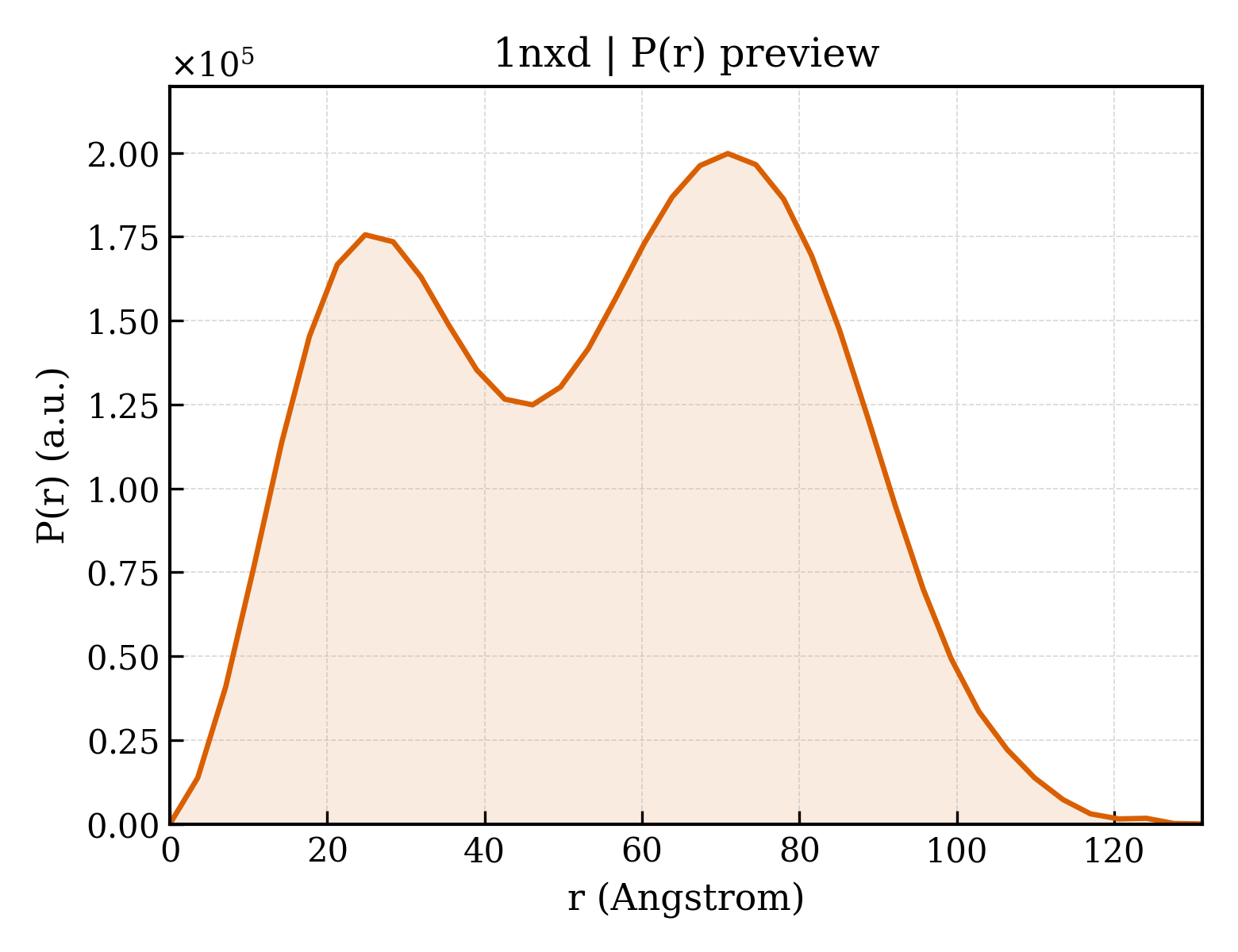

1nxd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.43 Å
Rg (electron density)	17.12 Å
Total Rg	18.13 Å
Atom count	1869
Residues	237
Excluded volume	33023 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1nxd__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1nxd__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1nxd__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1nxd__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1nxd__assembly_5__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1nxd__assembly_6__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1nxd__assembly_7__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`1nxd__assembly_8__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	concanavalin A
Molecular weight formula_weight	25622.4 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,2,3,4
Atom count atom_count	8210

ADTIVAVELDTYPNTDIGDPSYPHIGIDIKSVRSKKTAKWNMQNGKVGTAHIIYNSVDKRLSAVVSYPNADSATVSYDVDLDNVLPEWVRVGLSASTGLYKETNTILSWSFTSKLKSNSTHETNALHFMFNQFSKDQKDLILQGDATTGTDGNLELTRVSSNGSPQGSSVGRALFYAPVHIWESSAVVASFEATFTFLIKSPDSHPADGIAFFISNIDSSIPSGSTGRLLGLFPDAN

Entity 2 Entity 2 non-polymer

Description description	AZIDE ION
Molecular weight formula_weight	42.0 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 3 Entity 3 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	25

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	764

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1nxd1_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d1nxd2_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d1nxd3_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

Domain ID domain_id	d1nxd4_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

CATH v4.4 (4 domains)

Domain ID domain_id	1nxd100
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1nxd200
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1nxd300
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1nxd400
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	101.300 Å
Unit-cell length b length_b	118.000 Å
Unit-cell length c length_c	249.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	19.000 Å
R factor r_factor	—
R_work r_work	0.1840
R_free r_free	0.2010
