1enr
;CO-CRYSTALS OF DEMETALLIZED CONCANAVALIN A WITH ZINC AND CALCIUM HAVING A ZINC ION BOUND IN THE S1 SITE AND A CALCIUM ION BOUND IN THE S2 SITE ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1enr |
| deposition_date | 1996-03-20 |
| title | ;CO-CRYSTALS OF DEMETALLIZED CONCANAVALIN A WITH ZINC AND CALCIUM HAVING A ZINC ION BOUND IN THE S1 SITE AND A CALCIUM ION BOUND IN THE S2 SITE ; |
| keywords | CONCANAVALIN A, PLANT LECTIN, AGGLUTININ, PLANT LECTIN (AGGLUTININ); PLANT LECTIN (AGGLUTININ) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.58 Å |
| rg_electron | 17.20 Å |
| i0 | 11956700.00 |
| molecular_weight | 25485.0 kDa |
| excluded_volume | 31712 ų |
| envelope_volume | 36181 ų |
| shell_volume | 17614 ų |
| envelope_diameter | 63.6 Å |
| shell_rg | 23.49 Å |
| envelope_rg | 17.61 Å |
| shape_rg | 17.18 Å |
| total_rg | 18.20 Å |
| total_atoms | 1797 |
| n_residues | 237 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

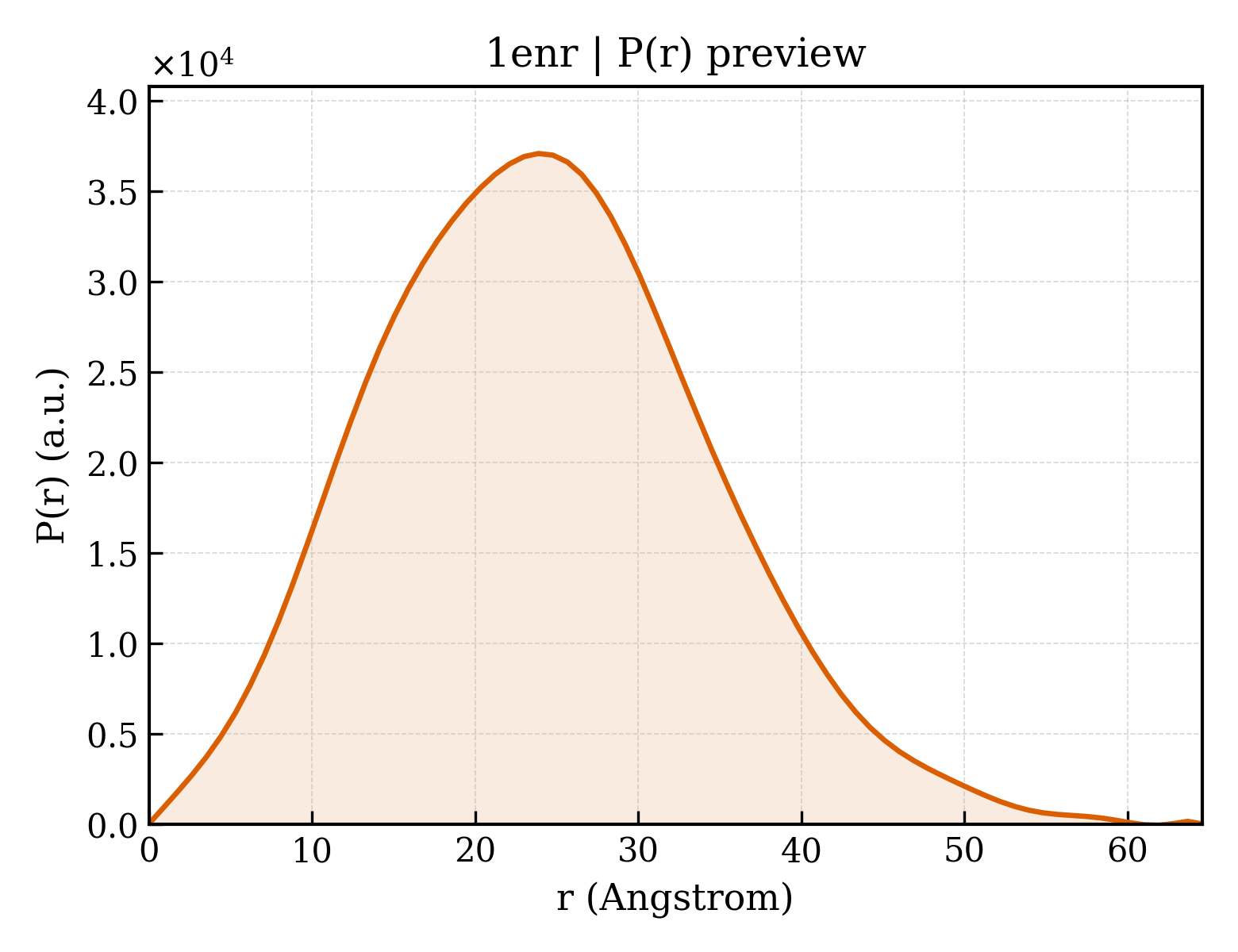

3. P(r) Analysis (GNOM)
| dmax | 64.6 Å |
| rg_real | 18.52 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.1960e+07 |
| i0_real_error | 1.5230e+05 |
| rg_reciprocal | 18.53 Å |
| i0_reciprocal | 11960000.0000 |
| total_estimate | 0.7791 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.9 Å |
| skewness | 0.299 |
| kurtosis | -0.124 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2778000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.710; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000 |
