1cvn
CONCANAVALIN A COMPLEXED TO TRIMANNOSIDE
SAXS Profile

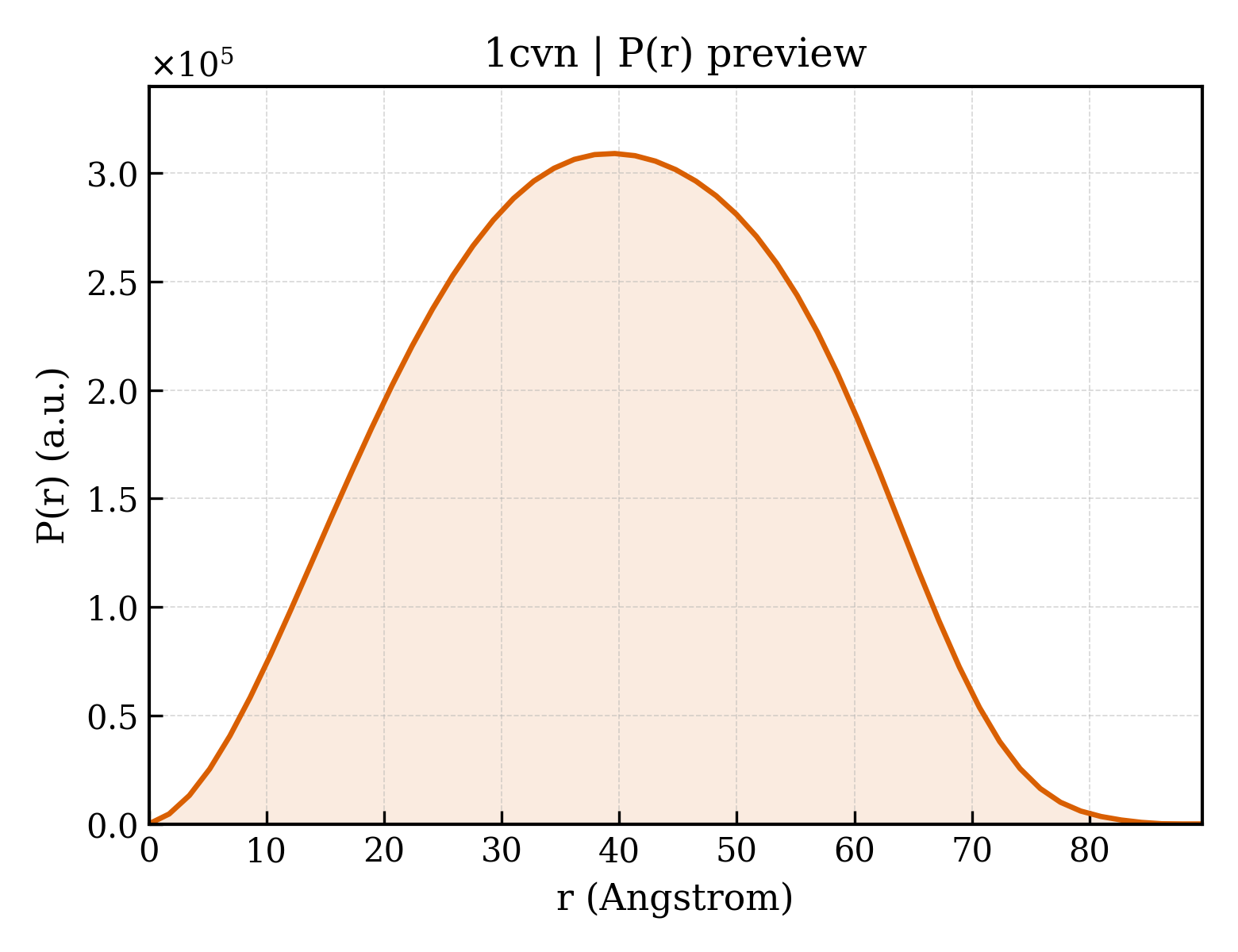

P(r) Distribution
1. Structure Basics
| entry_id | 1cvn |
| deposition_date | 1995-08-09 |
| title | CONCANAVALIN A COMPLEXED TO TRIMANNOSIDE |
| keywords | CONCANAVALIN A, SACCHARIDE BINDING, LECTIN (AGGLUTININ); LECTIN (AGGLUTININ) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.40 Å |
| rg_electron | 28.99 Å |
| i0 | 175588000.00 |
| molecular_weight | 104770.0 kDa |
| excluded_volume | 130580 ų |
| envelope_volume | 154870 ų |
| shell_volume | 43603 ų |
| envelope_diameter | 89.0 Å |
| shell_rg | 37.26 Å |
| envelope_rg | 28.78 Å |
| shape_rg | 28.93 Å |
| total_rg | 29.88 Å |
| total_atoms | 7380 |
| n_residues | 948 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.6 Å |
| rg_real | 30.18 Å |
| rg_real_error | 0.49 Å |
| i0_real | 1.7560e+08 |
| i0_real_error | 2.3690e+06 |
| rg_reciprocal | 30.27 Å |
| i0_reciprocal | 175600000.0000 |
| total_estimate | 0.8381 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 39.6 Å |
| skewness | 0.011 |
| kurtosis | -0.689 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 27470000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000 |
