1atz
HUMAN VON WILLEBRAND FACTOR A3 DOMAIN

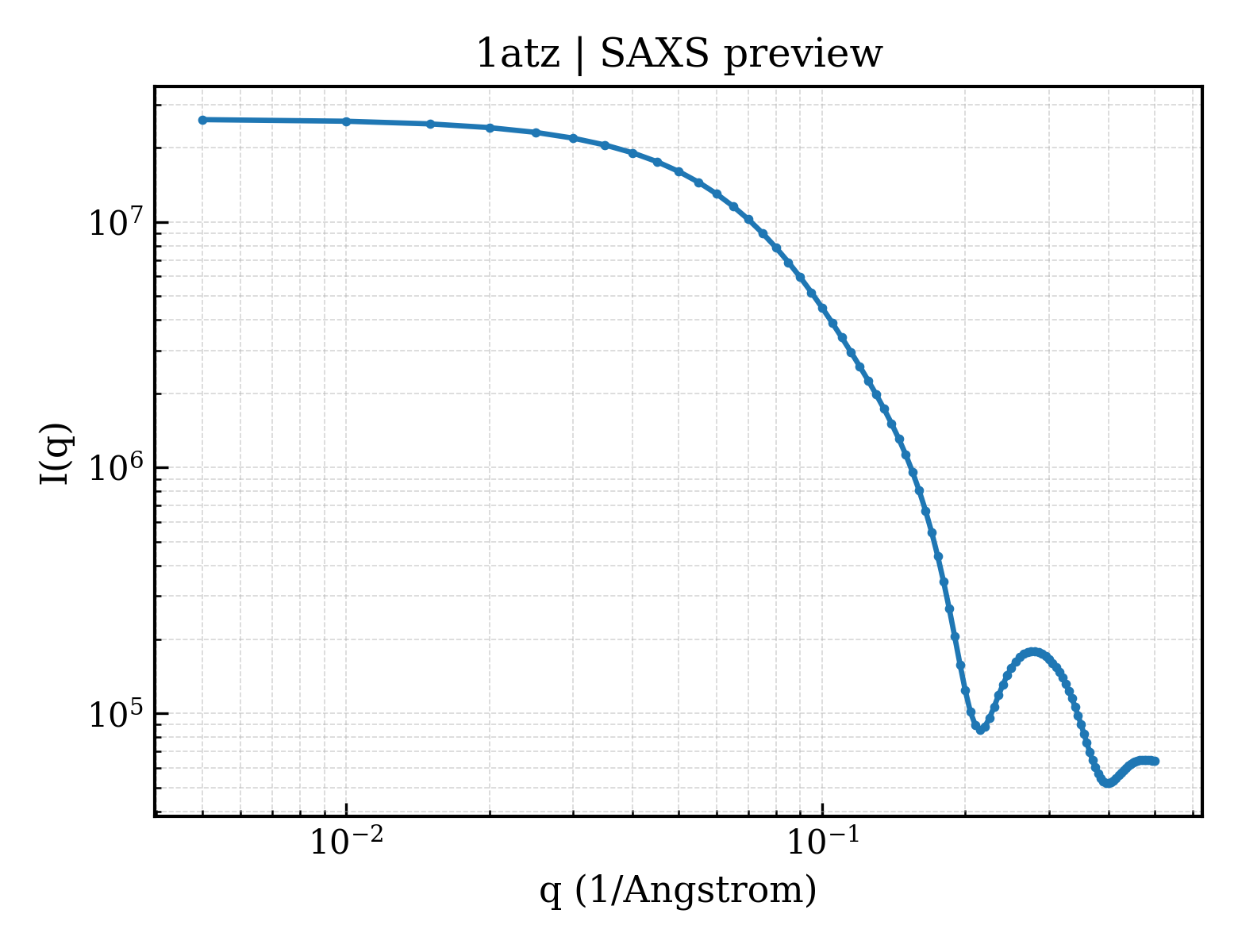

SAXS Profile

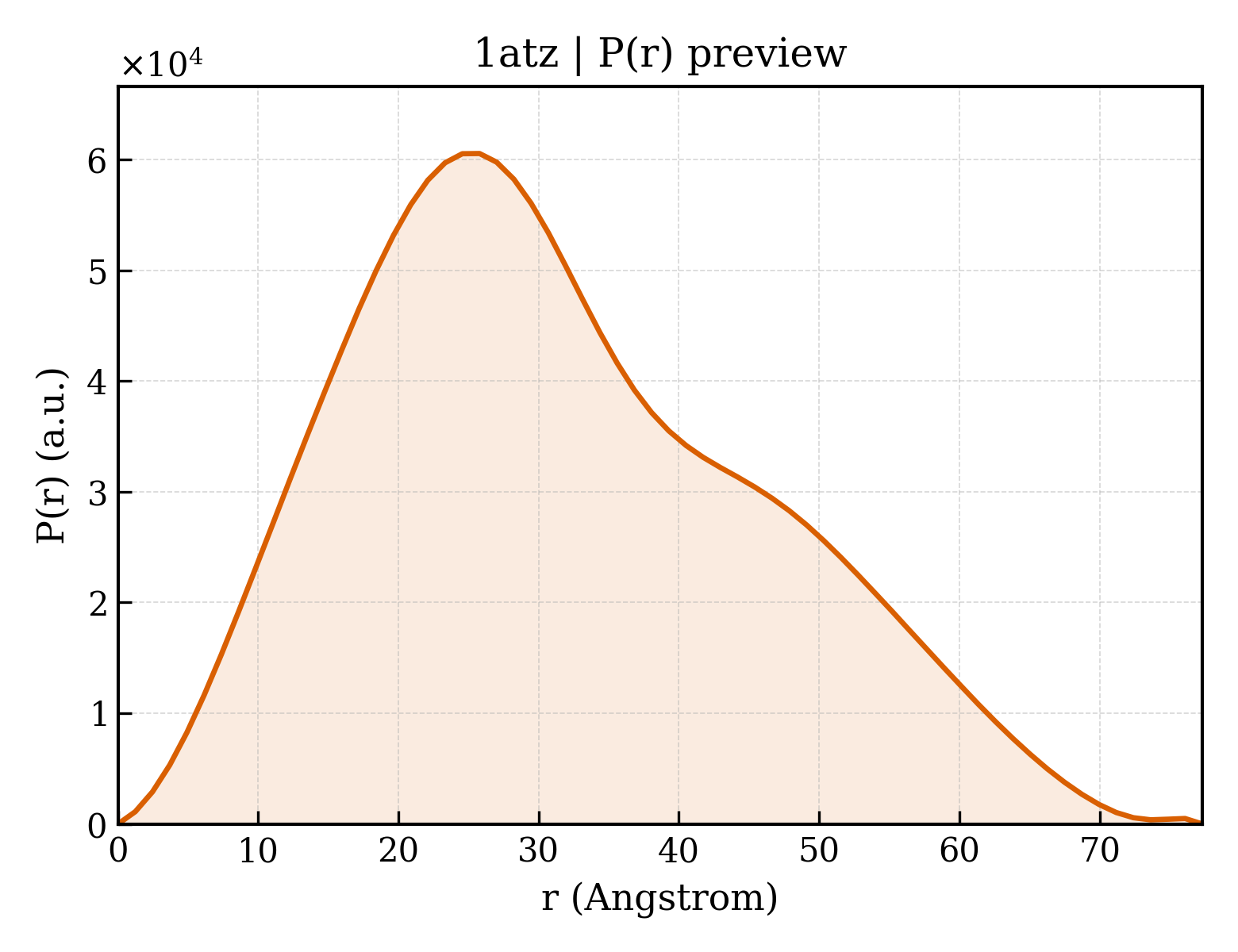

P(r) Distribution
1. Structure Basics
| entry_id | 1atz |
| deposition_date | 1997-08-15 |
| title | HUMAN VON WILLEBRAND FACTOR A3 DOMAIN |
| keywords | COLLAGEN-BINDING, HEMOSTASIS, DINUCLEOTIDE BINDING FOLD; COLLAGEN-BINDING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.33 Å |
| rg_electron | 23.25 Å |
| i0 | 26175700.00 |
| molecular_weight | 39747.0 kDa |
| excluded_volume | 50066 ų |
| envelope_volume | 58097 ų |
| shell_volume | 21719 ų |
| envelope_diameter | 77.5 Å |
| shell_rg | 29.26 Å |
| envelope_rg | 23.21 Å |
| shape_rg | 23.25 Å |
| total_rg | 23.98 Å |
| total_atoms | 2797 |
| n_residues | 373 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.3 Å |
| rg_real | 24.42 Å |
| rg_real_error | 0.52 Å |
| i0_real | 2.6180e+07 |
| i0_real_error | 3.9640e+05 |
| rg_reciprocal | 24.40 Å |
| i0_reciprocal | 26180000.0000 |
| total_estimate | 0.8795 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.8 Å |
| skewness | 0.417 |
| kurtosis | -0.492 |
| angular_range | — – 0.3250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5704000.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.843; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.956 |
