A1 DOMAIN OF VON WILLEBRAND FACTOR

Method: X-RAY DIFFRACTION D_max: 62.0 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1auq
deposition_date	1997-09-01
title	A1 DOMAIN OF VON WILLEBRAND FACTOR
keywords	WILLEBRAND, BLOOD COAGULATION, PLATELET, GLYCOPROTEIN; WILLEBRAND
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.85 Å
rg_electron	16.32 Å
i0	9931880.00
molecular_weight	23783.0 kDa
excluded_volume	29987 Å³
envelope_volume	33662 Å³
shell_volume	16975 Å³
envelope_diameter	61.3 Å
shell_rg	22.87 Å
envelope_rg	16.80 Å
shape_rg	16.30 Å
total_rg	17.43 Å
total_atoms	1668
n_residues	208
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

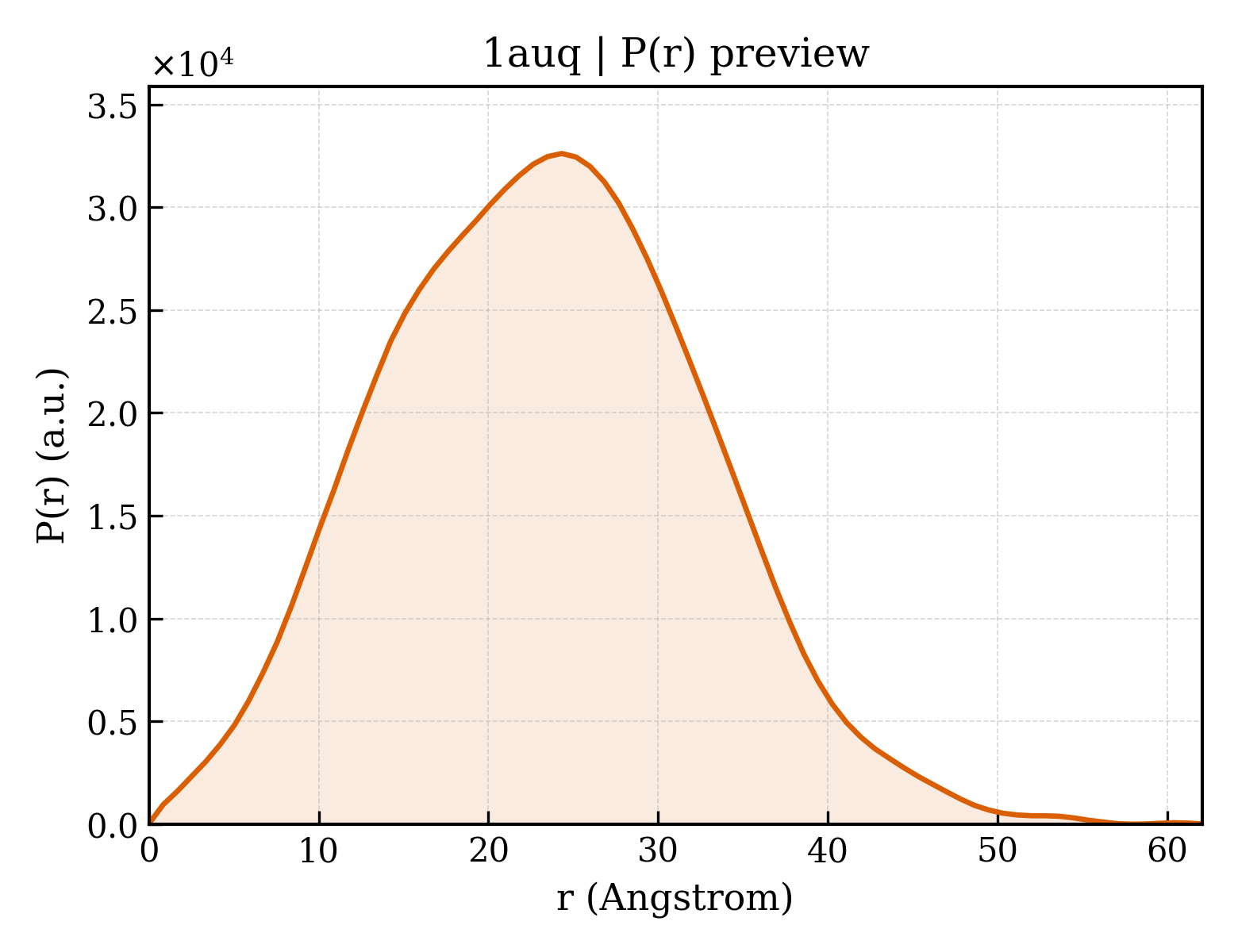

3. P(r) Analysis (GNOM)

dmax	62.0 Å
rg_real	17.73 Å
rg_real_error	0.44 Å
i0_real	9.9320e+06
i0_real_error	1.2250e+05
rg_reciprocal	17.74 Å
i0_reciprocal	9932000.0000
total_estimate	0.8446
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.3 Å
skewness	0.177
kurtosis	-0.211
angular_range	— – 0.4450 Å⁻¹
current_alpha	0.0000
highest_alpha	3206000.0000
n_real_points	75
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.661; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.996

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

length_a	86.395 Å
length_b	86.395 Å
length_c	68.125 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 61
int_tables_number	169
crystal_system	—

resolution	2.300 Å
resolution_low	15.000 Å
r_factor	0.1860
r_work	0.1860
r_free	0.2480

description	A1 DOMAIN OF VON WILLEBRAND FACTOR
formula_weight	23760.5 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1759

A1 DOMAIN OF VON WILLEBRAND FACTOR

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (3)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

Entity 3 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

description	CADMIUM ION
formula_weight	112.4 kDa
src_method	syn
entity_count	1

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	91

fit	/app/data/saxs_computation/au/1auq/1auq.fit
pddf	/app/data/pr_computation/au/1auq/1auq.pr.out
profile	/app/data/saxs_computation/au/1auq/1auq.dat
