1bwj
THE 1.8 A STRUCTURE OF MICROGRAVITY GROWN TETRAGONAL HEN EGG WHITE LYSOZYME
SAXS Profile

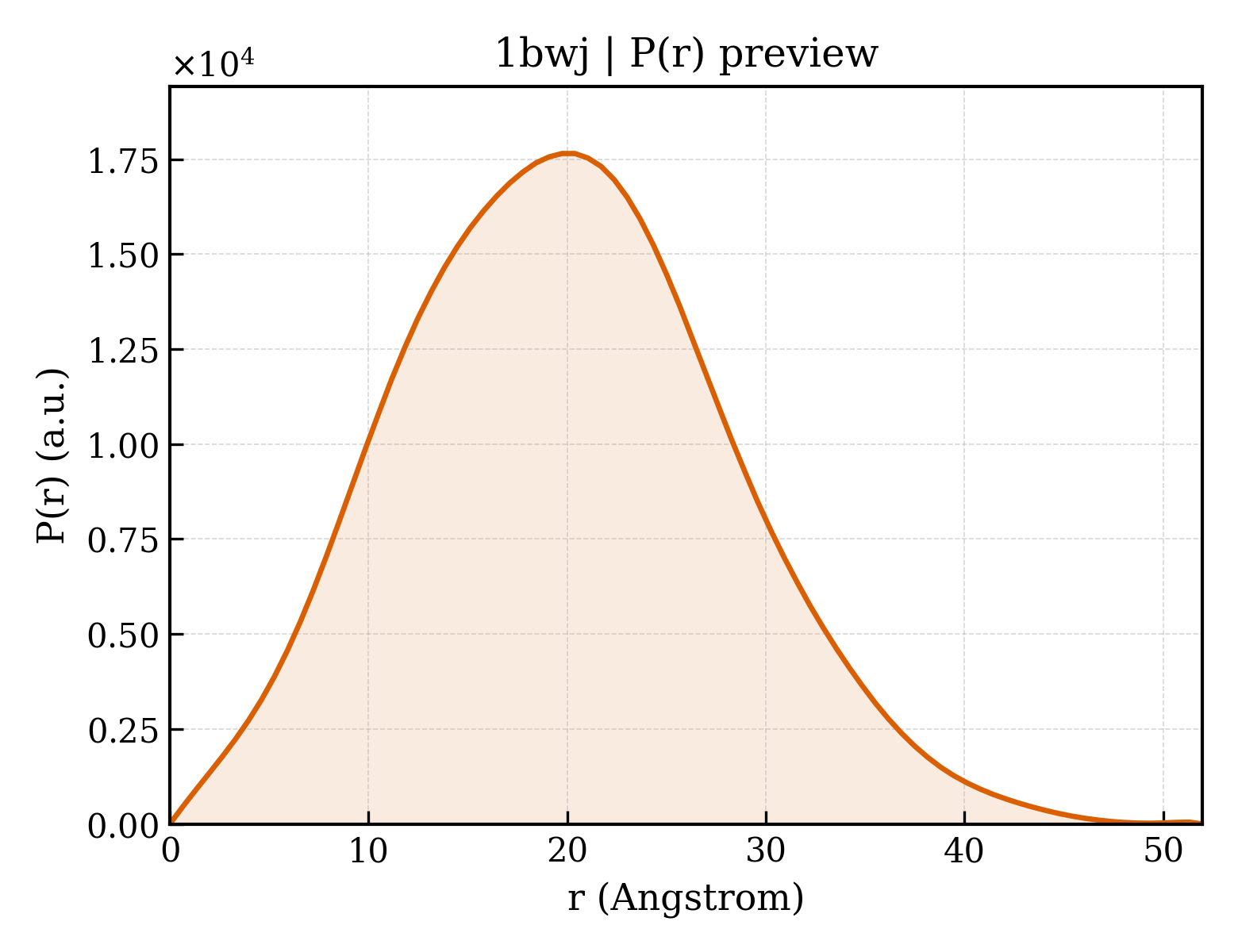

P(r) Distribution
1. Structure Basics
| entry_id | 1bwj |
| deposition_date | 1998-09-18 |
| title | THE 1.8 A STRUCTURE OF MICROGRAVITY GROWN TETRAGONAL HEN EGG WHITE LYSOZYME |
| keywords | LYSOZYME, 1, 4-BETA-N-ACETYLMURAMIDASE C, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.29 Å |
| rg_electron | 13.99 Å |
| i0 | 4692190.00 |
| molecular_weight | 14321.0 kDa |
| excluded_volume | 17437 ų |
| envelope_volume | 19537 ų |
| shell_volume | 12005 ų |
| envelope_diameter | 51.9 Å |
| shell_rg | 19.53 Å |
| envelope_rg | 14.29 Å |
| shape_rg | 13.97 Å |
| total_rg | 15.10 Å |
| total_atoms | 1001 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.0 Å |
| rg_real | 15.22 Å |
| rg_real_error | 0.33 Å |
| i0_real | 4.6920e+06 |
| i0_real_error | 5.7680e+04 |
| rg_reciprocal | 15.23 Å |
| i0_reciprocal | 4692000.0000 |
| total_estimate | 0.7206 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 51.3 Å |
| skewness | 0.239 |
| kurtosis | -0.206 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 815100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.994; Smooth: 0.994 |
