1c0t

CRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH BM+21.1326

Method: X-RAY DIFFRACTION Dmax: 110.2 Å Quality: EXCELLENT

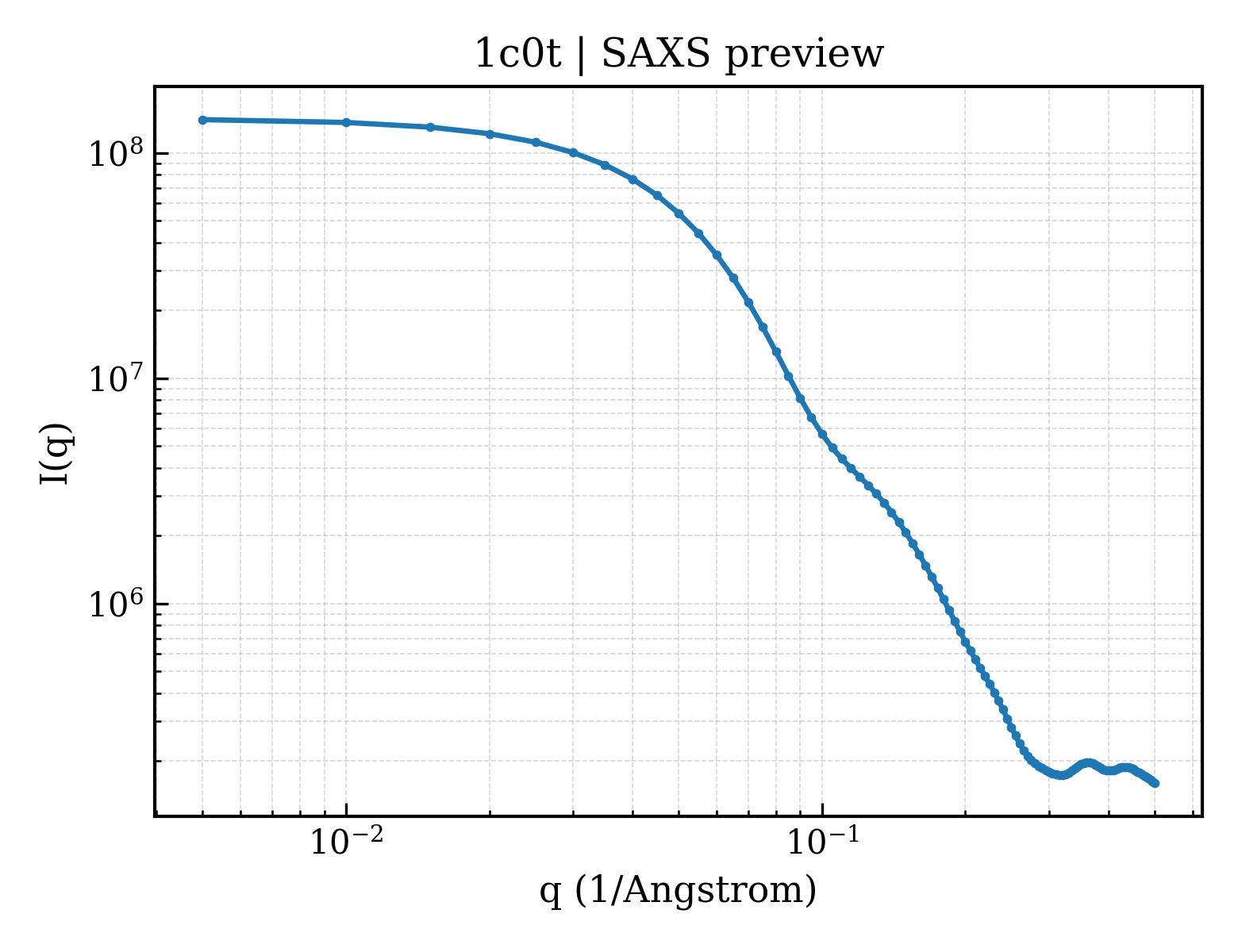

SAXS Profile

SAXS profile for 1c0t

P(r) Distribution

P(r) distribution for 1c0t

1. Structure Basics

entry_id1c0t
deposition_date1999-07-19
titleCRYSTAL STRUCTURE OF HIV-1 REVERSE TRANSCRIPTASE IN COMPLEX WITH BM+21.1326
keywordsHIV-1 REVERSE TRANSCRIPTASE, AIDS, NON-NUCLEOSIDE INHIBITOR, DRUG DESIGN, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier33.91
rg_electron33.13
i0141704000.00
molecular_weight100600.0 kDa
excluded_volume128220 ų
envelope_volume170100 ų
shell_volume42532 ų
envelope_diameter113.5
shell_rg40.28
envelope_rg32.70
shape_rg33.09
total_rg33.87
total_atoms7123
n_residues863
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax110.2
rg_real33.84
rg_real_error0.69
i0_real1.4170e+08
i0_real_error2.0710e+06
rg_reciprocal33.89
i0_reciprocal141700000.0000
total_estimate0.9007
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary42.2
skewness0.216
kurtosis-0.489
angular_range— – 0.2350 −1
current_alpha0.0001
highest_alpha20540000.0000
n_real_points48
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.941

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (10)

7. Files & Curves (10)
