SAXSdb — 1ex4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INTEGRASE

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 4 water × 2	Consistent with protein count
10	Protein homooligomer	Homooligomer	Protein 4	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 8 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 12	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 24 water × 12	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 12	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 24 water × 12	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 12	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 24 water × 12	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 12	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 24 water × 12	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 6	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 12 water × 6	Consistent with protein count
7	Protein homooligomer	Homooligomer	Protein 4	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 8 water × 4	Consistent with protein count
8	Protein homooligomer	Homooligomer	Protein 4	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 8 water × 4	Consistent with protein count
9	Protein homooligomer	Homooligomer	Protein 4	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1H2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–239； UniProt 53–289 Author chain B； PDBConstruct 3–239； UniProt 53–289

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ex4
Deposition date deposition_date	2000-04-28
Structure title title	HIV-1 INTEGRASE CATALYTIC CORE AND C-TERMINAL DOMAIN
Keywords keywords	SH3-like domain, nonspecific DNA binding beta sheet, cis-proline, Viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ex4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ex4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

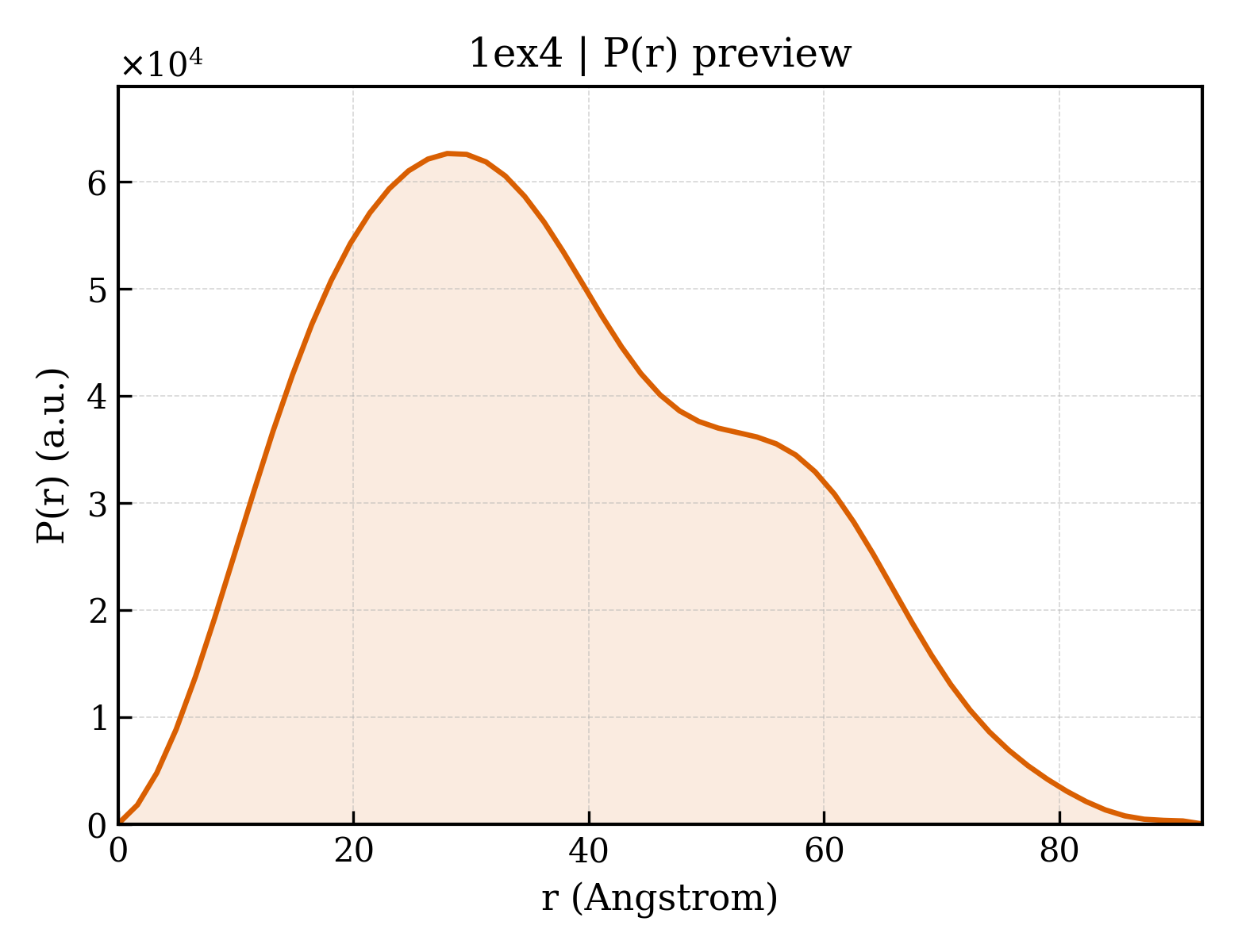

1ex4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.56 Å
Rg (electron density)	28.44 Å
Total Rg	28.97 Å
Atom count	3371
Residues	416
Excluded volume	60853 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ex4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ex4__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ex4__assembly_3__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1ex4__assembly_4__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1ex4__assembly_5__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1ex4__assembly_6__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1ex4__assembly_7__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
8	1	`1ex4__assembly_8__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
9	1	`1ex4__assembly_9__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
10	1	`1ex4__assembly_10__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	INTEGRASE
Molecular weight formula_weight	26427.0 kDa
Mutation mutation	C56S,W131D,F139D,F185K,C280S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3450

GSGQVDSSPGIWQLDCTHLEGKVILVAVHVASGYIEAEVIPAETGQETAYFLLKLAGRWPVKTIHTDNGSNFTGATVRAACDWAGIKQEDGIPYNPQSQGVVESMNKELKKIIGQVRDQAEHLKTAVQMAVFIHNKKRKGGIGGYSAGERIVDIIATDIQTKELQKQITKIQNFRVYYRDSRNSLWKGPAKLLWKGEGAVVIQDNSDIKVVPRRKAKIIRDYGKQMAGDDSVASRQDED

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	3-[(3-CHOLAMIDOPROPYL)DIMETHYLAMMONIO]-1-PROPANESULFONATE
Molecular weight formula_weight	614.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	79

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ex4a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.7 — DNA-binding domain of retroviral integrase
Family Family family	b.34.7.1 — DNA-binding domain of retroviral integrase

Domain ID domain_id	d1ex4a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.2 — Retroviral integrase, catalytic domain

Domain ID domain_id	d1ex4b1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.7 — DNA-binding domain of retroviral integrase
Family Family family	b.34.7.1 — DNA-binding domain of retroviral integrase

Domain ID domain_id	d1ex4b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.2 — Retroviral integrase, catalytic domain

CATH v4.4 (4 domains)

Domain ID domain_id	1ex4A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	1ex4A02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	10 — Integrase, C-terminal domain superfamily, retroviral

Domain ID domain_id	1ex4B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	1ex4B02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	10 — Integrase, C-terminal domain superfamily, retroviral

▶

Unit-cell length a length_a	103.990 Å
Unit-cell length b length_b	103.990 Å
Unit-cell length c length_c	101.380 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 3 1 2
Space-group number int_tables_number	149
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	28.260 Å
R factor r_factor	0.2580
R_work r_work	0.2580
R_free r_free	0.3060
