1cgw
;SITE DIRECTED MUTATIONS OF THE ACTIVE SITE RESIDUE TYROSINE 195 OF CYCLODEXTRIN GLYCOSYLTRANSFERASE FROM BACILLUS CIRCULANS STRAIN 251 AFFECTING ACTIVITY AND PRODUCT SPECIFICITY ;
SAXS Profile

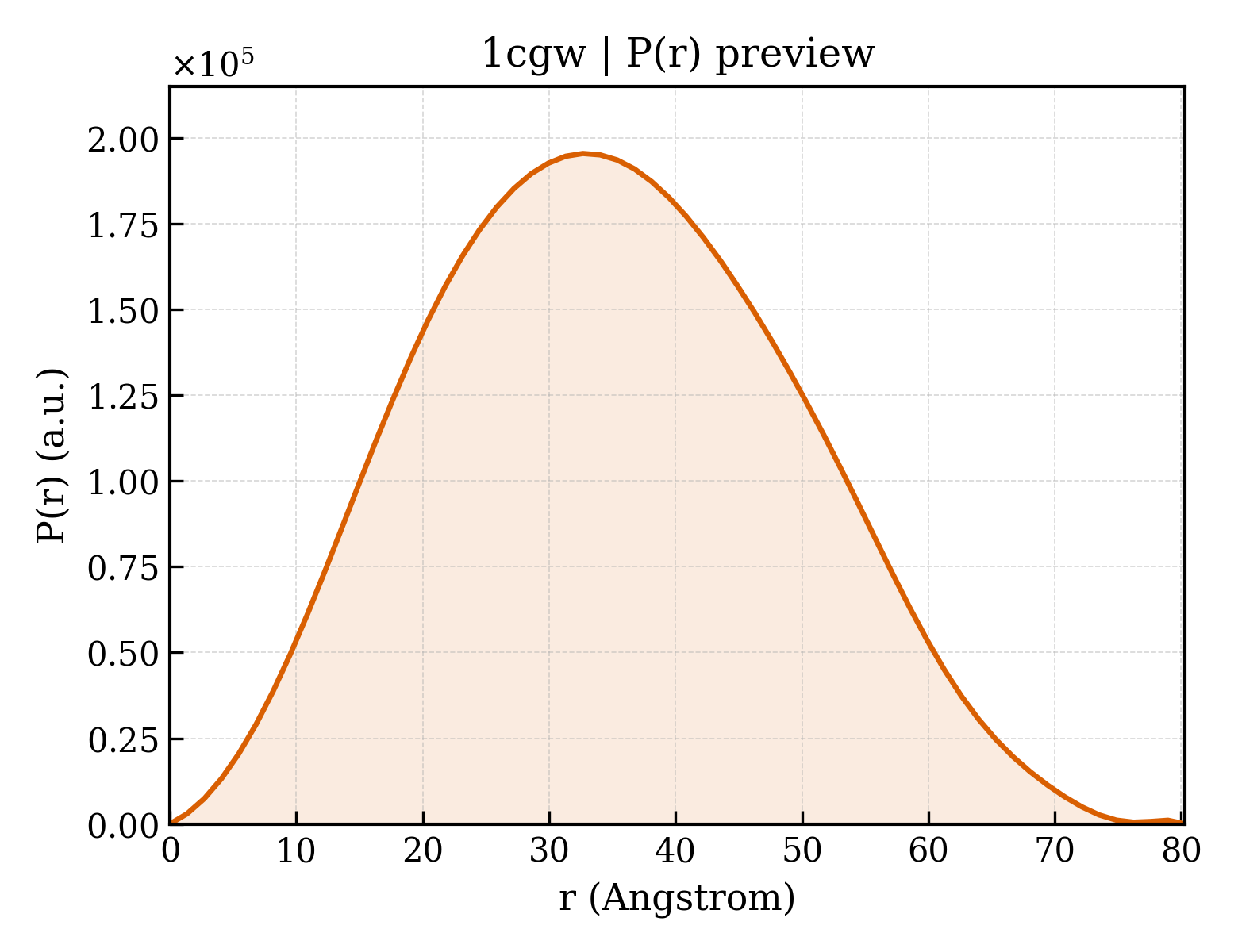

P(r) Distribution
1. Structure Basics
| entry_id | 1cgw |
| deposition_date | 1994-08-05 |
| title | ;SITE DIRECTED MUTATIONS OF THE ACTIVE SITE RESIDUE TYROSINE 195 OF CYCLODEXTRIN GLYCOSYLTRANSFERASE FROM BACILLUS CIRCULANS STRAIN 251 AFFECTING ACTIVITY AND PRODUCT SPECIFICITY ; |
| keywords | GLYCOSYLTRANSFERASE; GLYCOSYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.77 Å |
| rg_electron | 25.60 Å |
| i0 | 95509700.00 |
| molecular_weight | 75510.0 kDa |
| excluded_volume | 93715 ų |
| envelope_volume | 107600 ų |
| shell_volume | 34334 ų |
| envelope_diameter | 84.1 Å |
| shell_rg | 33.78 Å |
| envelope_rg | 25.58 Å |
| shape_rg | 25.59 Å |
| total_rg | 26.43 Å |
| total_atoms | 5327 |
| n_residues | 686 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.3 Å |
| rg_real | 26.62 Å |
| rg_real_error | 0.36 Å |
| i0_real | 9.5510e+07 |
| i0_real_error | 1.2590e+06 |
| rg_reciprocal | 26.66 Å |
| i0_reciprocal | 95510000.0000 |
| total_estimate | 0.9128 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 32.7 Å |
| skewness | 0.146 |
| kurtosis | -0.554 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17150000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.969 |
