1cxf
;COMPLEX OF A (D229N/E257Q) DOUBLE MUTANT CGTASE FROM BACILLUS CIRCULANS STRAIN 251 WITH MALTOTETRAOSE AT 120 K AND PH 9.1 OBTAINED AFTER SOAKING THE CRYSTAL WITH ALPHA-CYCLODEXTRIN ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cxf |
| deposition_date | 1995-07-28 |
| title | ;COMPLEX OF A (D229N/E257Q) DOUBLE MUTANT CGTASE FROM BACILLUS CIRCULANS STRAIN 251 WITH MALTOTETRAOSE AT 120 K AND PH 9.1 OBTAINED AFTER SOAKING THE CRYSTAL WITH ALPHA-CYCLODEXTRIN ; |
| keywords | GLYCOSYLTRANSFERASE; GLYCOSYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.69 Å |
| rg_electron | 25.54 Å |
| i0 | 100326000.00 |
| molecular_weight | 77557.0 kDa |
| excluded_volume | 96272 ų |
| envelope_volume | 108080 ų |
| shell_volume | 34454 ų |
| envelope_diameter | 83.5 Å |
| shell_rg | 33.78 Å |
| envelope_rg | 25.65 Å |
| shape_rg | 25.52 Å |
| total_rg | 26.39 Å |
| total_atoms | 5466 |
| n_residues | 686 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

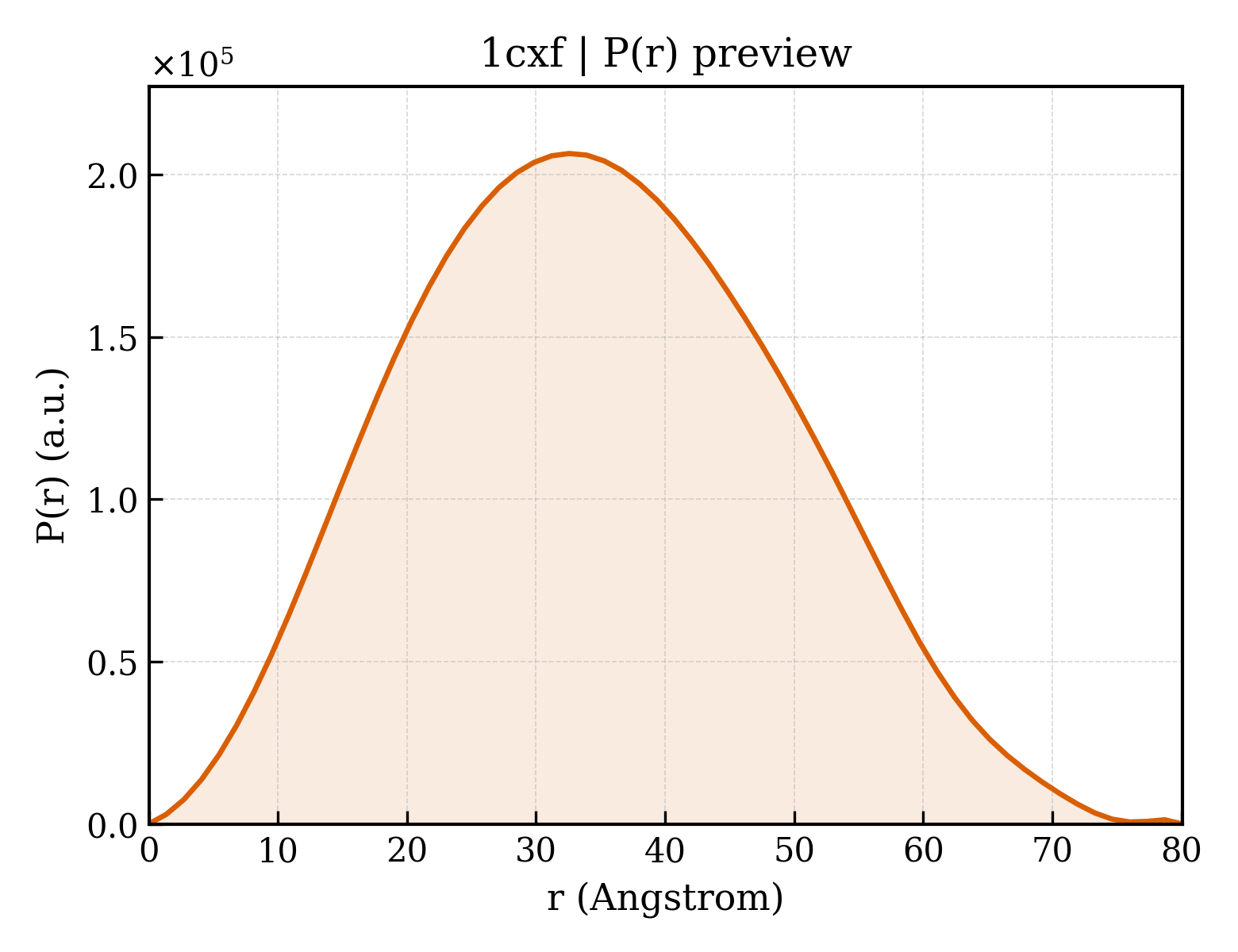

3. P(r) Analysis (GNOM)
| dmax | 80.1 Å |
| rg_real | 26.54 Å |
| rg_real_error | 0.38 Å |
| i0_real | 1.0030e+08 |
| i0_real_error | 1.2050e+06 |
| rg_reciprocal | 26.59 Å |
| i0_reciprocal | 100300000.0000 |
| total_estimate | 0.9108 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 32.6 Å |
| skewness | 0.159 |
| kurtosis | -0.537 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18670000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.965; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.946 |
