1cxe
;COMPLEX OF CGTASE WITH MALTOTETRAOSE AT ROOM TEMPERATURE AND PH 9.1 BASED ON DIFFRACTION DATA OF A CRYSTAL SOAKED WITH ALPHA-CYCLODEXTRIN ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cxe |
| deposition_date | 1995-07-28 |
| title | ;COMPLEX OF CGTASE WITH MALTOTETRAOSE AT ROOM TEMPERATURE AND PH 9.1 BASED ON DIFFRACTION DATA OF A CRYSTAL SOAKED WITH ALPHA-CYCLODEXTRIN ; |
| keywords | GLYCOSYLTRANSFERASE; GLYCOSYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.70 Å |
| rg_electron | 25.53 Å |
| i0 | 97284800.00 |
| molecular_weight | 76286.0 kDa |
| excluded_volume | 94688 ų |
| envelope_volume | 108390 ų |
| shell_volume | 34579 ų |
| envelope_diameter | 83.6 Å |
| shell_rg | 33.79 Å |
| envelope_rg | 25.57 Å |
| shape_rg | 25.52 Å |
| total_rg | 26.36 Å |
| total_atoms | 5380 |
| n_residues | 686 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

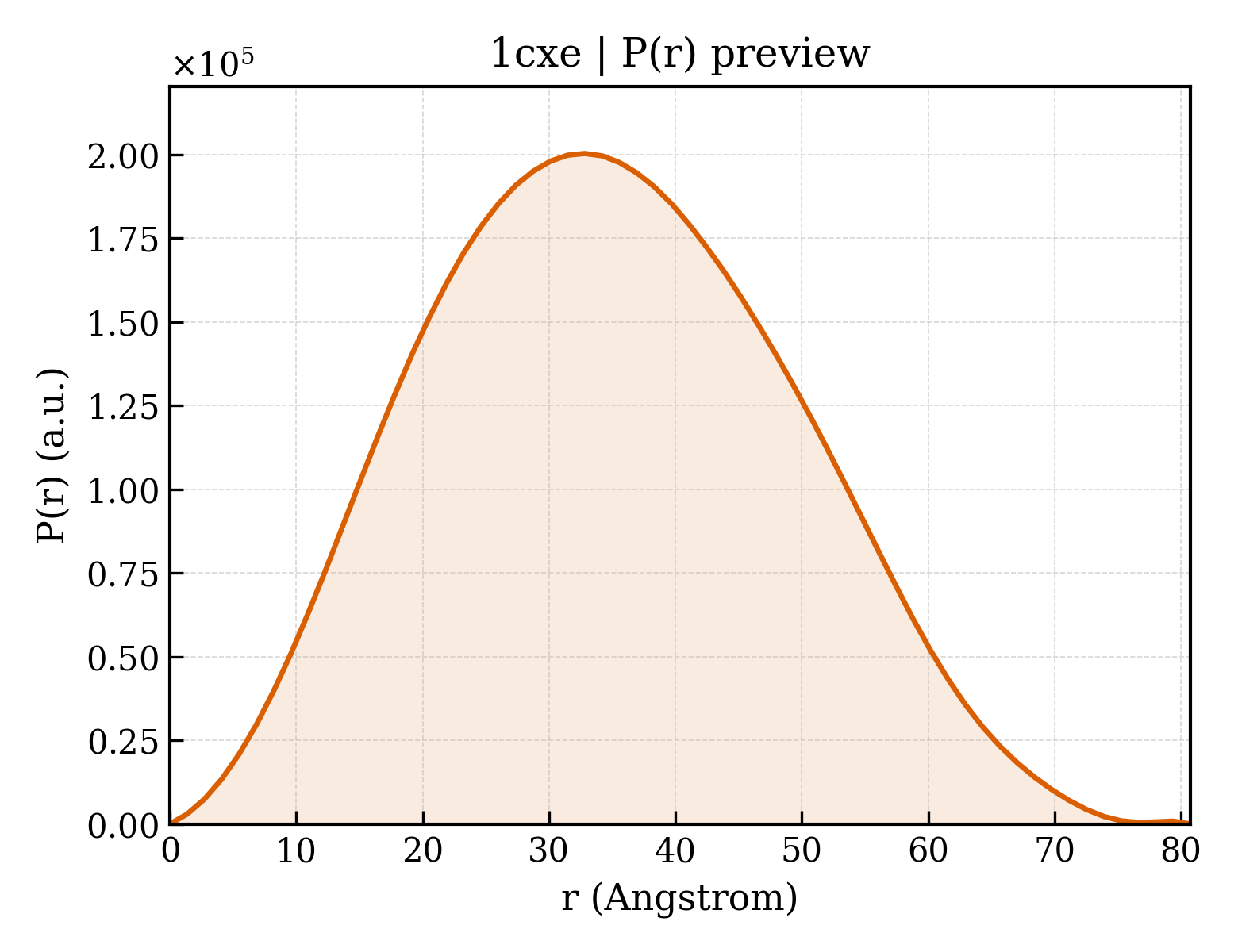

3. P(r) Analysis (GNOM)
| dmax | 80.7 Å |
| rg_real | 26.55 Å |
| rg_real_error | 0.36 Å |
| i0_real | 9.7280e+07 |
| i0_real_error | 1.2770e+06 |
| rg_reciprocal | 26.60 Å |
| i0_reciprocal | 97290000.0000 |
| total_estimate | 0.9118 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 32.8 Å |
| skewness | 0.153 |
| kurtosis | -0.547 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18930000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.976 |
