1cxk

COMPLEX BETWEEN A MALTONONAOSE SUBSTRATE AND BACILLUS CIRCULANS STRAIN 251 CGTASE E257Q/D229N

Method: X-RAY DIFFRACTION Dmax: 80.1 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 1cxk

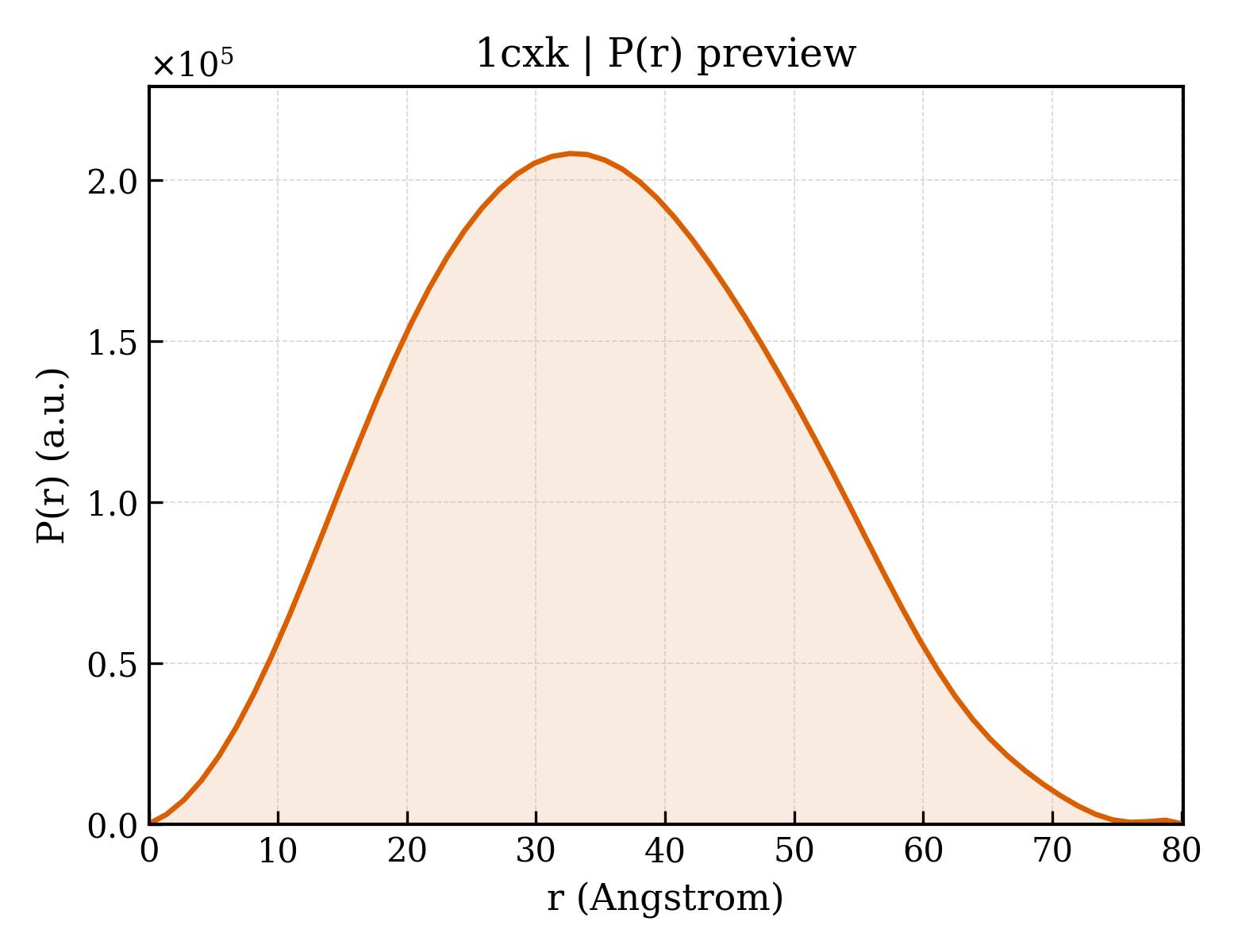

P(r) Distribution

P(r) distribution for 1cxk
▼

1. Structure Basics

entry_id1cxk
deposition_date1999-02-24
titleCOMPLEX BETWEEN A MALTONONAOSE SUBSTRATE AND BACILLUS CIRCULANS STRAIN 251 CGTASE E257Q/D229N
keywordsGLYCOSYL HYDROLASE FAMILY 13, ALPHA-AMYLASE FAMILY, SUBSTRATE COMPLEX, MALTONONAOSE, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier26.71 Å
rg_electron25.55 Å
i0101151000.00
molecular_weight77754.0 kDa
excluded_volume96501 ų
envelope_volume109970 ų
shell_volume34915 ų
envelope_diameter83.5 Å
shell_rg33.86 Å
envelope_rg25.67 Å
shape_rg25.53 Å
total_rg26.40 Å
total_atoms5479
n_residues686
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax80.1 Å
rg_real26.56 Å
rg_real_error0.44 Å
i0_real1.0120e+08
i0_real_error1.5010e+06
rg_reciprocal26.61 Å
i0_reciprocal101200000.0000
total_estimate0.9117
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary32.6 Å
skewness0.153
kurtosis-0.546
angular_range— – 0.2950 Å−1
current_alpha0.0000
highest_alpha21080000.0000
n_real_points60
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.965; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.960
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

▶

6. Citations (5)

▶

7. Files & Curves (10)
