1cxh
;COMPLEX OF CGTASE WITH MALTOTETRAOSE AT ROOM TEMPERATURE AND PH 9.6 BASED ON DIFFRACTION DATA OF A CRYSTAL SOAKED WITH MALTOHEPTAOSE ;
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cxh |
| deposition_date | 1995-07-31 |
| title | ;COMPLEX OF CGTASE WITH MALTOTETRAOSE AT ROOM TEMPERATURE AND PH 9.6 BASED ON DIFFRACTION DATA OF A CRYSTAL SOAKED WITH MALTOHEPTAOSE ; |
| keywords | GLYCOSYLTRANSFERASE; GLYCOSYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.57 Å |
| rg_electron | 25.41 Å |
| i0 | 97409200.00 |
| molecular_weight | 76286.0 kDa |
| excluded_volume | 94688 ų |
| envelope_volume | 107190 ų |
| shell_volume | 34347 ų |
| envelope_diameter | 83.2 Å |
| shell_rg | 33.61 Å |
| envelope_rg | 25.46 Å |
| shape_rg | 25.40 Å |
| total_rg | 26.24 Å |
| total_atoms | 5380 |
| n_residues | 686 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

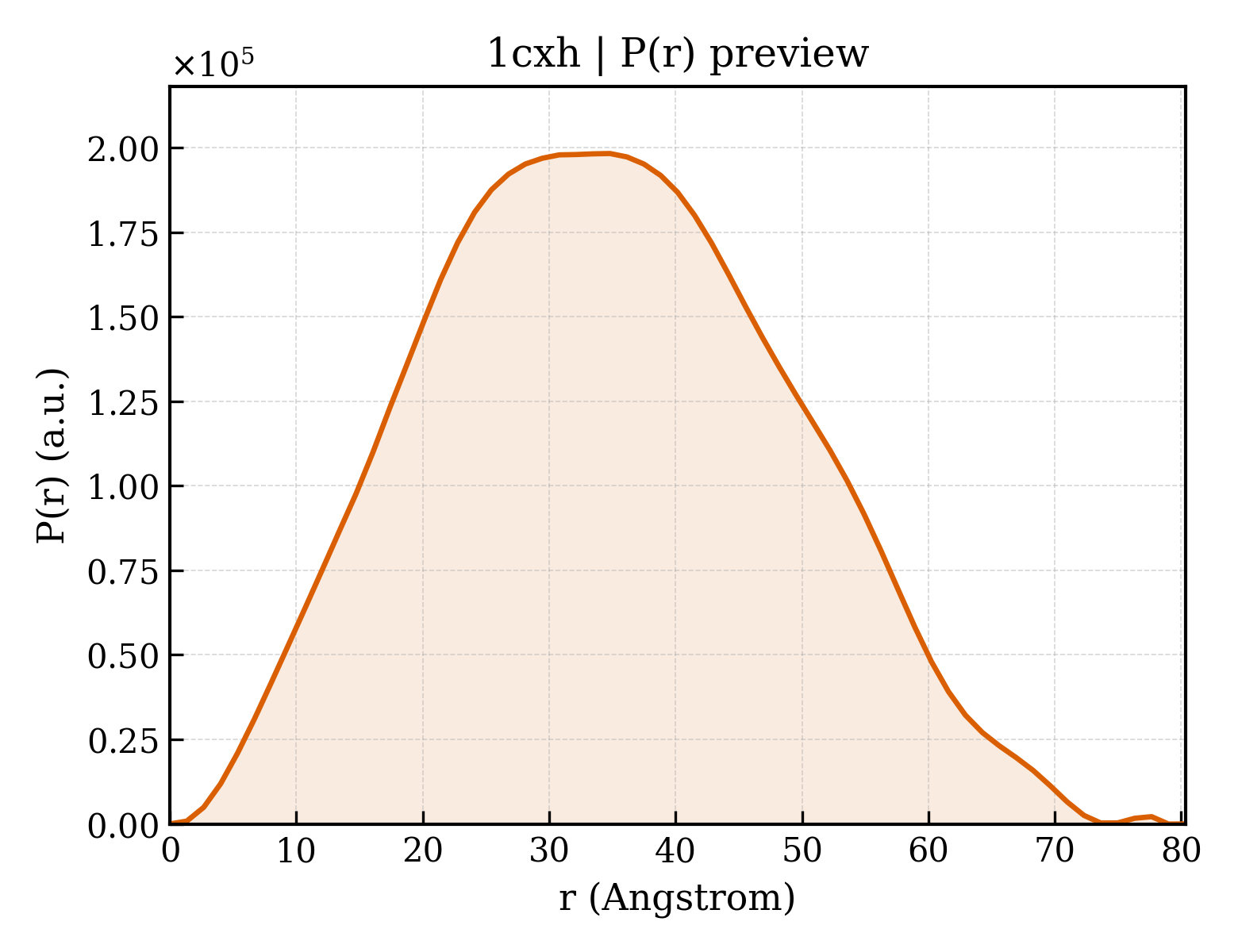

3. P(r) Analysis (GNOM)
| dmax | 80.3 Å |
| rg_real | 26.42 Å |
| rg_real_error | 0.46 Å |
| i0_real | 9.7410e+07 |
| i0_real_error | 1.1950e+06 |
| rg_reciprocal | 26.47 Å |
| i0_reciprocal | 97410000.0000 |
| total_estimate | 0.8320 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 34.8 Å |
| skewness | 0.156 |
| kurtosis | -0.550 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 18610000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.948; Stabil: 0.992; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000 |
