1dpx
STRUCTURE OF HEN EGG-WHITE LYSOZYME
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dpx |
| deposition_date | 1999-12-28 |
| title | STRUCTURE OF HEN EGG-WHITE LYSOZYME |
| keywords | PROTEIN-CHLORIDE COMPLEX, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.15 Å |
| rg_electron | 13.86 Å |
| i0 | 4727670.00 |
| molecular_weight | 14347.0 kDa |
| excluded_volume | 17442 ų |
| envelope_volume | 19265 ų |
| shell_volume | 11923 ų |
| envelope_diameter | 52.2 Å |
| shell_rg | 19.40 Å |
| envelope_rg | 14.17 Å |
| shape_rg | 13.84 Å |
| total_rg | 14.98 Å |
| total_atoms | 1000 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

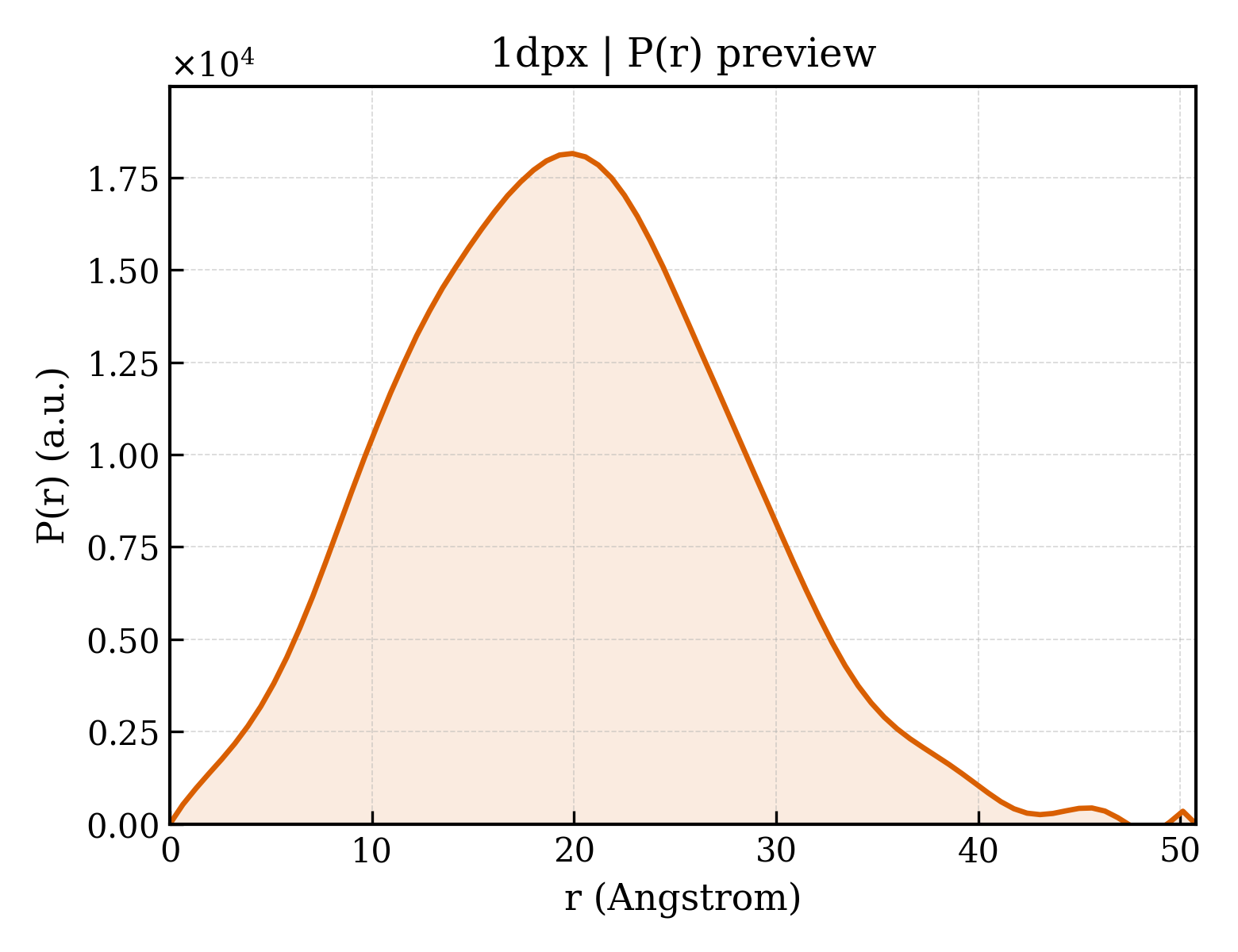

3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 15.08 Å |
| rg_real_error | 0.40 Å |
| i0_real | 4.7280e+06 |
| i0_real_error | 6.1210e+04 |
| rg_reciprocal | 15.08 Å |
| i0_reciprocal | 4728000.0000 |
| total_estimate | 0.7916 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.9 Å |
| skewness | 0.234 |
| kurtosis | -0.180 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 748600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.763; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
