1e8l
NMR solution structure of hen lysozyme

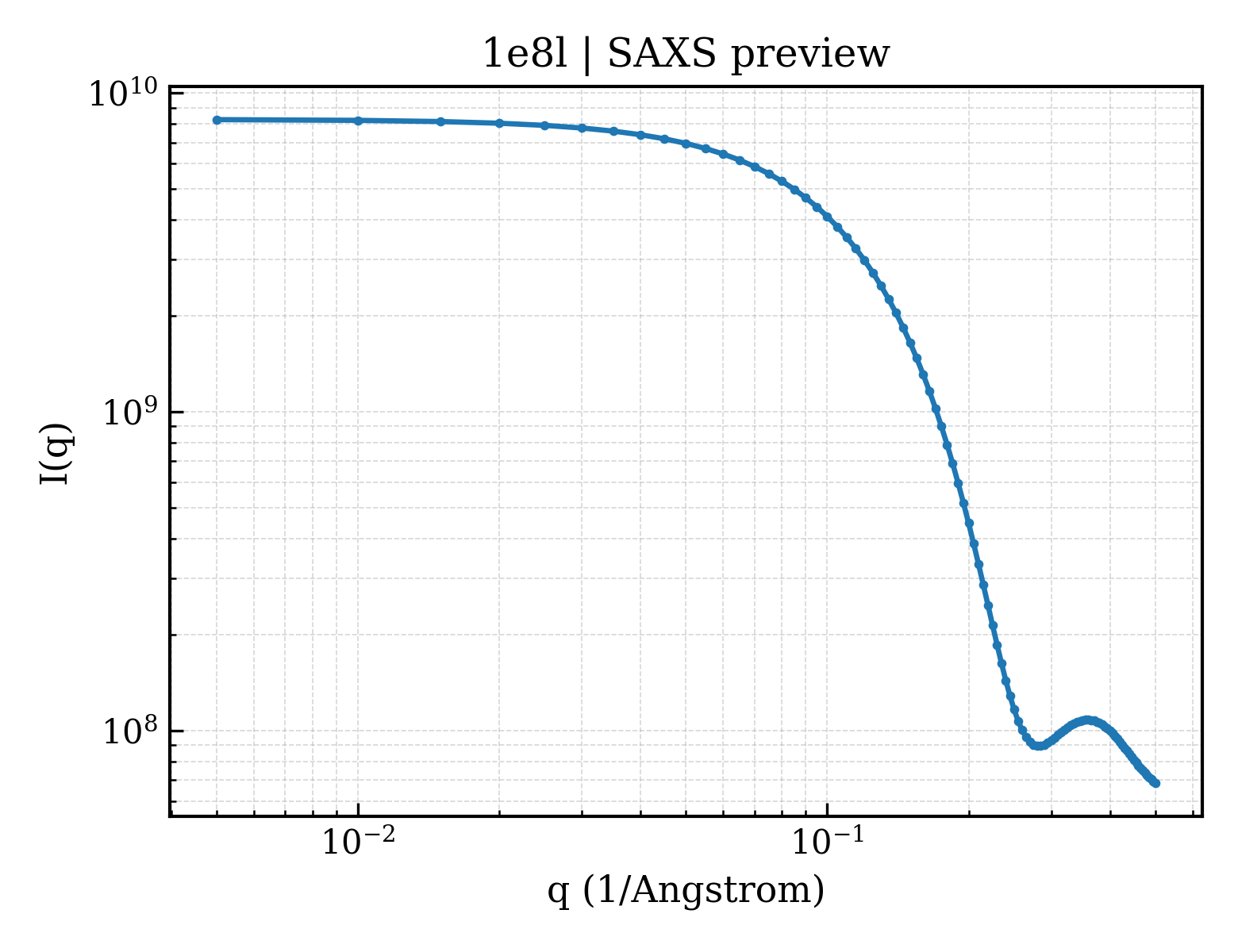

SAXS Profile

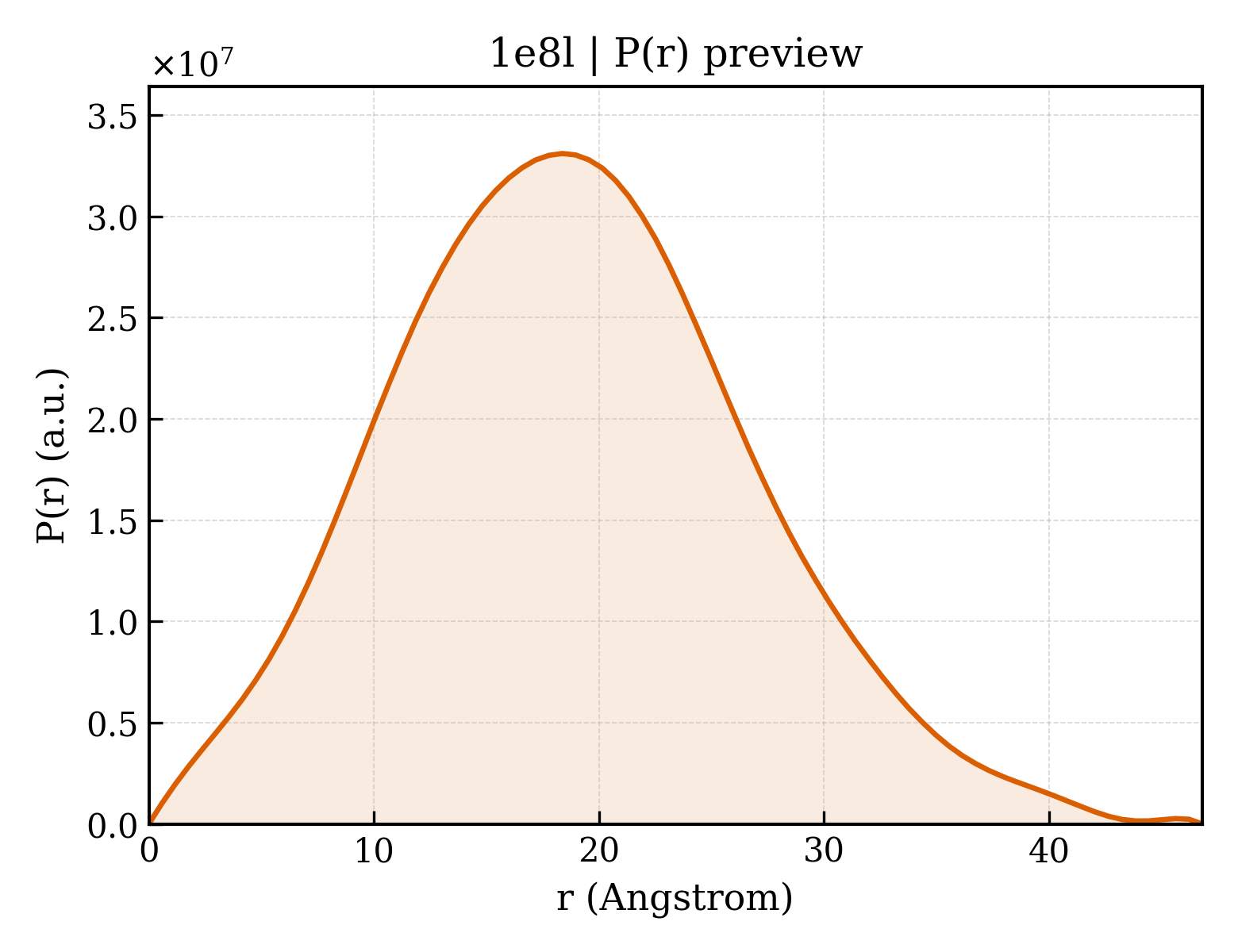

P(r) Distribution
1. Structure Basics
| entry_id | 1e8l |
| deposition_date | 2000-09-27 |
| title | NMR solution structure of hen lysozyme |
| keywords | HYDROLASE; HYDROLASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.44 Å |
| rg_electron | 14.06 Å |
| i0 | 8266920000.00 |
| molecular_weight | 716060.0 kDa |
| excluded_volume | 871870 ų |
| envelope_volume | 30653 ų |
| shell_volume | 15880 ų |
| envelope_diameter | 54.7 Å |
| shell_rg | 22.21 Å |
| envelope_rg | 16.50 Å |
| shape_rg | 14.03 Å |
| total_rg | 14.21 Å |
| total_atoms | 98050 |
| n_residues | 6450 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.8 Å |
| rg_real | 14.39 Å |
| rg_real_error | 0.32 Å |
| i0_real | 8.2670e+09 |
| i0_real_error | 1.0610e+08 |
| rg_reciprocal | 14.40 Å |
| i0_reciprocal | 8267000000.0000 |
| total_estimate | 0.8843 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.4 Å |
| skewness | 0.258 |
| kurtosis | -0.161 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 368000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.984 |
