1eo7

BACILLUS CIRCULANS STRAIN 251 CYCLODEXTRIN GLYCOSYLTRANSFERASE IN COMPLEX WITH MALTOHEXAOSE

Method: X-RAY DIFFRACTION Dmax: 80.0 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 1eo7

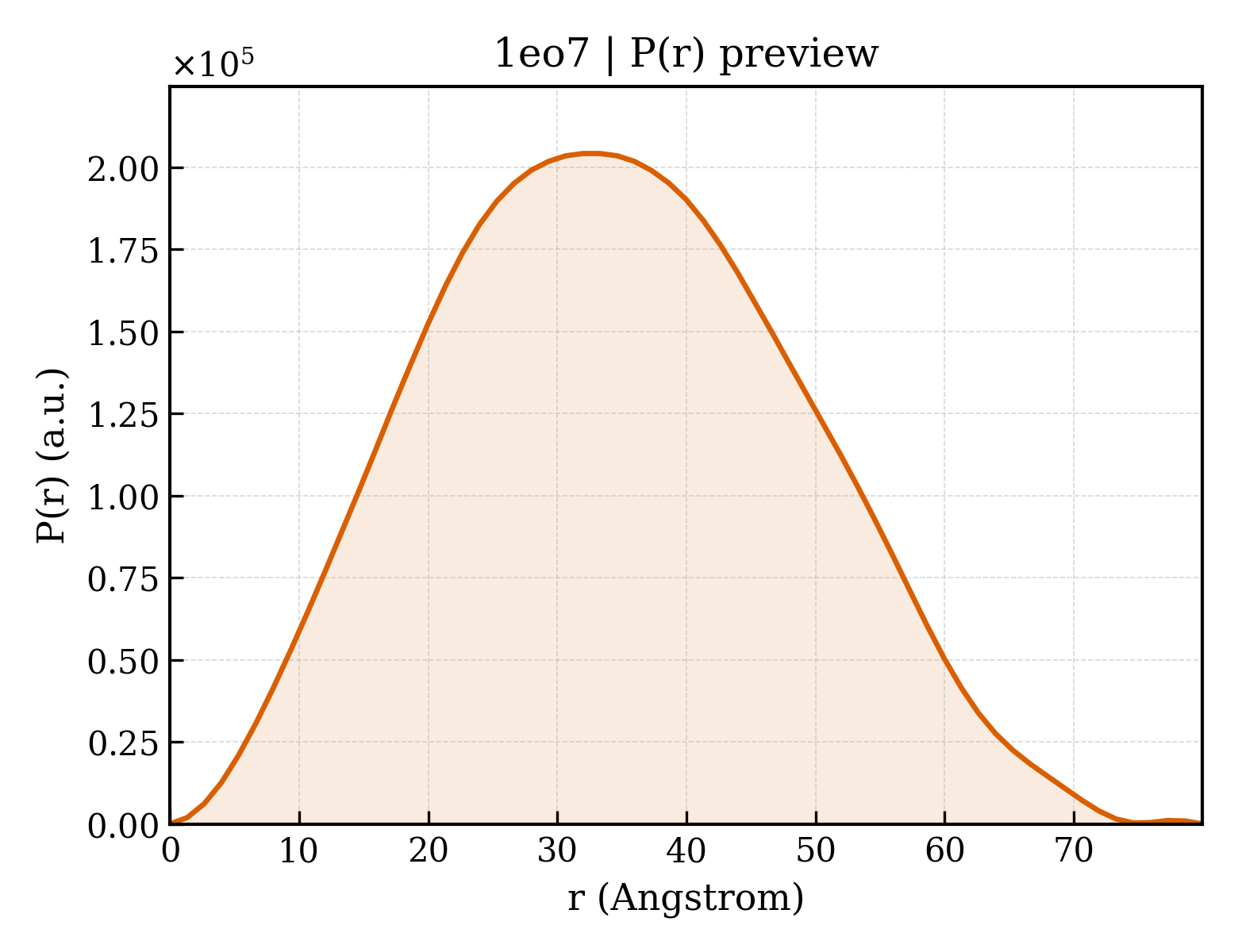

P(r) Distribution

P(r) distribution for 1eo7
▼

1. Structure Basics

entry_id1eo7
deposition_date2000-03-22
titleBACILLUS CIRCULANS STRAIN 251 CYCLODEXTRIN GLYCOSYLTRANSFERASE IN COMPLEX WITH MALTOHEXAOSE
keywords;ALPHA-AMYLASE, MALTOHEXAOSE, OLIGOSACCHARIDE, FAMILY 13 GLYCOSYL HYDROLASE, TRANSGLYCOSYLATION, INDUCED FIT, CATALYSIS, TRANSFERASE, CYCLODEXTRIN ;; TRANSFERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier26.44 Å
rg_electron25.28 Å
i099199000.00
molecular_weight77189.0 kDa
excluded_volume95848 ų
envelope_volume106310 ų
shell_volume34155 ų
envelope_diameter83.2 Å
shell_rg33.52 Å
envelope_rg25.38 Å
shape_rg25.27 Å
total_rg26.12 Å
total_atoms5440
n_residues686
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax80.0 Å
rg_real26.30 Å
rg_real_error0.48 Å
i0_real9.9200e+07
i0_real_error1.3600e+06
rg_reciprocal26.34 Å
i0_reciprocal99200000.0000
total_estimate0.9115
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary77.3 Å
skewness0.150
kurtosis-0.551
angular_range— – 0.3000 Å−1
current_alpha0.0000
highest_alpha19390000.0000
n_real_points61
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.957; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.986
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

▶

6. Citations (5)

▶

7. Files & Curves (10)
