SAXSdb — 1jsu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYCLIN-DEPENDENT KINASE-2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CYCLIN A × 1 （P20248） P27 × 1 （P46527） SULFATE ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDK2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–298； UniProt 1–298

CYCLIN A

Homo sapiens

UniProt P20248

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CYCLIN-DEPENDENT KINASE-2 × 1 （P24941） P27 × 1 （P46527） SULFATE ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCNA2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–260； UniProt 173–432

P27

Homo sapiens

UniProt P46527

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CYCLIN-DEPENDENT KINASE-2 × 1 （P24941） CYCLIN A × 1 （P20248） SULFATE ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDN1B_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–84； UniProt 23–106

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jsu
Deposition date deposition_date	1996-07-03
Structure title title	P27(KIP1)/CYCLIN A/CDK2 COMPLEX
Keywords keywords	;COMPLEX (TRANSFERASE-CYCLIN-INHIBITOR), KINASE, CELL CYCLE, CELL DIVISION, CDK, CYCLIN, INHIBITOR, COMPLEX (TRANSFERASE-CYCLIN-INHIBITOR) complex ;; COMPLEX (TRANSFERASE/CYCLIN/INHIBITOR)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jsu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jsu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

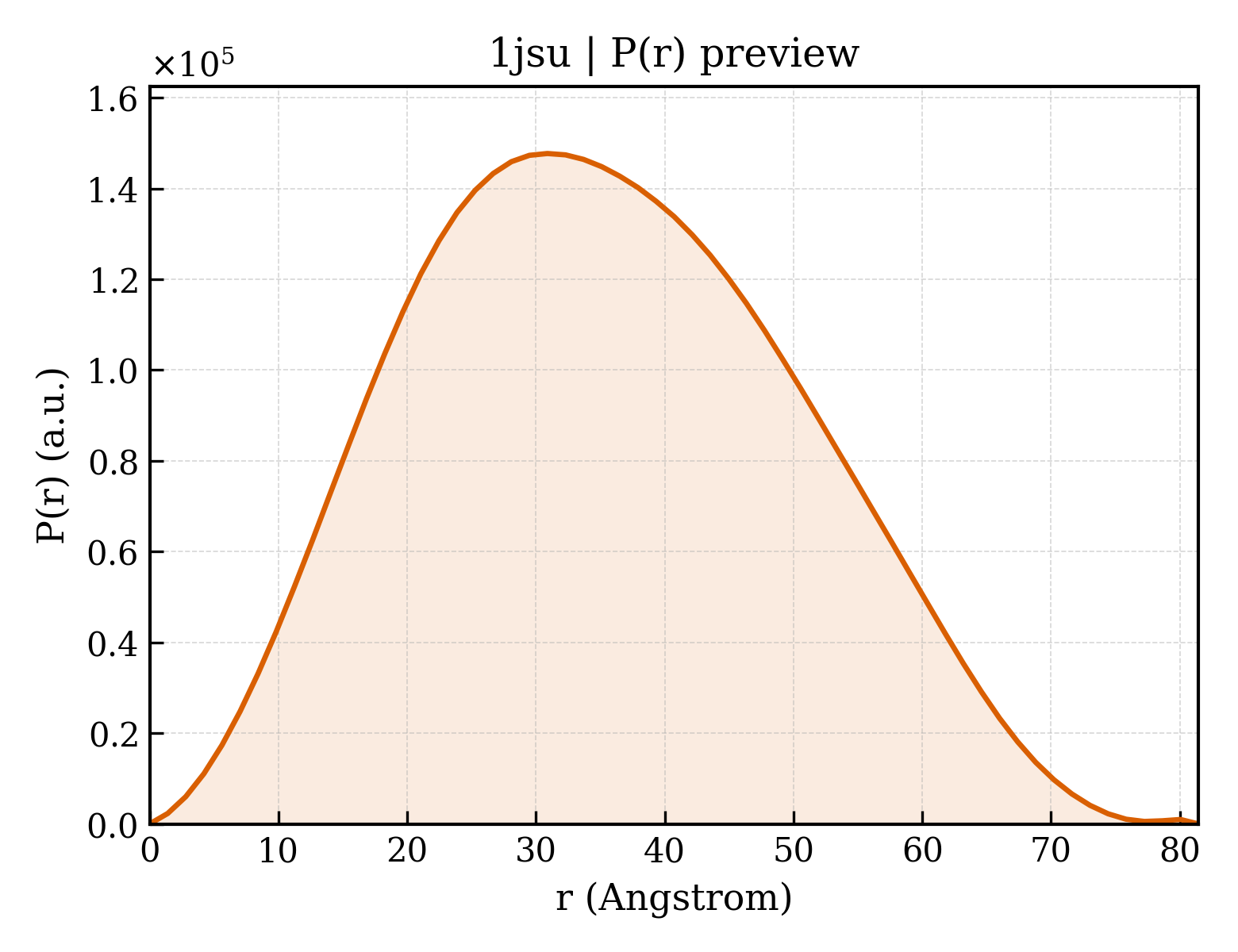

1jsu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.15 Å
Rg (electron density)	26.05 Å
Total Rg	26.92 Å
Atom count	4985
Residues	612
Excluded volume	89620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jsu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYCLIN-DEPENDENT KINASE-2
Molecular weight formula_weight	34056.5 kDa
EC 编号 ec_number	2.7.1.-
Mutation mutation	PHOSPHORYLATED AT THR A 160
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5182

MENFQKVEKIGEGTYGVVYKARNKLTGEVVALKKIRLDTETEGVPSTAIREISLLKELNHPNIVKLLDVIHTENKLYLVFEFLHQDLKKFMDASALTGIPLPLIKSYLFQLLQGLAFCHSHRVLHRDLKPQNLLINTEGAIKLADFGLARAFGVPVRTYTHEVVTLWYRAPEILLGCKYYSTAVDIWSLGCIFAEMVTRRALFPGDSEIDQLFRIFRTLGTPDEVVWPGVTSMPDYKPSFPKWARQDFSKVVPPLDEDGRSLLSQMLHYDPNKRISAKAALAHPFFQDVTKPVPHLRL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	CYCLIN A
Molecular weight formula_weight	29867.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

NEVPDYHEDIHTYLREMEVKCKPKVGYMKKQPDITNSMRAILVDWLVEVGEEYKLQNETLHLAVNYIDRFLSSMSVLRGKLQLVGTAAMLLASKFEEIYPPEVAEFVYITDDTYTKKQVLRMEHLVLKVLTFDLAAPTVNQFLTQYFLHQQPANCKVESLAMFLGELSLIDADPYLKYLPSVIAGAAFHLALYTVTGQSWPESLIRKTGYTLESLKPCLMDLHQTYLKAPQHAQQSIREKYKNSKYHGVSLLNPPETLNL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	P27
Molecular weight formula_weight	9970.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

HPKPSACRNLFGPVDHEELTRDLEKHCRDMEEASQRKWNFDFQNHKPLEGKYEWQEVEKGSLPEFYYRPPRPPKGACKVPAQES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	197

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jsua_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.7 — Protein kinases, catalytic subunit

Domain ID domain_id	d1jsub1
Class class	a — All alpha proteins
Fold Fold fold	a.74 — Cyclin-like
Superfamily Superfamily superfamily	a.74.1 — Cyclin-like
Family Family family	a.74.1.1 — Cyclin

Domain ID domain_id	d1jsub2
Class class	a — All alpha proteins
Fold Fold fold	a.74 — Cyclin-like
Superfamily Superfamily superfamily	a.74.1 — Cyclin-like
Family Family family	a.74.1.1 — Cyclin

Domain ID domain_id	d1jsuc_
Class class	j — Peptides
Fold Fold fold	j.55 — P27(KIP1) fragment 22-106
Superfamily Superfamily superfamily	j.55.1 — P27(KIP1) fragment 22-106
Family Family family	j.55.1.1 — P27(KIP1) fragment 22-106

CATH v4.4 (5 domains)

Domain ID domain_id	1jsuA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1jsuA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	1jsuB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	1jsuB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	472 — Cyclin A; domain 1
Homologous superfamily homologous superfamily	10 — Cyclin-like

Domain ID domain_id	1jsuC00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	365 — p27
Homologous superfamily homologous superfamily	10 — p27

▶

Unit-cell length a length_a	73.800 Å
Unit-cell length b length_b	78.300 Å
Unit-cell length c length_c	137.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	—
R_work r_work	0.1920
R_free r_free	0.2600

P27(KIP1)/CYCLIN A/CDK2 COMPLEX
