SAXSdb — 1kk7

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kk7
沉积日期 deposition_date	2001-12-06
结构标题 title	SCALLOP MYOSIN IN THE NEAR RIGOR CONFORMATION
关键词 keywords	Near rigor, Myosin, Mechanics of MOTOR, nucleotide free, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.20 Å
回转半径 Rg (电子) rg_electron	48.85 Å
零角强度 I(0) i0	206451000.00
分子量 molecular_weight	115530.0 kDa
排除体积 excluded_volume	143560 Å³
包络体积 envelope_volume	217320 Å³
水化壳体积 shell_volume	43118 Å³
包络直径 envelope_diameter	184.0 Å
壳层 Rg shell_rg	43.53 Å
包络 Rg envelope_rg	49.47 Å
形状 Rg shape_rg	48.87 Å
总 Rg total_rg	48.50 Å
总原子数 total_atoms	8137
残基数 n_residues	1101
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	174.1 Å
Rg (实空间) rg_real	48.56 Å
Rg 误差 (实空间) rg_real_error	2.65 Å
I(0) (实空间) i0_real	2.0650e+08
I(0) 误差 (实空间) i0_real_error	4.1680e+06
Rg (倒空间) rg_reciprocal	47.21 Å
I(0) (倒空间) i0_reciprocal	206100000.0000
解质量估计 total_estimate	0.6572
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	36.9 Å
偏度 Skewness skewness	0.777
峰度 Kurtosis kurtosis	-0.122
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	21590000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.270; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.271; Smooth: 0.460

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	MYOSIN HEAVY CHAIN, STRIATED MUSCLE
分子量 formula_weight	95543.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8147

MNIDFSDPDFQYLAVDRKKLMKEQTAAFDGKKNCWVPDEKEGFASAEIQSSKGDEITVKIVADSSTRTVKKDDIQSMNPPKFEKLEDMANMTYLNEASVLYNLRSRYTSGLIYTYSGLFCIAVNPYRRLPIYTDSVIAKYRGKRKTEIPPHLFSVADNAYQNMVTDRENQSCLITGESGAGKTENTKKVIMYLAKVACAVKKKDEEASDKKEGSLEDQIIQANPVLEAYGNAKTTRNNNSSRFGKFIRIHFGPTGKIAGADIETYLLEKSRVTYQQSAERNYHIFYQICSNAIPELNDVMLVTPDSGLYSFINQGCLTVDNIDDVEEFKLCDEAFDILGFTKEEKQSMFKCTASILHMGEMKFKQRPREEQAESDGTAEAEKVAFLCGINAGDLLKALLKPKVKVGTEMVTKGQNMNQVVNSVGALAKSLYDRMFNWLVRRVNKTLDTKAKRNYYIGVLDIAGFEIFDFNSFEQLCINYTNERLQQFFNHHMFILEQEEYKKEGIAWEFIDFGMDLQMCIDLIEKPMGILSILEEECMFPKADDKSFQDKLYQNHMGKNRMFTKPGKPTRPNQGPAHFELHHYAGNVPYSITGWLEKNKDPINENVVALLGASKEPLVAELFKAPEEPAGGGKKKKGKSSAFQTISAVHRESLNKLMKNLYSTHPHFVRCIIPNELKQPGLVDAELVLHQLQCNGVLEGIRICRKGFPSRLIYSEFKQRYSILAPNAIPQGFVDGKTVSEKILAGLQMDPAEYRLGTTKVFFKAGVLGNLEEMRDERLSKIISMFQAHIRGYLIRKAYKKLQDQRIGLSVIQRNIRKWLVLRNWQWWKLYSKVKPLL

Entity 2 polymer

描述 description	MYOSIN REGULATORY LIGHT CHAIN, STRIATED ADDUCTOR MUSCLE
分子量 formula_weight	17560.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

ADKAASGVLTKLPQKQIQEMKEAFSMIDVDRDGFVSKEDIKAISEQLGRAPDDKELTAMLKEAPGPLNFTMFLSIFSDKLSGTDSEETIRNAFAMFDEQETKKLNIEYIKDLLENMGDNFNKDEMRMTFKEAPVEGGKFDYVKFTAMIKGSGEEEA

Entity 3 polymer

描述 description	MYOSIN ESSENTIAL LIGHT CHAIN, STRIATED ADDUCTOR MUSCLE
分子量 formula_weight	17635.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

PKLSQDEIDDLKDVFELFDFWDGRDGAVDAFKLGDVCRCLGINPRNEDVFAVGGTHKMGEKSLPFEEFLPAYEGLMDCEQGTFADYMEAFKTFDREGQGFISGAELRHVLTALGERLSDEDVDEIIKLTDLQEDLEGNVKYEDFVKKVMAGPYPDK

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	10

▼

6. 折叠分类 (SCOP + CATH) 11 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1kk7a1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.3 — Myosin S1 fragment, N-terminal domain
家族 Family family	b.34.3.1 — Myosin S1 fragment, N-terminal domain

结构域编号 domain_id	d1kk7a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.9 — Motor proteins

结构域编号 domain_id	d1kk7y_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1kk7z_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (7 domains)

结构域编号 domain_id	1kk7A01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	360 — Myosin S1 fragment, N-terminal

结构域编号 domain_id	1kk7A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	850 — Kinesin
同源超家族 H-superfamily homologous superfamily	10 — Kinesin motor domain

结构域编号 domain_id	1kk7A04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	530 —

结构域编号 domain_id	1kk7Y01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kk7Y02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kk7Z01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kk7Z02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	159.849 Å
晶胞边长 b length_b	51.227 Å
晶胞边长 c length_c	84.073 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.48 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	48.720 Å
R 因子 r_factor	0.2630
R_work r_work	0.2590
R_free r_free	0.3130

fit	/app/data/saxs_computation/kk/1kk7/1kk7.fit
pddf	/app/data/pr_computation/kk/1kk7/1kk7.pr.out
profile	/app/data/saxs_computation/kk/1kk7/1kk7.dat

SCALLOP MYOSIN IN THE NEAR RIGOR CONFORMATION

SAXS 散射曲线 SAXS Profile

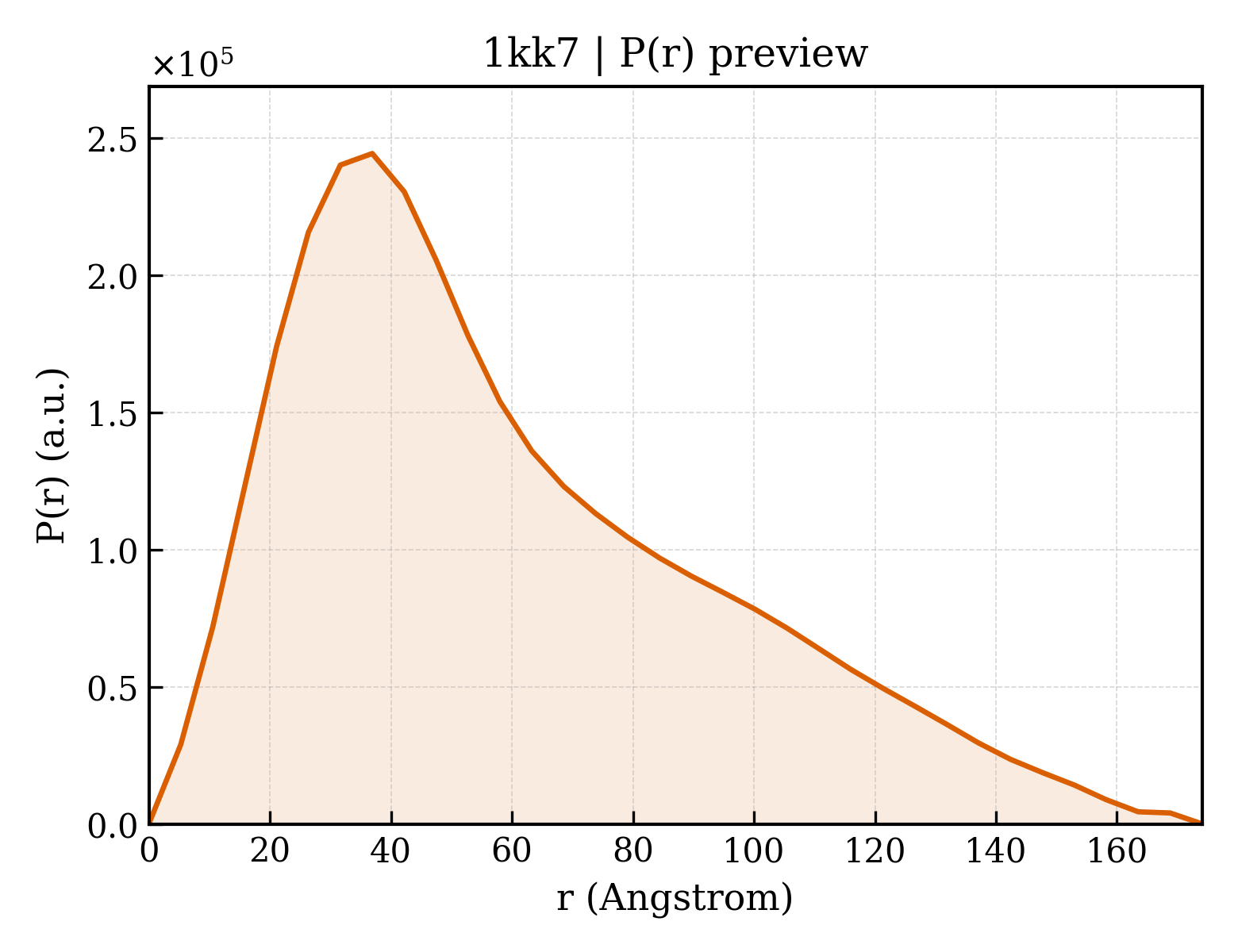

P(r) 距离分布 P(r) Distribution
