SAXSdb — 1kqm

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kqm
沉积日期 deposition_date	2002-01-07
结构标题 title	SCALLOP MYOSIN S1-AMPPNP IN THE ACTIN-DETACHED CONFORMATION
关键词 keywords	actin-detached, Myosin, Mechanics of MOTOR, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.80 Å
回转半径 Rg (电子) rg_electron	49.58 Å
零角强度 I(0) i0	211699000.00
分子量 molecular_weight	117640.0 kDa
排除体积 excluded_volume	146450 Å³
包络体积 envelope_volume	226090 Å³
水化壳体积 shell_volume	42688 Å³
包络直径 envelope_diameter	176.4 Å
壳层 Rg shell_rg	46.11 Å
包络 Rg envelope_rg	49.82 Å
形状 Rg shape_rg	49.58 Å
总 Rg total_rg	49.42 Å
总原子数 total_atoms	8269
残基数 n_residues	1072
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	166.3 Å
Rg (实空间) rg_real	49.07 Å
Rg 误差 (实空间) rg_real_error	2.14 Å
I(0) (实空间) i0_real	2.1170e+08
I(0) 误差 (实空间) i0_real_error	4.1680e+06
Rg (倒空间) rg_reciprocal	47.81 Å
I(0) (倒空间) i0_reciprocal	211400000.0000
解质量估计 total_estimate	0.6741
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	35.3 Å
偏度 Skewness skewness	0.715
峰度 Kurtosis kurtosis	-0.274
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19730000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.412; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.388; Smooth: 0.136

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	MYOSIN heavy chain
分子量 formula_weight	95317.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	8276

MNIDFSDPDFQYLAVDRKKLMKEQTAAFDGKKNCWVPDEKEGFASAEIQSSKGDEITVKIVADSSTRTVKKDDIQSMNPPKFEKLEDMANMTYLNEASVLYNLRSRYTSGLIYTYSGLFCIAVNPYRRLPIYTDSVIAKYRGKRKTEIPPHLFSVADNAYQNMVTDRENQSCLITGESGAGKTENTKKVIMYLAKVACAVKKKDEEASDKKEGSLEDQIIQANPVLEAYGNAKTTRNNNSSRFGKFIRIHFGPTGKIAGADIETYLLEKSRVTYQQSAERNYHIFYQICSNAIPELNDVMLVTPDSGLYSFINQGCLTVDNIDDVEEFKLCDEAFDILGFTKEEKQSMFKCTASILHMGEMKFKQRPREEQAESDGTAEAEKVAFLCGINAGDLLKALLKPKVKVGTEMVTKGQNMNQVVNSVGALAKSLYDRMFNWLVRRVNKTLDTKAKRNYYIGVLDIAGFEIFDFNSFEQLCINYTNERLQQFFNHHMFILEQEEYKKEGIAWEFIDFGMDLQMCIDLIEKPMGILSILEEECMFPKADDKSFQDKLYQNHMGKNRMFTKPGKPTRPNQGPAHFELHHYAGNVPYSITGWLEKNKDPINENVVALLGASKEPLVAELFKAPEEPAGGGKKKKGKSSAFQTISAVHRESLNKLMKNLYSTHPHFVRCIIPNELKQPGLVDAELVLHQLQCNGVLEGIRICRKGFPSRLIYSEFKQRYSILAPNAIPQGFVDGKTVSEKILAGLQMDPAEYRLGTTKVFFKAGVLGNLEEMRDERLSKIISMFQAHIRGYLIRKAYKKLQDQRIGLSVIQRNIRKWLVLRNWQWWKLYSKVKP

Entity 2 polymer

描述 description	MYOSIN REGULATORY LIGHT CHAIN
分子量 formula_weight	17560.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

ADKAASGVLTKLPQKQIQEMKEAFSMIDVDRDGFVSKEDIKAISEQLGRAPDDKELTAMLKEAPGPLNFTMFLSIFSDKLSGTDSEETIRNAFAMFDEQETKKLNIEYIKDLLENMGDNFNKDEMRMTFKEAPVEGGKFDYVKFTAMIKGSGEEEA

Entity 3 polymer

描述 description	MYOSIN ESSENTIAL LIGHT CHAIN
分子量 formula_weight	17635.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

PKLSQDEIDDLKDVFELFDFWDGRDGAVDAFKLGDVCRCLGINPRNEDVFAVGGTHKMGEKSLPFEEFLPAYEGLMDCEQGTFADYMEAFKTFDREGQGFISGAELRHVLTALGERLSDEDVDEIIKLTDLQEDLEGNVKYEDFVKKVMAGPYPDK

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
分子量 formula_weight	506.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1kqma1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.34 — SH3-like barrel
超家族 Superfamily superfamily	b.34.3 — Myosin S1 fragment, N-terminal domain
家族 Family family	b.34.3.1 — Myosin S1 fragment, N-terminal domain

结构域编号 domain_id	d1kqma2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.9 — Motor proteins

结构域编号 domain_id	d1kqmb_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1kqmc_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (6 domains)

结构域编号 domain_id	1kqmA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	360 — Myosin S1 fragment, N-terminal

结构域编号 domain_id	1kqmA04
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	530 —

结构域编号 domain_id	1kqmB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kqmB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kqmC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1kqmC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	52.396 Å
晶胞边长 b length_b	58.642 Å
晶胞边长 c length_c	148.873 Å
晶胞夹角 α angle_alpha	81.64 °
晶胞夹角 β angle_beta	82.39 °
晶胞夹角 γ angle_gamma	87.43 °
晶胞分子数 Z z_pdb	1

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	39.810 Å
R 因子 r_factor	0.2812
R_work r_work	0.2770
R_free r_free	0.3160

fit	/app/data/saxs_computation/kq/1kqm/1kqm.fit
pddf	/app/data/pr_computation/kq/1kqm/1kqm.pr.out
profile	/app/data/saxs_computation/kq/1kqm/1kqm.dat

SCALLOP MYOSIN S1-AMPPNP IN THE ACTIN-DETACHED CONFORMATION

SAXS 散射曲线 SAXS Profile

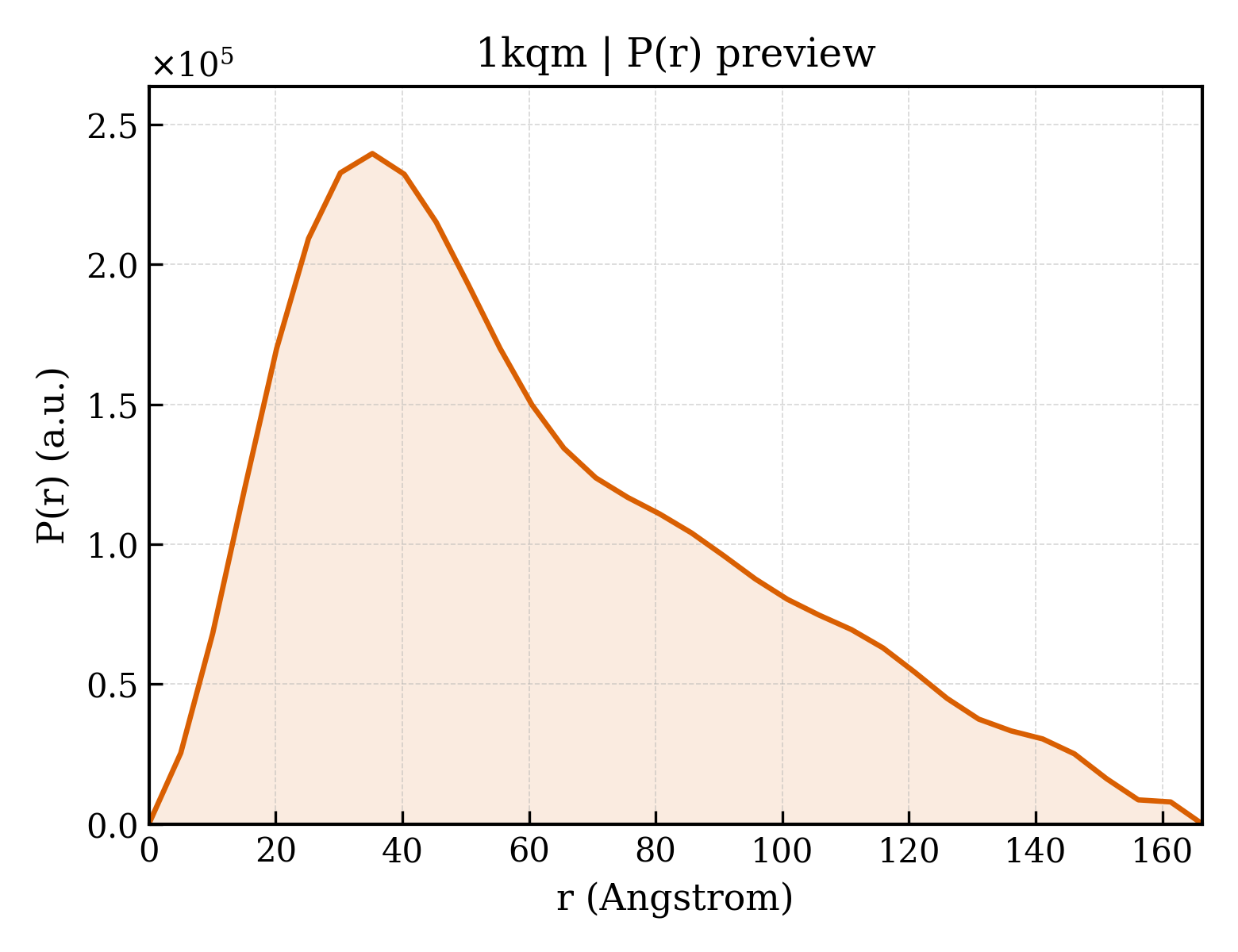

P(r) 距离分布 P(r) Distribution
