1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin Heavy Chain, Striated muscle

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–837	Fragment：MYOSIN HEAVY CHAIN Mutation：FRAGMENT: PAPAIN DIGESTED, SUBFRAGMENT 1 (S1)	Myosin Regulatory Light Chain, Striated adductor muscle × 1 （P13543） Myosin Essential Light Chain,Striated adductor muscle × 1 （P07291） MG MAGNESIUM ION × 2 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ADP-berillium floride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.30 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1KK8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B7T MYOSIN DIGESTED BY PAPAIN Deposited 1999-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–835（835 aa） Fragment：PAPAIN DIGESTED, SUBFRAGMENT 1 (S1)	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.50 Å R-free 0.297
1DFK NUCLEOTIDE-FREE SCALLOP MYOSIN S1-NEAR RIGOR STATE Deposited 1999-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 6–835（830 aa） Fragment：HEAVY CHAIN	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG8000, ammonium sulfate, cacodylate, glycerol , pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.410
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 5–835（831 aa） Fragment：HEAVY CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 5–835（831 aa） Fragment：HEAVY CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1KK7 SCALLOP MYOSIN IN THE NEAR RIGOR CONFORMATION Deposited 2001-12-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–837（837 aa） Fragment：HEAVY CHAIN	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；PEG 5000, ammonium sulphate, MgCl2, gycerol, cacodylate, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.313
1KQM SCALLOP MYOSIN S1-AMPPNP IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–835（835 aa） Fragment：SUBFRAGMENT 1(S1)	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, AMPPNP, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.00 Å R-free 0.316
1KWO SCALLOP MYOSIN S1-ATPgammaS-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–835（835 aa） Fragment：SUBFRAGMENT 1(S1)	Not recorded	MG MAGNESIUM ION × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.80 Å R-free 0.328
1L2O SCALLOP MYOSIN S1-ADP-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-02-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–835（835 aa） Fragment：SUBFRAGMENT 1(S1)	Not recorded	MG MAGNESIUM ION × 2 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.327
1QVI Crystal structure of scallop myosin S1 in the pre-power stroke state to 2.6 Angstrom resolution: flexibility and function in the head Deposited 2003-08-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–840（840 aa）	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；MES, MgCl2, ADP, Na3VO4, polyethylene glycol 8K, glycerol, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.54 Å R-free 0.266
1S5G Structure of Scallop myosin S1 reveals a novel nucleotide conformation Deposited 2004-01-20	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–840（840 aa） Fragment：Residues 1-840	Not recorded	SO4 SULFATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；PEG 8000, magnesium chloride, ADP, Glycerol, MES, TMAO, cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K	Resolution 3.10 Å R-free 0.269
1SCM STRUCTURE OF THE REGULATORY DOMAIN OF SCALLOP MYOSIN AT 2.8 ANGSTROMS RESOLUTION Deposited 1994-01-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 777–836（60 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1SR6 Structure of nucleotide-free scallop myosin S1 Deposited 2004-03-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–840（840 aa）	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；300 K；6% PEG 8000, 50mM ammonium sulfate, 8% glycerol, 10mM magnesium chloride, 50mM sodium cacodylate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.75 Å R-free 0.286
1WDC SCALLOP MYOSIN REGULATORY DOMAIN Deposited 1996-01-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 774–837（64 aa） Fragment：PROTEOLYTIC FRAGMENT, REGULATORY DOMAIN	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.00 Å R-free 0.281
2W4T ISOMETRICALLY CONTRACTING INSECT ASYNCHRONOUS FLIGHT MUSCLE Deposited 2008-12-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 5–835（831 aa） Fragment：RESIDUES 5-835	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM	Resolution 35.00 Å
2W4V Isometrically contracting insect asynchronous flight muscle quick frozen after a quick release step Deposited 2008-12-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 5–835（831 aa） Fragment：RESIDUES 5-835	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
2W4W Isometrically contracting insect asynchronous flight muscle quick frozen after a quick stretch step Deposited 2008-12-02	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 5–835（831 aa） Fragment：RESIDUES 5-835	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
3BAS Crystal structure of the N-terminal region of the scallop myosin rod, monoclinic (C2) form Deposited 2007-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281) Chain B 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281)	Not recorded	IOD IODIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；1.5 microliter of protein solution (4 mg/ml protein in 30 mM MOPS buffer pH 7.2, 40 mM NaCl, 2 mM NaN3) mixed with 3 microliters of (16.6% PEG 3350, 4.6% MPD, 13 mM NaCl, 2 mM NaN3, 10 mM MOPS pH 7.2) and equilibrated against (15% PEG 3350, 4.2% MPD, 18 mM MOPS, 24 mM NaCl), VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.287
3BAT Crystal structure of the N-terminal region of the scallop myosin rod, monoclinic (P21) form Deposited 2007-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281) Chain B 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；2 microliters of protein solution (4 mg/ml protein in 30 mM MOPS buffer pH 7.2, 40 mM NaCl, 2 mM NaN3) mixed with 2 microliters of (25% PEG 3350, 50 mM NH4I) and equilibrated against 1 ml of (17.5% PEG 3350, 35 mM NH4I, 28 mM NaCl, 2 mM NaN3, 20 mM MOPS pH 6.2). Harvested crystals were cryoprotected in 25.5% PEG 3350 and 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.299
3BAT Crystal structure of the N-terminal region of the scallop myosin rod, monoclinic (P21) form Deposited 2007-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281) Chain D 835–885（51 aa） Fragment：Bay Scallop Myosin (Residues 835-885)/Yeast GCN4 Transcription Factor (Residues 250-281)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；277 K；2 microliters of protein solution (4 mg/ml protein in 30 mM MOPS buffer pH 7.2, 40 mM NaCl, 2 mM NaN3) mixed with 2 microliters of (25% PEG 3350, 50 mM NH4I) and equilibrated against 1 ml of (17.5% PEG 3350, 35 mM NH4I, 28 mM NaCl, 2 mM NaN3, 20 mM MOPS pH 6.2). Harvested crystals were cryoprotected in 25.5% PEG 3350 and 15% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.30 Å R-free 0.299
3JTD Calcium-free Scallop Myosin Regulatory Domain with ELC-D19A Point Mutation Deposited 2009-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 773–837（65 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；100 mM bicine pH 8.3, 45 mM ammonium sulfate, 5 mM magnesium chloride, 2.5 mM EGTA, 3.0 mM sodium azide, 15% (wt/vol) PEG 4000, 4% (vol/vol) PEG 200, 6% (wt/vol) 2,3-butanediol, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.57 Å R-free 0.248
3JVT Calcium-bound Scallop Myosin Regulatory Domain (Lever Arm) with Reconstituted Complete Light Chains Deposited 2009-09-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 775–837（63 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；150 mM HEPES pH 7.0, 50 mM Ammonium Sulfate, 0.5 mM Calcium Chloride, 5 mM Magnesium Chloride, 5 mM Sodium Azide, 16.5% (wt/vol) PEG 4000 combined with equal volume of 16.9 mg/ml protein in 5 mM HEPES pH 7, 20 mM NaCl, 2 mM Magnesium Chloride, 0.2 mM Calcium Chloride, 0.1 mM EGTA, 3.0 mM Sodium Azide, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.231

19 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MYS_AEQIR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–837； UniProt 1–837

Myosin Regulatory Light Chain, Striated adductor muscle

OrganismNot specified

UniProt P13543

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 13–151	Fragment：MYOSIN REGULATORY LIGHT CHAIN	Myosin Heavy Chain, Striated muscle × 1 （P24733） Myosin Essential Light Chain,Striated adductor muscle × 1 （P07291） MG MAGNESIUM ION × 2 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ADP-berillium floride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.30 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1KK8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B7T MYOSIN DIGESTED BY PAPAIN Deposited 1999-01-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 2–157（156 aa） Fragment：PAPAIN DIGESTED, SUBFRAGMENT 1 (S1)	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.50 Å R-free 0.297
1DFK NUCLEOTIDE-FREE SCALLOP MYOSIN S1-NEAR RIGOR STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 13–151（139 aa） Fragment：REGULATORY LIGHT CHAIN	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG8000, ammonium sulfate, cacodylate, glycerol , pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.410
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 13–151（139 aa） Fragment：REGULATORY LIGHT CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain W 13–151（139 aa） Fragment：REGULATORY LIGHT CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1KK7 SCALLOP MYOSIN IN THE NEAR RIGOR CONFORMATION Deposited 2001-12-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 1–156（156 aa） Fragment：REGULATORY LIGHT CHAIN	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；PEG 5000, ammonium sulphate, MgCl2, gycerol, cacodylate, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.313
1KQM SCALLOP MYOSIN S1-AMPPNP IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, AMPPNP, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.00 Å R-free 0.316
1KWO SCALLOP MYOSIN S1-ATPgammaS-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.80 Å R-free 0.328
1L2O SCALLOP MYOSIN S1-ADP-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.327
1QVI Crystal structure of scallop myosin S1 in the pre-power stroke state to 2.6 Angstrom resolution: flexibility and function in the head Deposited 2003-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；MES, MgCl2, ADP, Na3VO4, polyethylene glycol 8K, glycerol, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.54 Å R-free 0.266
1S5G Structure of Scallop myosin S1 reveals a novel nucleotide conformation Deposited 2004-01-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 1–156（156 aa）	Not recorded	SO4 SULFATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；PEG 8000, magnesium chloride, ADP, Glycerol, MES, TMAO, cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K	Resolution 3.10 Å R-free 0.269
1SCM STRUCTURE OF THE REGULATORY DOMAIN OF SCALLOP MYOSIN AT 2.8 ANGSTROMS RESOLUTION Deposited 1994-01-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 12–156（145 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1SR6 Structure of nucleotide-free scallop myosin S1 Deposited 2004-03-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–156（156 aa）	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；300 K；6% PEG 8000, 50mM ammonium sulfate, 8% glycerol, 10mM magnesium chloride, 50mM sodium cacodylate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.75 Å R-free 0.286
1WDC SCALLOP MYOSIN REGULATORY DOMAIN Deposited 1996-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–156（156 aa） Fragment：PROTEOLYTIC FRAGMENT, REGULATORY DOMAIN	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.00 Å R-free 0.281
2W4T ISOMETRICALLY CONTRACTING INSECT ASYNCHRONOUS FLIGHT MUSCLE Deposited 2008-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain Y 16–151（136 aa） Fragment：RESIDUES 16-151	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM	Resolution 35.00 Å
2W4V Isometrically contracting insect asynchronous flight muscle quick frozen after a quick release step Deposited 2008-12-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 16–151（136 aa） Fragment：RESIDUES 16-151	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
2W4W Isometrically contracting insect asynchronous flight muscle quick frozen after a quick stretch step Deposited 2008-12-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Y 16–151（136 aa） Fragment：RESIDUES 16-151	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
3JTD Calcium-free Scallop Myosin Regulatory Domain with ELC-D19A Point Mutation Deposited 2009-09-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–157（156 aa）	Not recorded	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；100 mM bicine pH 8.3, 45 mM ammonium sulfate, 5 mM magnesium chloride, 2.5 mM EGTA, 3.0 mM sodium azide, 15% (wt/vol) PEG 4000, 4% (vol/vol) PEG 200, 6% (wt/vol) 2,3-butanediol, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.57 Å R-free 0.248
3JVT Calcium-bound Scallop Myosin Regulatory Domain (Lever Arm) with Reconstituted Complete Light Chains Deposited 2009-09-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 2–157（156 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；150 mM HEPES pH 7.0, 50 mM Ammonium Sulfate, 0.5 mM Calcium Chloride, 5 mM Magnesium Chloride, 5 mM Sodium Azide, 16.5% (wt/vol) PEG 4000 combined with equal volume of 16.9 mg/ml protein in 5 mM HEPES pH 7, 20 mM NaCl, 2 mM Magnesium Chloride, 0.2 mM Calcium Chloride, 0.1 mM EGTA, 3.0 mM Sodium Azide, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.231

17 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLR_AEQIR
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–139； UniProt 13–151

Myosin Essential Light Chain,Striated adductor muscle

OrganismNot specified

UniProt P07291

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–154	Fragment：MYOSIN ESSENTIAL LIGHT CHAIN	Myosin Heavy Chain, Striated muscle × 1 （P24733） Myosin Regulatory Light Chain, Striated adductor muscle × 1 （P13543） MG MAGNESIUM ION × 2 BEF BERYLLIUM TRIFLUORIDE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ADP-berillium floride, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.30 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1KK8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B7T MYOSIN DIGESTED BY PAPAIN Deposited 1999-01-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 2–157（156 aa） Fragment：PAPAIN DIGESTED, SUBFRAGMENT 1 (S1)	Not recorded	MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 2.50 Å R-free 0.297
1DFK NUCLEOTIDE-FREE SCALLOP MYOSIN S1-NEAR RIGOR STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 4–155（152 aa） Fragment：ESSENTIAL LIGHT CHAIN	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG8000, ammonium sulfate, cacodylate, glycerol , pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.410
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 4–155（152 aa） Fragment：ESSENTIAL LIGHT CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1DFL SCALLOP MYOSIN S1 COMPLEXED WITH MGADP:VANADATE-TRANSITION STATE Deposited 1999-11-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain X 4–155（152 aa） Fragment：ESSENTIAL LIGHT CHAIN	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；PEG 8000, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 4K	Resolution 4.20 Å R-free 0.400
1KK7 SCALLOP MYOSIN IN THE NEAR RIGOR CONFORMATION Deposited 2001-12-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 1–156（156 aa） Fragment：ESSENTIAL LIGHT CHAIN	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；PEG 5000, ammonium sulphate, MgCl2, gycerol, cacodylate, pH 6.3, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.313
1KQM SCALLOP MYOSIN S1-AMPPNP IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, AMPPNP, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.00 Å R-free 0.316
1KWO SCALLOP MYOSIN S1-ATPgammaS-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-01-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.80 Å R-free 0.328
1L2O SCALLOP MYOSIN S1-ADP-p-PDM IN THE ACTIN-DETACHED CONFORMATION Deposited 2002-02-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 PDM 4-[4-(2,5-DIOXO-PYRROLIDIN-1-YL)-PHENYLAMINO]-4-HYDROXY-BUTYRIC ACID × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；PEG 20000, magnesium chloride, ethylene glycol, Tris HCl, ATPgammaS, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.327
1QVI Crystal structure of scallop myosin S1 in the pre-power stroke state to 2.6 Angstrom resolution: flexibility and function in the head Deposited 2003-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 1–156（156 aa）	Not recorded	MG MAGNESIUM ION × 2 VO4 VANADATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；MES, MgCl2, ADP, Na3VO4, polyethylene glycol 8K, glycerol, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.54 Å R-free 0.266
1S5G Structure of Scallop myosin S1 reveals a novel nucleotide conformation Deposited 2004-01-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 1–156（156 aa）	Not recorded	SO4 SULFATE ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；300 K；PEG 8000, magnesium chloride, ADP, Glycerol, MES, TMAO, cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 300K	Resolution 3.10 Å R-free 0.269
1SCM STRUCTURE OF THE REGULATORY DOMAIN OF SCALLOP MYOSIN AT 2.8 ANGSTROMS RESOLUTION Deposited 1994-01-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 4–152（149 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
1SR6 Structure of nucleotide-free scallop myosin S1 Deposited 2004-03-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–156（156 aa）	Not recorded	SO4 SULFATE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；300 K；6% PEG 8000, 50mM ammonium sulfate, 8% glycerol, 10mM magnesium chloride, 50mM sodium cacodylate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.75 Å R-free 0.286
1WDC SCALLOP MYOSIN REGULATORY DOMAIN Deposited 1996-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–156（156 aa） Fragment：PROTEOLYTIC FRAGMENT, REGULATORY DOMAIN	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 2.00 Å R-free 0.281
2W4T ISOMETRICALLY CONTRACTING INSECT ASYNCHRONOUS FLIGHT MUSCLE Deposited 2008-12-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain Z 5–155（151 aa） Fragment：RESIDUES 5-155	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM	Resolution 35.00 Å
2W4V Isometrically contracting insect asynchronous flight muscle quick frozen after a quick release step Deposited 2008-12-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 5–155（151 aa） Fragment：RESIDUES 5-155	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
2W4W Isometrically contracting insect asynchronous flight muscle quick frozen after a quick stretch step Deposited 2008-12-02	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain Z 5–155（151 aa） Fragment：RESIDUES 5-155	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer 20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS；20 MM MOPS BUFFER, 5 MM NAN3, AND MGCL2, ATP, CACL2, AND EGTA IN VARYING MILLIMOLAR CONCENTRATIONS cryo-EM vitrification conditions Cryogen HELIUM；SMASH AGAINST A LIQUID HELIUM COOLED GOLD COATED COPPER MIRROR	Resolution 35.00 Å
3JTD Calcium-free Scallop Myosin Regulatory Domain with ELC-D19A Point Mutation Deposited 2009-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–157（156 aa）	Mutation：D19A	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；100 mM bicine pH 8.3, 45 mM ammonium sulfate, 5 mM magnesium chloride, 2.5 mM EGTA, 3.0 mM sodium azide, 15% (wt/vol) PEG 4000, 4% (vol/vol) PEG 200, 6% (wt/vol) 2,3-butanediol, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.57 Å R-free 0.248
3JVT Calcium-bound Scallop Myosin Regulatory Domain (Lever Arm) with Reconstituted Complete Light Chains Deposited 2009-09-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 2–157（156 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.3；277 K；150 mM HEPES pH 7.0, 50 mM Ammonium Sulfate, 0.5 mM Calcium Chloride, 5 mM Magnesium Chloride, 5 mM Sodium Azide, 16.5% (wt/vol) PEG 4000 combined with equal volume of 16.9 mg/ml protein in 5 mM HEPES pH 7, 20 mM NaCl, 2 mM Magnesium Chloride, 0.2 mM Calcium Chloride, 0.1 mM EGTA, 3.0 mM Sodium Azide, Hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.231

17 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLE_AEQIR
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–154； UniProt 1–154

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kk8
Deposition date deposition_date	2001-12-06
Structure title title	SCALLOP MYOSIN (S1-ADP-BeFx) IN THE ACTIN-DETACHED CONFORMATION
Keywords keywords	actin-detached, Myosin, Mechanics of MOTOR, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.00 Å
Radius of gyration Rg (electron density) rg_electron	48.79 Å
Forward intensity I(0) i0	217601000.00
Molecular weight molecular_weight	121180.0 kDa
Excluded volume excluded_volume	151690 Å³
Envelope volume envelope_volume	222720 Å³
Hydration-shell volume shell_volume	42978 Å³
Envelope diameter envelope_diameter	175.7 Å
Shell Rg shell_rg	45.73 Å
Envelope Rg envelope_rg	48.79 Å
Shape Rg shape_rg	48.76 Å
Total Rg total_rg	48.73 Å
Total atoms total_atoms	8517
Residues n_residues	1086
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

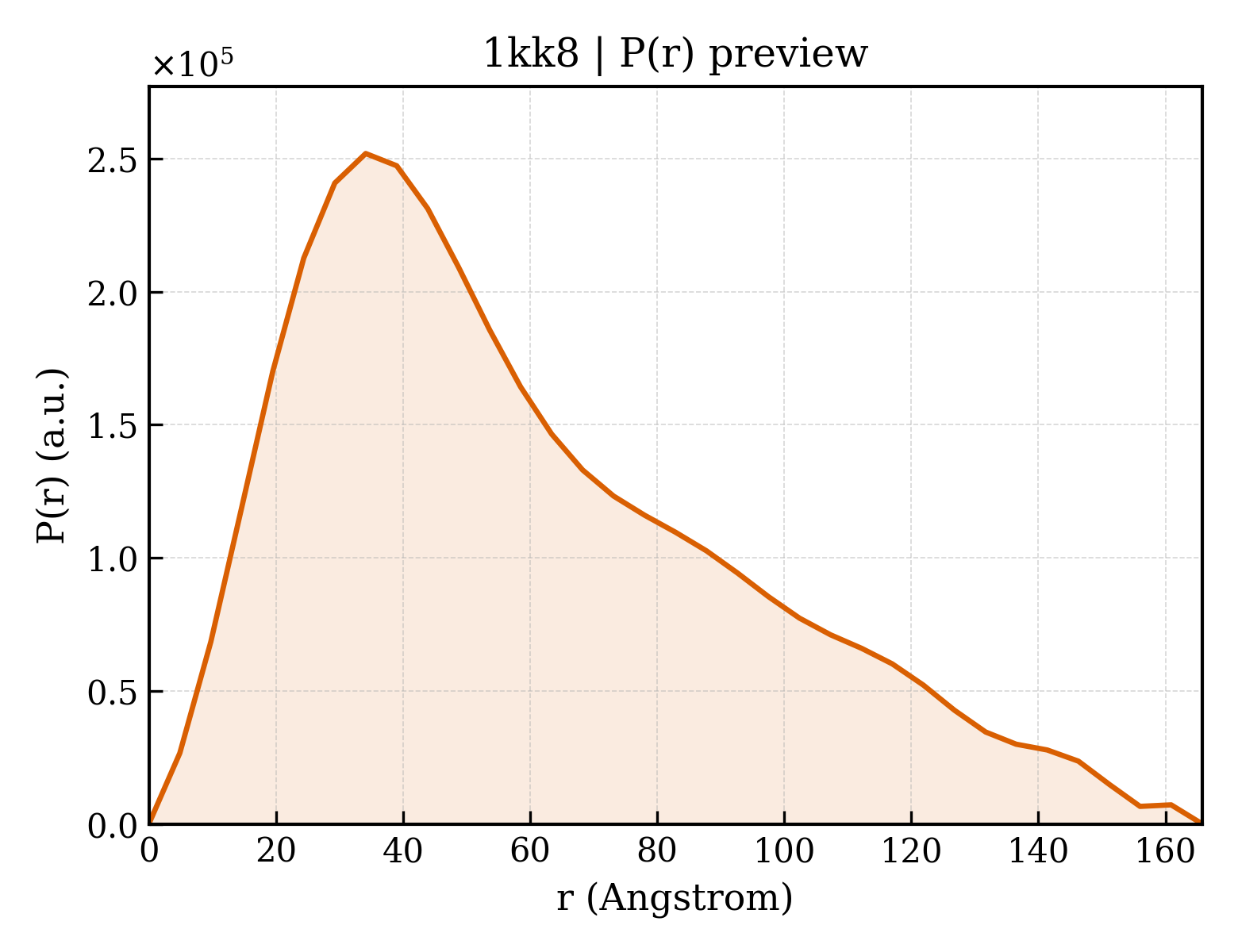

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	165.8 Å
Rg (real space) rg_real	48.23 Å
Rg uncertainty (real space) rg_real_error	2.25 Å
I(0) (real space) i0_real	2.1760e+08
I(0) uncertainty (real space) i0_real_error	4.6020e+06
Rg (reciprocal space) rg_reciprocal	47.01 Å
I(0) (reciprocal space) i0_reciprocal	217300000.0000
Solution quality estimate total_estimate	0.6796
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.1 Å
Skewness Skewness skewness	0.735
Kurtosis Kurtosis kurtosis	-0.208
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19180000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.398; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.458; Smooth: 0.180

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Myosin Heavy Chain, Striated muscle
Molecular weight formula_weight	95543.8 kDa
Mutation mutation	FRAGMENT: PAPAIN DIGESTED, SUBFRAGMENT 1 (S1)
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8702

MNIDFSDPDFQYLAVDRKKLMKEQTAAFDGKKNCWVPDEKEGFASAEIQSSKGDEITVKIVADSSTRTVKKDDIQSMNPPKFEKLEDMANMTYLNEASVLYNLRSRYTSGLIYTYSGLFCIAVNPYRRLPIYTDSVIAKYRGKRKTEIPPHLFSVADNAYQNMVTDRENQSCLITGESGAGKTENTKKVIMYLAKVACAVKKKDEEASDKKEGSLEDQIIQANPVLEAYGNAKTTRNNNSSRFGKFIRIHFGPTGKIAGADIETYLLEKSRVTYQQSAERNYHIFYQICSNAIPELNDVMLVTPDSGLYSFINQGCLTVDNIDDVEEFKLCDEAFDILGFTKEEKQSMFKCTASILHMGEMKFKQRPREEQAESDGTAEAEKVAFLCGINAGDLLKALLKPKVKVGTEMVTKGQNMNQVVNSVGALAKSLYDRMFNWLVRRVNKTLDTKAKRNYYIGVLDIAGFEIFDFNSFEQLCINYTNERLQQFFNHHMFILEQEEYKKEGIAWEFIDFGMDLQMCIDLIEKPMGILSILEEECMFPKADDKSFQDKLYQNHMGKNRMFTKPGKPTRPNQGPAHFELHHYAGNVPYSITGWLEKNKDPINENVVALLGASKEPLVAELFKAPEEPAGGGKKKKGKSSAFQTISAVHRESLNKLMKNLYSTHPHFVRCIIPNELKQPGLVDAELVLHQLQCNGVLEGIRICRKGFPSRLIYSEFKQRYSILAPNAIPQGFVDGKTVSEKILAGLQMDPAEYRLGTTKVFFKAGVLGNLEEMRDERLSKIISMFQAHIRGYLIRKAYKKLQDQRIGLSVIQRNIRKWLVLRNWQWWKLYSKVKPLL

Entity 2 Entity 2 polymer

Description description	Myosin Regulatory Light Chain, Striated adductor muscle
Molecular weight formula_weight	15888.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

PQKQIQEMKEAFSMIDVDRDGFVSKEDIKAISEQLGRAPDDKELTAMLKEAPGPLNFTMFLSIFSDKLSGTDSEETIRNAFAMFDEQETKKLNIEYIKDLLENMGDNFNKDEMRMTFKEAPVEGGKFDYVKFTAMIKGS

Entity 3 Entity 3 polymer

Description description	Myosin Essential Light Chain,Striated adductor muscle
Molecular weight formula_weight	17391.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PKLSQDEIDDLKDVFELFDFWDGRDGAVDAFKLGDVCRCLGINPRNEDVFAVGGTHKMGEKSLPFEEFLPAYEGLMDCEQGTFADYMEAFKTFDREGQGFISGAELRHVLTALGERLSDEDVDEIIKLTDLQEDLEGNVKYEDFVKKVMAGPYP

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	185

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1kk8a1
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.3 — Myosin S1 fragment, N-terminal domain
Family Family family	b.34.3.1 — Myosin S1 fragment, N-terminal domain

Domain ID domain_id	d1kk8a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.9 — Motor proteins

Domain ID domain_id	d1kk8b_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

Domain ID domain_id	d1kk8c_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (6 domains)

Domain ID domain_id	1kk8A02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	360 — Myosin S1 fragment, N-terminal

Domain ID domain_id	1kk8A04
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	530 —

Domain ID domain_id	1kk8B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1kk8B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1kk8C01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1kk8C02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (2)

▶

Unit-cell length a length_a	51.604 Å
Unit-cell length b length_b	58.527 Å
Unit-cell length c length_c	133.295 Å
Unit-cell angle α angle_alpha	81.08 °
Unit-cell angle β angle_beta	84.94 °
Unit-cell angle γ angle_gamma	67.24 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	29.840 Å
R factor r_factor	0.2340
R_work r_work	0.2300
R_free r_free	0.2690

fit	/app/data/saxs_computation/kk/1kk8/1kk8.fit
pddf	/app/data/pr_computation/kk/1kk8/1kk8.pr.out
profile	/app/data/saxs_computation/kk/1kk8/1kk8.dat

SCALLOP MYOSIN (S1-ADP-BeFx) IN THE ACTIN-DETACHED CONFORMATION

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin Heavy Chain, Striated muscle

State in the Current Structure

Other States of the Same Protein in the Database

Myosin Regulatory Light Chain, Striated adductor muscle

State in the Current Structure

Other States of the Same Protein in the Database

Myosin Essential Light Chain,Striated adductor muscle

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

CATH v4.4 (6 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
