1tui

INTACT ELONGATION FACTOR TU IN COMPLEX WITH GDP

Method: X-RAY DIFFRACTION D_max: 123.9 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ELONGATION FACTOR TU

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–405 Chain B； UniProt 1–405 Chain C； UniProt 1–405	Not recorded	MG MAGNESIUM ION × 3 GDP GUANOSINE-5'-DIPHOSPHATE × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.70 Å R-free 0.300

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1TUI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B23 E. coli cysteinyl-tRNA and T. aquaticus elongation factor EF-TU:GTP ternary complex Deposited 1998-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain P 1–405（405 aa）	Not recorded	MG MAGNESIUM ION × 3 CYS CYSTEINE × 1 SO4 SULFATE ION × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；2.1 M (NH4)2SO4, 30 MM TRIS, 5 MM MES, 10 MM MGCL2, 10 MM DTT, 1 MM GDPNP PH 6.7, 4 DEG. C, HANGING DROP, vapor diffusion - hanging drop, temperature 277K	Resolution 2.60 Å R-free 0.263
1EFT THE CRYSTAL STRUCTURE OF ELONGATION FACTOR EF-TU FROM THERMUS AQUATICUS IN THE GTP CONFORMATION Deposited 1993-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–405（405 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1OB5 T. aquaticus elongation factor EF-Tu complexed with the antibiotic enacyloxin IIa, a GTP analog, and Phe-tRNA Deposited 2003-01-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 3 PDB declaration: hexameric	Chain A 1–405（405 aa） Chain C 1–405（405 aa） Chain E 1–405（405 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 3 MG MAGNESIUM ION × 3 ENX ENACYLOXIN IIA × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；1.8M AMMONIUM SULPHATE, 10 MM MAGNESIUM CHLORIDE,20 MM TRIS-MES, PH 6.4	Resolution 3.10 Å R-free 0.294
1TTT Phe-tRNA, elongation factoR EF-TU:GDPNP ternary complex Deposited 1995-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain A 1–405（405 aa）	Not recorded	MG MAGNESIUM ION × 2 PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.8	Resolution 2.70 Å R-free 0.290
1TTT Phe-tRNA, elongation factoR EF-TU:GDPNP ternary complex Deposited 1995-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 1–405（405 aa）	Not recorded	MG MAGNESIUM ION × 2 PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.8	Resolution 2.70 Å R-free 0.290
1TTT Phe-tRNA, elongation factoR EF-TU:GDPNP ternary complex Deposited 1995-11-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain C 1–405（405 aa）	Not recorded	MG MAGNESIUM ION × 2 PHE PHENYLALANINE × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.8	Resolution 2.70 Å R-free 0.290

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EFTU_THEAQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–405； UniProt 1–405 Author chain B； PDBConstruct 1–405； UniProt 1–405 Author chain C； PDBConstruct 1–405； UniProt 1–405

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

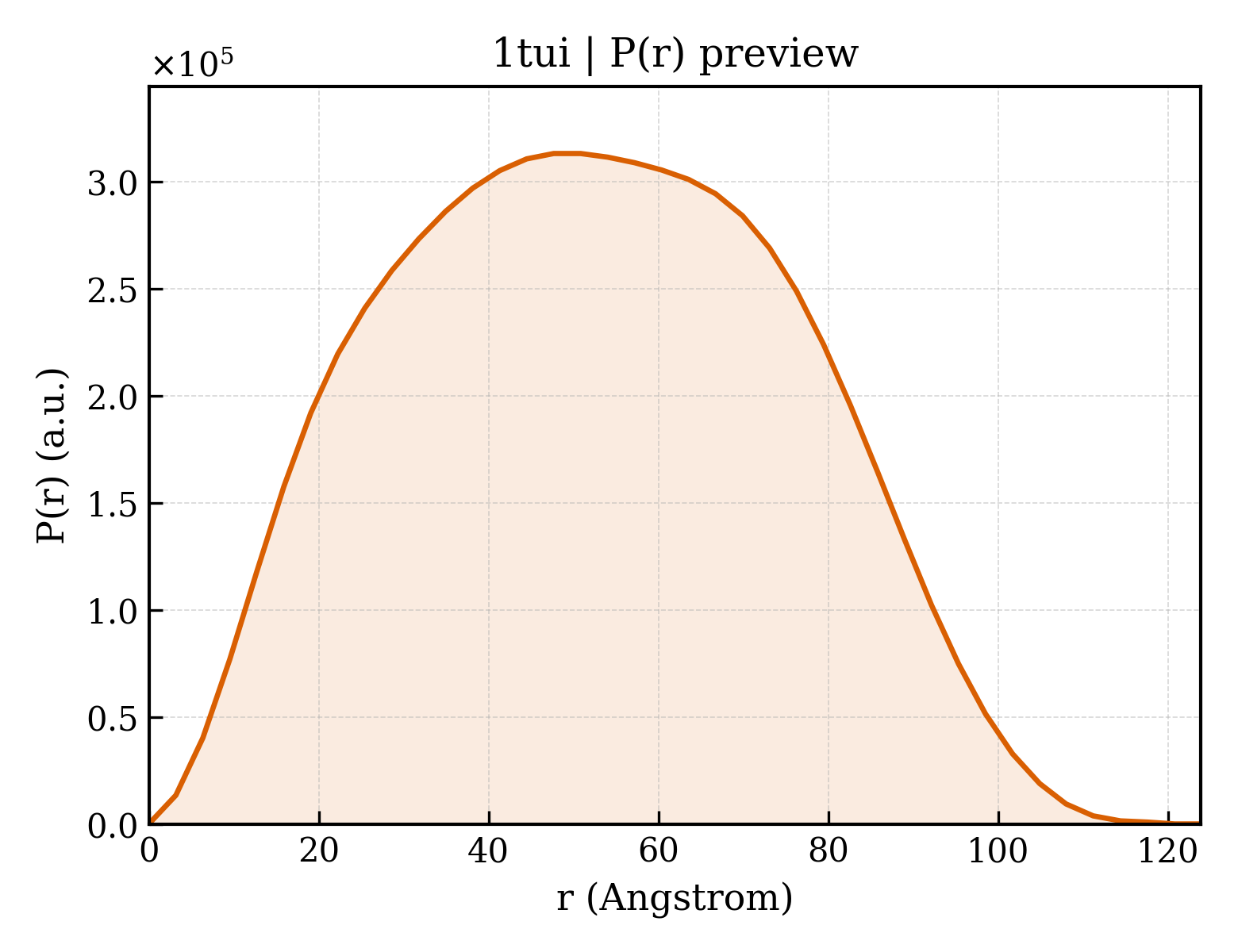

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tui
Deposition date deposition_date	1996-05-23
Structure title title	INTACT ELONGATION FACTOR TU IN COMPLEX WITH GDP
Keywords keywords	ELONGATION FACTOR, PROTEIN BIOSYNTHESIS, GTP-BINDING; ELONGATION FACTOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.42 Å
Radius of gyration Rg (electron density) rg_electron	39.98 Å
Forward intensity I(0) i0	269689000.00
Molecular weight molecular_weight	132700.0 kDa
Excluded volume excluded_volume	165840 Å³
Envelope volume envelope_volume	224360 Å³
Hydration-shell volume shell_volume	48184 Å³
Envelope diameter envelope_diameter	126.0 Å
Shell Rg shell_rg	44.47 Å
Envelope Rg envelope_rg	38.58 Å
Shape Rg shape_rg	39.97 Å
Total Rg total_rg	40.28 Å
Total atoms total_atoms	9327
Residues n_residues	1191
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	123.9 Å
Rg (real space) rg_real	40.32 Å
Rg uncertainty (real space) rg_real_error	1.18 Å
I(0) (real space) i0_real	2.6970e+08
I(0) uncertainty (real space) i0_real_error	4.6210e+06
Rg (reciprocal space) rg_reciprocal	40.42 Å
I(0) (reciprocal space) i0_reciprocal	269700000.0000
Solution quality estimate total_estimate	0.8402
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	0
Primary peak position r_peak_primary	— Å
Skewness Skewness skewness	0.074
Kurtosis Kurtosis kurtosis	-0.791
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16470000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ELONGATION FACTOR TU
Molecular weight formula_weight	44743.0 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	9422

AKGEFIRTKPHVNVGTIGHVDHGKTTLTAALTYVAAAENPNVEVKDYGDIDKAPEERARGITINTAHVEYETAKRHYSHVDCPGHADYIKNMITGAAQMDGAILVVSAADGPMPQTREHILLARQVGVPYIVVFMNKVDMVDDPELLDLVEMEVRDLLNQYEFPGDEVPVIRGSALLALEEMHKNPKTKRGENEWVDKIWELLDAIDEYIPTPVRDVDKPFLMPVEDVFTITGRGTVATGRIERGKVKVGDEVEIVGLAPETRKTVVTGVEMHRKTLQEGIAGDNVGLLLRGVSREEVERGQVLAKPGSITPHTKFEASVYILKKEEGGRHTGFFTGYRPQFYFRTTDVTGVVRLPQGVEMVMPGDNVTFTVELIKPVALEEGLRFAIREGGRTVGAGVVTKILE

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	95

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d1tuia1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1tuia2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1tuia3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1tuib1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1tuib2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1tuib3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1tuic1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1tuic2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1tuic3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (9 domains)

Domain ID domain_id	1tuiA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1tuiA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1tuiA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1tuiB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1tuiB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1tuiB03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1tuiC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1tuiC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1tuiC03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

▶

8. Citations (5)

▶

Unit-cell length a length_a	175.900 Å
Unit-cell length b length_b	175.900 Å
Unit-cell length c length_c	223.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2350
R_free r_free	0.3000
