1tyf

THE STRUCTURE OF CLPP AT 2.3 ANGSTROM RESOLUTION SUGGESTS A MODEL FOR ATP-DEPENDENT PROTEOLYSIS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CLP PEPTIDASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 14	water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–193； UniProt 15–207 Author chain B； PDBConstruct 1–193； UniProt 15–207 Author chain C； PDBConstruct 1–193； UniProt 15–207 Author chain D； PDBConstruct 1–193； UniProt 15–207 Author chain E； PDBConstruct 1–193； UniProt 15–207 Author chain F； PDBConstruct 1–193； UniProt 15–207 Author chain G； PDBConstruct 1–193； UniProt 15–207 Author chain H； PDBConstruct 1–193； UniProt 15–207 Author chain I； PDBConstruct 1–193； UniProt 15–207 Author chain J； PDBConstruct 1–193； UniProt 15–207 Author chain K； PDBConstruct 1–193； UniProt 15–207 Author chain L； PDBConstruct 1–193； UniProt 15–207 Author chain M； PDBConstruct 1–193； UniProt 15–207 Author chain N； PDBConstruct 1–193； UniProt 15–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tyf
Deposition date deposition_date	1997-10-13
Structure title title	THE STRUCTURE OF CLPP AT 2.3 ANGSTROM RESOLUTION SUGGESTS A MODEL FOR ATP-DEPENDENT PROTEOLYSIS
Keywords keywords	PEPTIDASE; PEPTIDASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tyf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

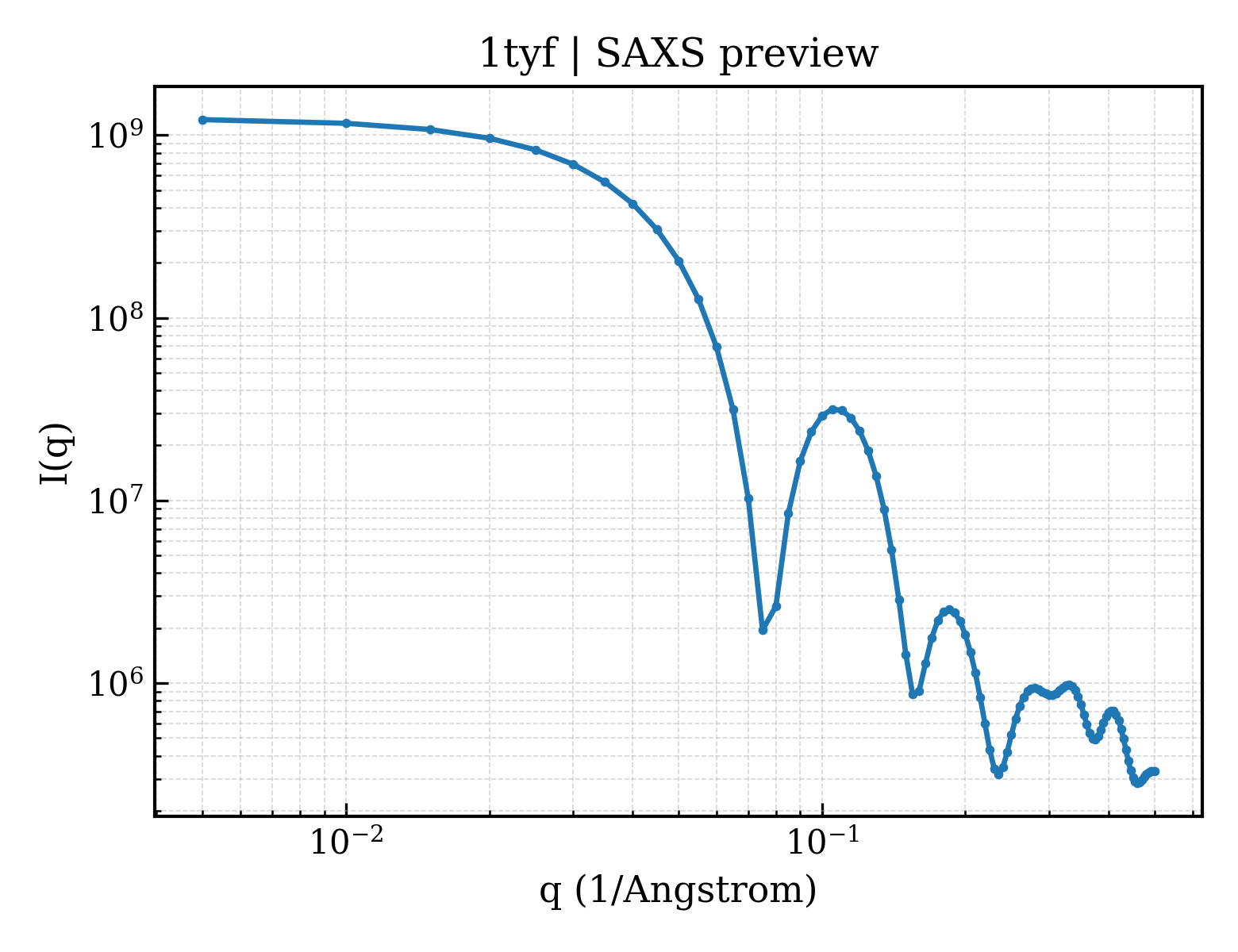

1tyf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1tyf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.27 Å
Rg (electron density)	42.38 Å
Total Rg	42.74 Å
Atom count	20062
Residues	2562
Excluded volume	357630 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tyf__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

Domain ID domain_id	d1tyfa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfe_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyff_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfm_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d1tyfn_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

CATH v4.4 (14 domains)

Domain ID domain_id	1tyfA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfE00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfG00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfH00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfI00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfJ00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfK00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfL00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfM00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	1tyfN00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

Unit-cell length a length_a	193.320 Å
Unit-cell length b length_b	102.460 Å
Unit-cell length c length_c	157.080 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	80.000 Å
R factor r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2920

Description description	CLP PEPTIDASE
Molecular weight formula_weight	21586.9 kDa
EC 编号 ec_number	3.4.21.92
Source method src_method	man
Copy count entity_count	14

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
Atom count atom_count	21308

THE STRUCTURE OF CLPP AT 2.3 ANGSTROM RESOLUTION SUGGESTS A MODEL FOR ATP-DEPENDENT PROTEOLYSIS

1. Protein Identity and Related Structures Protein Identity & Related Structures

CLP PEPTIDASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1tyf__assembly_1__model_1

1tyf__assembly_1__model_1 | I(q)

1tyf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (2)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1246

THE STRUCTURE OF CLPP AT 2.3 ANGSTROM RESOLUTION SUGGESTS A MODEL FOR ATP-DEPENDENT PROTEOLYSIS

1. Protein Identity and Related Structures Protein Identity & Related Structures

CLP PEPTIDASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1tyf__assembly_1__model_1

1tyf__assembly_1__model_1 | I(q)

1tyf__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (2)
