2fzs

Crystal structure of E. coli ClpP with a Peptide Chloromethyl Ketone Covalently Bound at the Active Site

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 14	N~2~-[(BENZYLOXY)CARBONYL]-N-[(1S,2S)-2-HYDROXY-1-(4-HYDROXYBENZYL)PROPYL]-L-LEUCINAMIDE × 14 TRIETHYLENE GLYCOL × 15 GLYCEROL × 11 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–193； UniProt 15–207 Author chain B； PDBConstruct 1–193； UniProt 15–207 Author chain C； PDBConstruct 1–193； UniProt 15–207 Author chain D； PDBConstruct 1–193； UniProt 15–207 Author chain E； PDBConstruct 1–193； UniProt 15–207 Author chain F； PDBConstruct 1–193； UniProt 15–207 Author chain G； PDBConstruct 1–193； UniProt 15–207 Author chain H； PDBConstruct 1–193； UniProt 15–207 Author chain I； PDBConstruct 1–193； UniProt 15–207 Author chain J； PDBConstruct 1–193； UniProt 15–207 Author chain K； PDBConstruct 1–193； UniProt 15–207 Author chain L； PDBConstruct 1–193； UniProt 15–207 Author chain M； PDBConstruct 1–193； UniProt 15–207 Author chain N； PDBConstruct 1–193； UniProt 15–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2fzs
Deposition date deposition_date	2006-02-10
Structure title title	Crystal structure of E. coli ClpP with a Peptide Chloromethyl Ketone Covalently Bound at the Active Site
Keywords keywords	ATP-dependent ClpP protease, Z-Leu-Tyr Chloromethyl Ketone Inhibitor, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2fzs__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

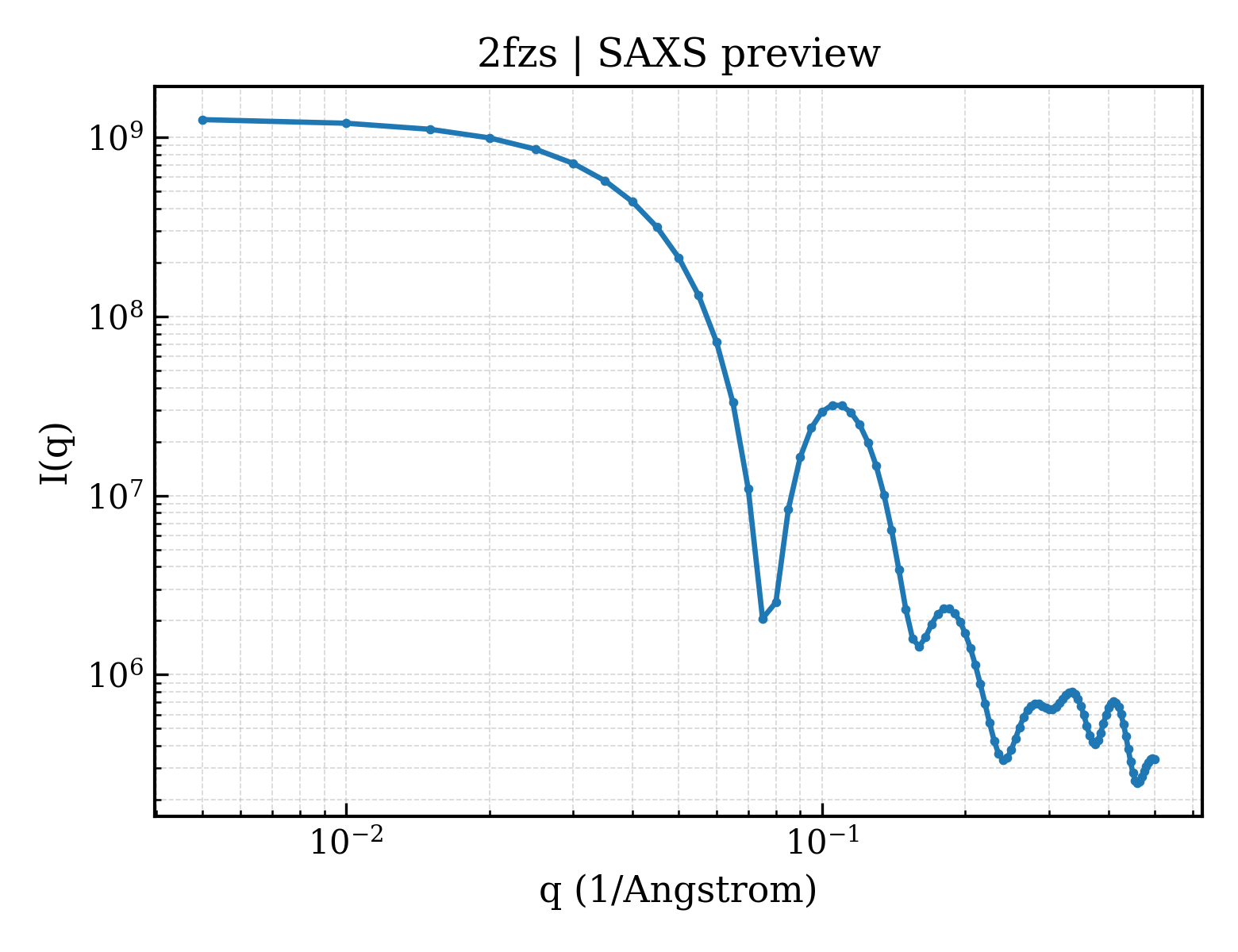

2fzs__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

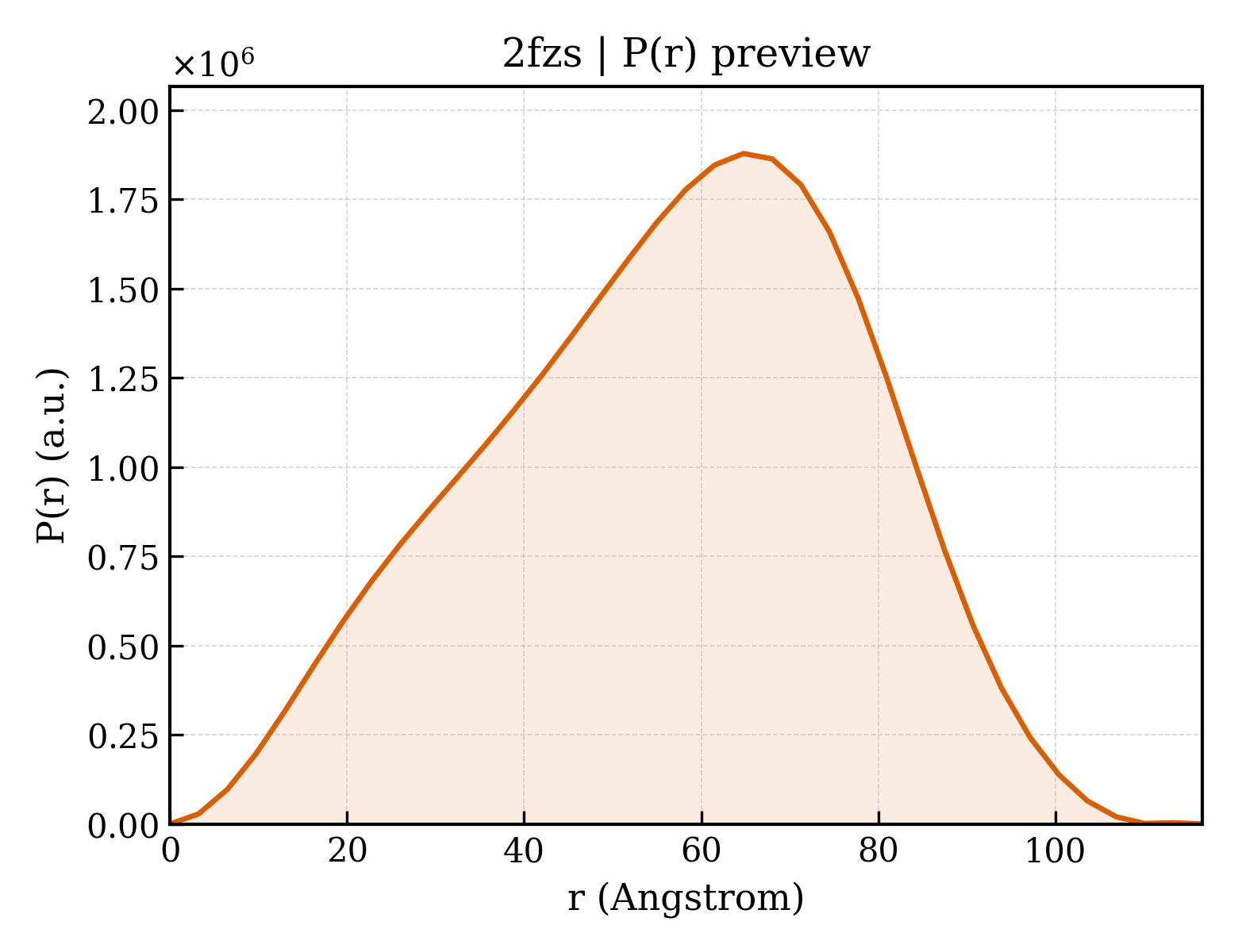

2fzs__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.26 Å
Rg (electron density)	42.18 Å
Total Rg	42.58 Å
Atom count	20914
Residues	2591
Excluded volume	376000 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2fzs__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ATP-dependent Clp protease proteolytic subunit
Molecular weight formula_weight	21586.9 kDa
EC 编号 ec_number	3.4.21.92
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
Atom count atom_count	24125

ALVPMVIEQTSRGERSFDIYSRLLKERVIFLTGQVEDHMANLIVAQMLFLEAENPEKDIYLYINSPGGVITAGMSIYDTMQFIKPDVSTICMGQAASMGAFLLTAGAKGKRFCLPNSRVMIHQPLGGYQGQATDIEIHAREILKVKGRMNELMALHTGQSLEQIERDTERDRFLSAPEAVEYGLVDSILTHRN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	N~2~-[(BENZYLOXY)CARBONYL]-N-[(1S,2S)-2-HYDROXY-1-(4-HYDROXYBENZYL)PROPYL]-L-LEUCINAMIDE
Molecular weight formula_weight	428.5 kDa
Source method src_method	syn
Copy count entity_count	14

Entity 3 Entity 3 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	2855

▼

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

Domain ID domain_id	d2fzsa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzse_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsm_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d2fzsn_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

CATH v4.4 (14 domains)

Domain ID domain_id	2fzsA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsB00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsC00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsD00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsE00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsF00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsG00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsH00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsI00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsJ00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsK00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsL00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsM00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	2fzsN00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

Unit-cell length a length_a	190.700 Å
Unit-cell length b length_b	101.000 Å
Unit-cell length c length_c	155.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1760
R_work r_work	0.1730
R_free r_free	0.2330

Crystal structure of E. coli ClpP with a Peptide Chloromethyl Ketone Covalently Bound at the Active Site

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2fzs__assembly_1__model_1

2fzs__assembly_1__model_1 | I(q)

2fzs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (1)

Crystal structure of E. coli ClpP with a Peptide Chloromethyl Ketone Covalently Bound at the Active Site

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2fzs__assembly_1__model_1

2fzs__assembly_1__model_1 | I(q)

2fzs__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (1)
