9c87

Cryo-EM Structure of a Proteolytic ClpXP AAA+ Machine Poised to Unfold a Linear-Degron DHFR-ssrA Substrate Bound with MTX

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease ATP-binding subunit ClpX

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 21	Dihydrofolate reductase × 1 （A0A4C7B7M9） ATP-dependent Clp protease proteolytic subunit × 14 （P0A6G7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 3 METHOTREXATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPX_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 26–388； UniProt 62–424 Author chain B； PDBConstruct 26–388； UniProt 62–424 Author chain C； PDBConstruct 26–388； UniProt 62–424 Author chain D； PDBConstruct 26–388； UniProt 62–424 Author chain E； PDBConstruct 26–388； UniProt 62–424 Author chain F； PDBConstruct 26–388； UniProt 62–424

Dihydrofolate reductase

Escherichia coli

UniProt A0A4C7B7M9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 21	ATP-dependent Clp protease ATP-binding subunit ClpX × 6 （P0A6H1） ATP-dependent Clp protease proteolytic subunit × 14 （P0A6G7） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 3 METHOTREXATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A4C7B7M9_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain S； PDBConstruct 15–172； UniProt 39–196

ATP-dependent Clp protease proteolytic subunit

Escherichia coli

UniProt P0A6G7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 21	ATP-dependent Clp protease ATP-binding subunit ClpX × 6 （P0A6H1） Dihydrofolate reductase × 1 （A0A4C7B7M9） ADENOSINE-5'-TRIPHOSPHATE × 3 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 3 METHOTREXATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPP_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain h； PDBConstruct 1–192； UniProt 16–207 Author chain i； PDBConstruct 1–192； UniProt 16–207 Author chain j； PDBConstruct 1–192； UniProt 16–207 Author chain k； PDBConstruct 1–192； UniProt 16–207 Author chain l； PDBConstruct 1–192； UniProt 16–207 Author chain m； PDBConstruct 1–192； UniProt 16–207 Author chain n； PDBConstruct 1–192； UniProt 16–207 Author chain p； PDBConstruct 1–192； UniProt 16–207 Author chain q； PDBConstruct 1–192； UniProt 16–207 Author chain r； PDBConstruct 1–192； UniProt 16–207 Author chain s； PDBConstruct 1–192； UniProt 16–207 Author chain t； PDBConstruct 1–192； UniProt 16–207 Author chain u； PDBConstruct 1–192； UniProt 16–207 Author chain v； PDBConstruct 1–192； UniProt 16–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9c87
Deposition date deposition_date	2024-06-12
Structure title title	Cryo-EM Structure of a Proteolytic ClpXP AAA+ Machine Poised to Unfold a Linear-Degron DHFR-ssrA Substrate Bound with MTX
Keywords keywords	ClpXP, full-engaged state, AAA protease, CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9c87__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

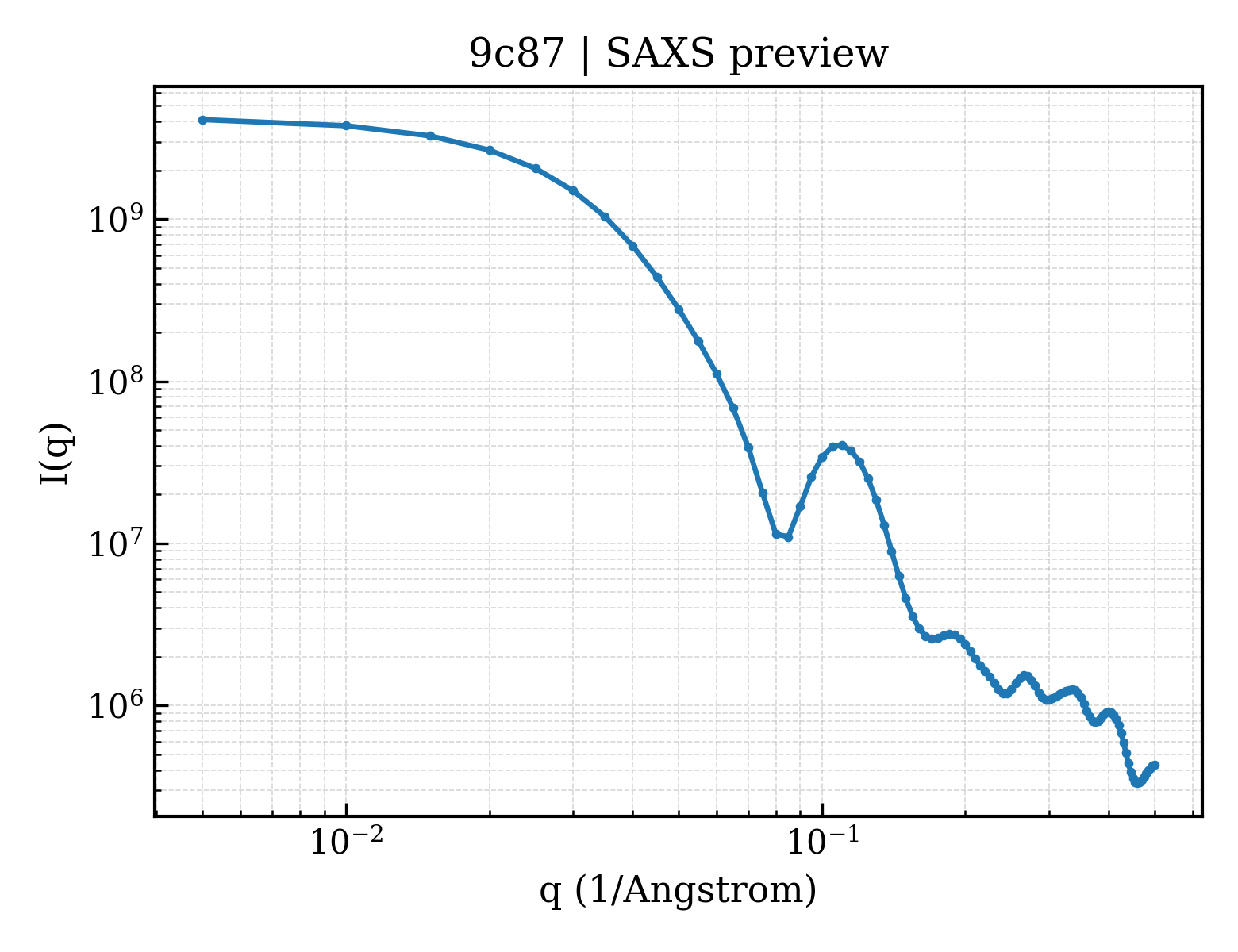

9c87__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9c87__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	58.77 Å
Rg (electron density)	58.44 Å
Total Rg	58.41 Å
Atom count	77196
Residues	4927
Excluded volume	686750 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9c87__assembly_1__model_1`	21-meric （21）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	ATP-dependent Clp protease ATP-binding subunit ClpX
Molecular weight formula_weight	42412.9 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	77196

MGSSHHHHHHDYDIPTTENLYFQGSSALPTPHEIRNHLDDYVIGQEQAKKVLAVAVYNHYKRLRNGDTSNGVELGKSNILLIGPTGSGKTLLAETLARLLDVPFTMADATTLTEAGYVGEDVENIIQKLLQKSDYDVQKAQRGIVYIDEIDKISRKSDNPSITRDVSGEGVQQALLKLIEGTVAAVPPQGGRKHPQQEFLQVDTSKILFICGGAFAGLDKVISHRVETGSGIGFGATVKAKSDKASEGELLAQVEPEDLIKFGLIPEFIGRLPVVATLNELSEEALIQILKEPKNALTKQYQALFNLEGVDLEFRDEALDAIAKKAMARKTGARGLRSIVEAALLDTMYDLPSMEDVEKVVIDESVIDGQSEPLLIYGKPEAQQASGEG

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Dihydrofolate reductase
Molecular weight formula_weight	23777.6 kDa
EC 编号 ec_number	1.5.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MHHHHHHENLYFQGISLIAALAVDRVIGMENAMPWNLPADLAWFKRNTLDKPVIMGRHTWESIGRPLPGRKNIILSSQPGTDDRVTWVKSVDEAIAACGDVPEIMVIGGGRVYEQFLPKAQKLYLTHIDAEVEGDTHFPDYEPDDWESVFSEFHDADAQNSHSYCFEILERRGSHLGLIEVEKPLYCGSGSWSHPQFEKAANDENYALAA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	ATP-dependent Clp protease proteolytic subunit
Molecular weight formula_weight	23468.9 kDa
EC 编号 ec_number	3.4.21.92
Source method src_method	man
Copy count entity_count	14

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	h,i,j,k,l,m,n,p,q,r,s,t,u,v

LVPMVIEQTSRGERSFDIYSRLLKERVIFLTGQVEDHMANLIVAQMLFLEAENPEKDIYLYINSPGGVITAGMSIYDTMQFIKPDVSTICMGQAASMGAFLLTAGAKGKRFCLPNSRVMIHQPLGGYQGQATDIEIHAREILKVKGRMNELMALHTGQSLEQIERDTERDRFLSAPEAVEYGLVDSILTHRNENLYFQSLEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	METHOTREXATE
Molecular weight formula_weight	454.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	71203
