3mt6

Structure of ClpP from Escherichia coli in complex with ADEP1

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 28	ACYLDEPSIPEPTIDE 1 × 14 (4S)-2-METHYL-2,4-PENTANEDIOL × 27 water × 14	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 28	ACYLDEPSIPEPTIDE 1 × 14 (4S)-2-METHYL-2,4-PENTANEDIOL × 28 water × 15	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CLPP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–207； UniProt 1–207 Author chain B； PDBConstruct 1–207； UniProt 1–207 Author chain C； PDBConstruct 1–207； UniProt 1–207 Author chain D； PDBConstruct 1–207； UniProt 1–207 Author chain E； PDBConstruct 1–207； UniProt 1–207 Author chain F； PDBConstruct 1–207； UniProt 1–207 Author chain G； PDBConstruct 1–207； UniProt 1–207 Author chain H； PDBConstruct 1–207； UniProt 1–207 Author chain I； PDBConstruct 1–207； UniProt 1–207 Author chain J； PDBConstruct 1–207； UniProt 1–207 Author chain K； PDBConstruct 1–207； UniProt 1–207 Author chain L； PDBConstruct 1–207； UniProt 1–207 Author chain M； PDBConstruct 1–207； UniProt 1–207 Author chain N； PDBConstruct 1–207； UniProt 1–207 Author chain O； PDBConstruct 1–207； UniProt 1–207 Author chain P； PDBConstruct 1–207； UniProt 1–207 Author chain Q； PDBConstruct 1–207； UniProt 1–207 Author chain R； PDBConstruct 1–207； UniProt 1–207 Author chain S； PDBConstruct 1–207； UniProt 1–207 Author chain T； PDBConstruct 1–207； UniProt 1–207 Author chain U； PDBConstruct 1–207； UniProt 1–207 Author chain V； PDBConstruct 1–207； UniProt 1–207 Author chain W； PDBConstruct 1–207； UniProt 1–207 Author chain X； PDBConstruct 1–207； UniProt 1–207 Author chain Y； PDBConstruct 1–207； UniProt 1–207 Author chain Z； PDBConstruct 1–207； UniProt 1–207 Author chain a； PDBConstruct 1–207； UniProt 1–207 Author chain b； PDBConstruct 1–207； UniProt 1–207

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3mt6
Deposition date deposition_date	2010-04-30
Structure title title	Structure of ClpP from Escherichia coli in complex with ADEP1
Keywords keywords	ENDOPEPTIDASE CLP, CASEINOLYTIC PROTEASE, PROTEASE TI, ACYPDEPSIPEPTIDE ANTIBIOTICS, HYDROLASE-ANTIBIOTIC COMPLEX; HYDROLASE/ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3mt6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

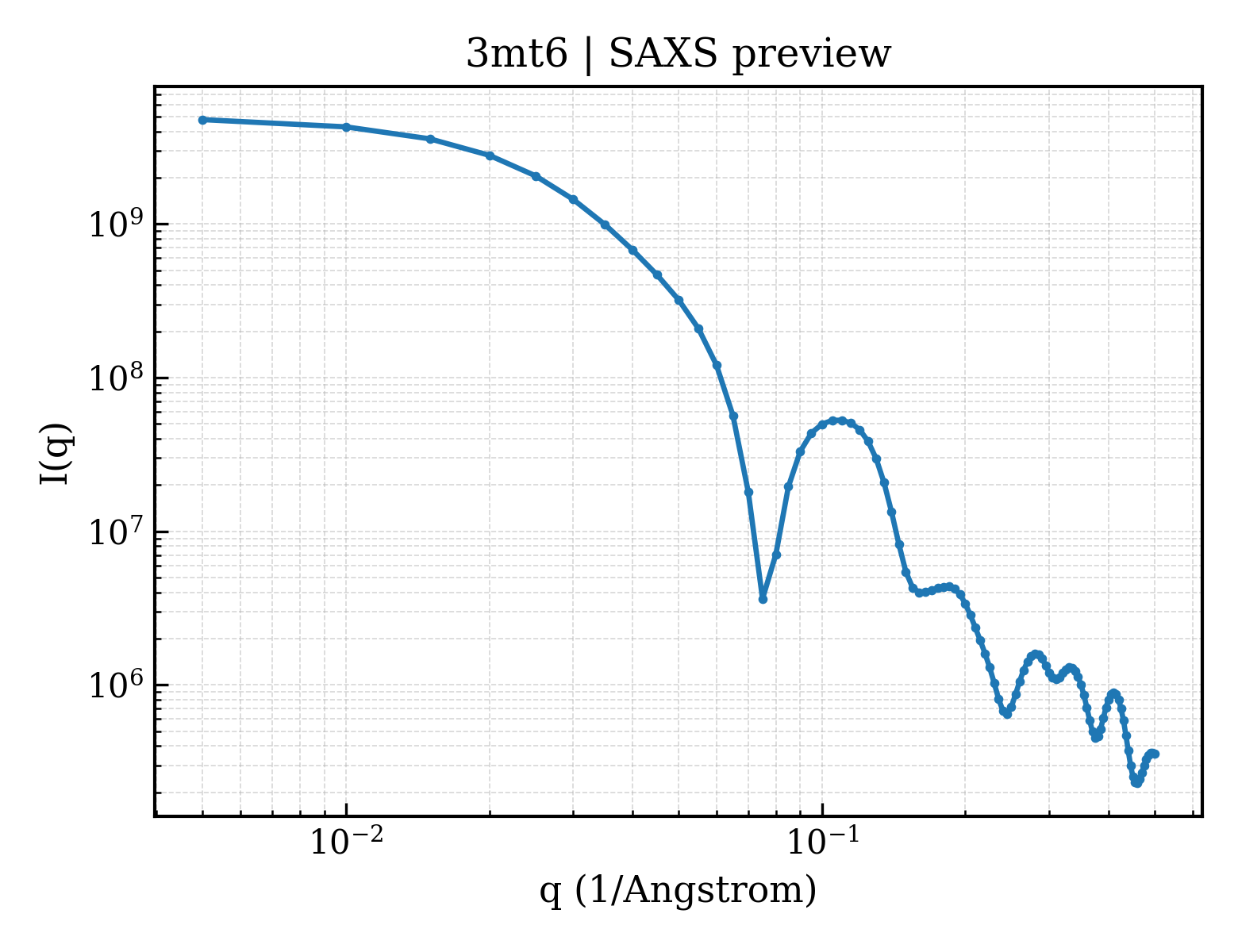

3mt6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

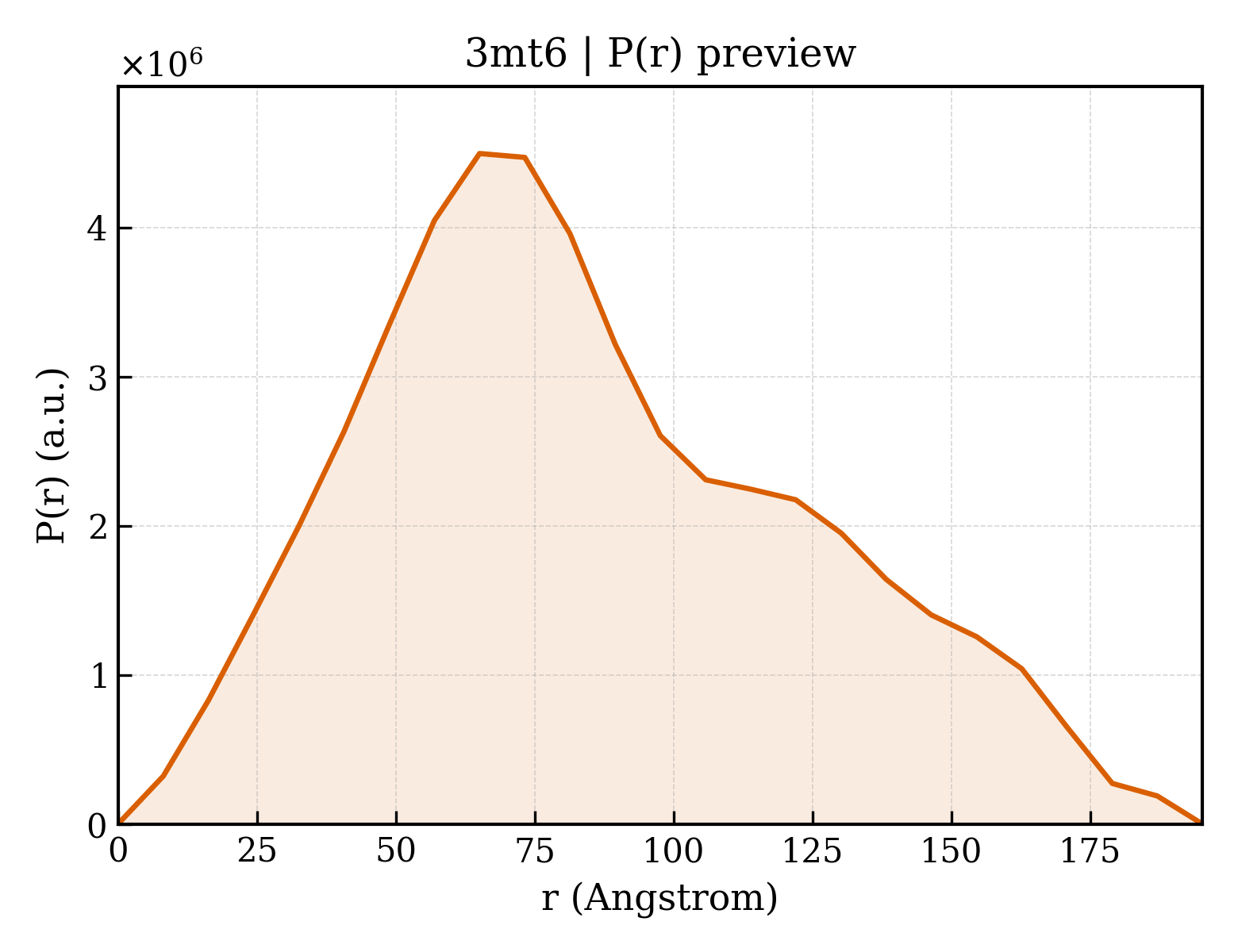

3mt6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.72 Å
Rg (electron density)	42.81 Å
Total Rg	43.14 Å
Atom count	21128
Residues	2646
Excluded volume	380820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3mt6__assembly_1__model_1`	28-meric （28）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3mt6__assembly_2__model_1`	28-meric （28）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ATP-dependent Clp protease proteolytic subunit
Molecular weight formula_weight	23212.7 kDa
EC 编号 ec_number	3.4.21.92
Source method src_method	man
Copy count entity_count	28

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R,S,T,U,O,P,Q,Y,Z,a,b,V,W,X,M,L,K,J,I,H,N,F,E,D,C,B,A,G
Atom count atom_count	46463

MSYSGERDNFAPHMALVPMVIEQTSRGERSFDIYSRLLKERVIFLTGQVEDHMANLIVAQMLFLEAENPEKDIYLYINSPGGVITAGMSIYDTMQFIKPDVSTICMGQAASMGAFLLTAGAKGKRFCLPNSRVMIHQPLGGYQGQATDIEIHAREILKVKGRMNELMALHTGQSLEQIERDTERDRFLSAPEAVEYGLVDSILTHRN

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	ACYLDEPSIPEPTIDE 1
Molecular weight formula_weight	736.9 kDa
Source method src_method	nat
Copy count entity_count	28

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,2,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,v,w,x,y,z,3,4,u

XFSPAAP

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	55

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3591

▼

6. Fold Classification (SCOP + CATH) 54 domains

SCOP 2.08 (26 domains)

Domain ID domain_id	d3mt6a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6i_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6j_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6k_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6l_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6m_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6n_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6o_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6p_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6q_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6r_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6s_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6t_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6u_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6v_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6w_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6x_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6y_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

Domain ID domain_id	d3mt6z_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.14 — ClpP/crotonase
Superfamily Superfamily superfamily	c.14.1 — ClpP/crotonase
Family Family family	c.14.1.1 — Clp protease, ClpP subunit

CATH v4.4 (28 domains)

Domain ID domain_id	3mt6A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6C00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6D00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6E00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6F00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6G00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6H00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6I00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6J00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6K00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6L00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6M00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6N00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6O00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6P00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6Q00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6R00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6S00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6T00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6U00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6V00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6W00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6X00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6Y00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6Z00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6a00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

Domain ID domain_id	3mt6b00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	226 — 2-enoyl-CoA Hydratase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — 2-enoyl-CoA Hydratase; Chain A, domain 1

▶

Unit-cell length a length_a	93.254 Å
Unit-cell length b length_b	121.150 Å
Unit-cell length c length_c	276.170 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.901 Å
Low-resolution limit resolution_low	29.902 Å
R factor r_factor	0.1784
R_work r_work	0.1781
R_free r_free	0.2039

Structure of ClpP from Escherichia coli in complex with ADEP1

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3mt6__assembly_1__model_1

3mt6__assembly_1__model_1 | I(q)

3mt6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 54 domains

SCOP 2.08 (26 domains)

CATH v4.4 (28 domains)

7. Citations (1)

Structure of ClpP from Escherichia coli in complex with ADEP1

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-dependent Clp protease proteolytic subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3mt6__assembly_1__model_1

3mt6__assembly_1__model_1 | I(q)

3mt6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 54 domains

SCOP 2.08 (26 domains)

CATH v4.4 (28 domains)

7. Citations (1)
