SAXSdb — 1uzv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PSEUDOMONAS AERUGINOSA LECTIN II

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	SULFATE ION × 2 CALCIUM ION × 8 alpha-L-fucopyranose × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HYN5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 2–115 Author chain B； PDBConstruct 1–114； UniProt 2–115 Author chain C； PDBConstruct 1–114； UniProt 2–115 Author chain D； PDBConstruct 1–114； UniProt 2–115

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uzv
Deposition date deposition_date	2004-03-17
Structure title title	High affinity fucose binding of Pseudomonas aeruginosa lectin II: 1.0 A crystal structure of the complex
Keywords keywords	LECTIN, FUCOSE, CALCIUM; LECTIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uzv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

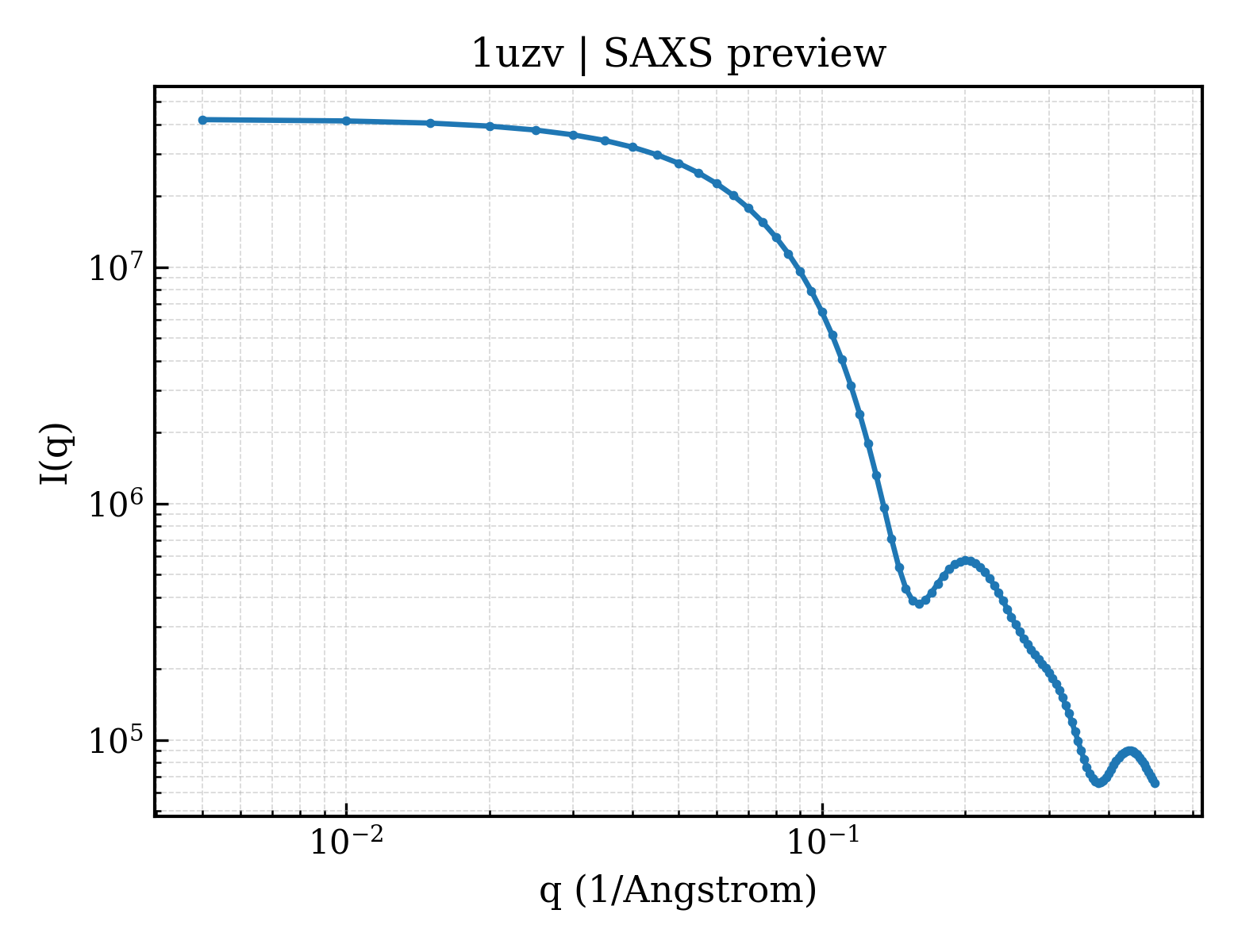

1uzv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

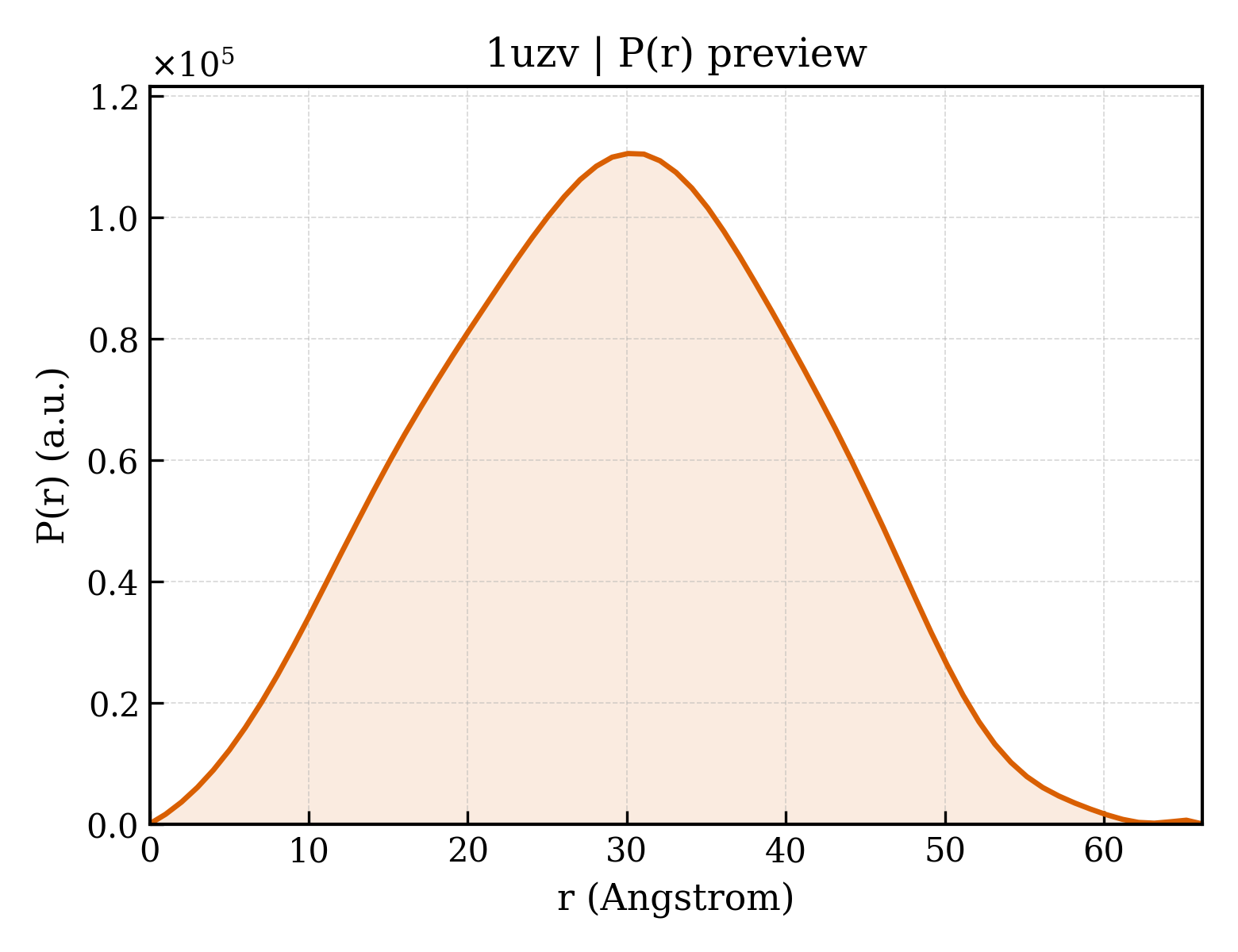

1uzv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.59 Å
Rg (electron density)	21.08 Å
Total Rg	22.00 Å
Atom count	3370
Residues	456
Excluded volume	59178 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uzv__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PSEUDOMONAS AERUGINOSA LECTIN II
Molecular weight formula_weight	11734.7 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4289

ATQGVFTLPANTRFGVTAFANSSGTQTVNVLVNNETAATFSGQSTNNAVIGTQVLNSGSSGKVQVQVSVNGRPSDLVSAQVILTNELNFALVGSEDGTDNDYNDAVVVINWPLG

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	alpha-L-fucopyranose
Molecular weight formula_weight	164.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	682

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1uzva_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1uzvb_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1uzvc_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1uzvd_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

CATH v4.4 (4 domains)

Domain ID domain_id	1uzvA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1uzvB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1uzvC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1uzvD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

▶

Unit-cell length a length_a	52.735 Å
Unit-cell length b length_b	72.827 Å
Unit-cell length c length_c	54.747 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.21 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1146
R_work r_work	—
R_free r_free	0.1351

High affinity fucose binding of Pseudomonas aeruginosa lectin II: 1.0 A crystal structure of the complex
