1w8f

PSEUDOMONAS AERUGINOSA LECTIN II (PA-IIL)COMPLEXED WITH LACTO-N-NEO- FUCOPENTAOSE V(LNPFV)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PSEUDOMONAS AERUGINOSA LECTIN II

PSEUDOMONAS AERUGINOSA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 4 其他Polymer 4	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]beta-D-glucopyranose × 1 ;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]beta-D-glucopyranose ; × 2 alpha-L-fucopyranose-(1-3)-[beta-D-galactopyranose-(1-4)]beta-D-glucopyranose × 1 SULFATE ION × 4 CALCIUM ION × 8 GLYCEROL × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9HYN5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–115； UniProt 1–115 Author chain B； PDBConstruct 1–115； UniProt 1–115 Author chain C； PDBConstruct 1–115； UniProt 1–115 Author chain D； PDBConstruct 1–115； UniProt 1–115

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w8f
Deposition date deposition_date	2004-09-21
Structure title title	PSEUDOMONAS AERUGINOSA LECTIN II (PA-IIL)COMPLEXED WITH LACTO-N-NEO- FUCOPENTAOSE V(LNPFV)
Keywords keywords	SUGAR BINDING PROTEIN, PENTASSACHARIDE, CYSTIC FIROSIS INFECTION OF LUNGS; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w8f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w8f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

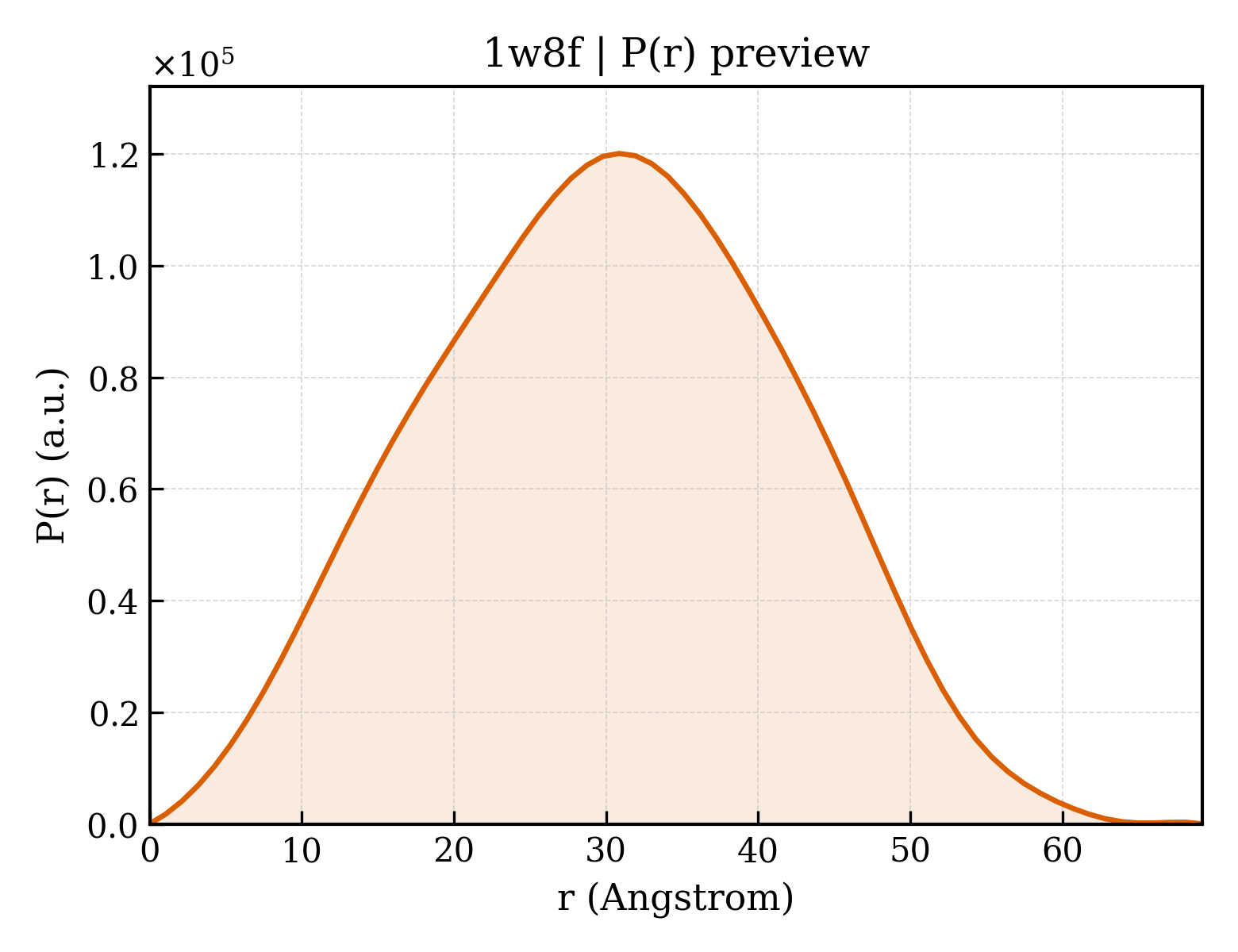

1w8f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.12 Å
Rg (electron density)	21.59 Å
Total Rg	22.58 Å
Atom count	3544
Residues	456
Excluded volume	62288 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w8f__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	PSEUDOMONAS AERUGINOSA LECTIN II
Molecular weight formula_weight	11865.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4528

MATQGVFTLPANTRFGVTAFANSSGTQTVNVLVNNETAATFSGQSTNNAVIGTQVLNSGSSGKVQVQVSVNGRPSDLVSAQVILTNELNFALVGSEDGTDNDYNDAVVVINWPLG

Source Source

Source organism organism	PSEUDOMONAS AERUGINOSA
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]beta-D-glucopyranose
Molecular weight formula_weight	691.6 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-3)-beta-D-galactopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)]beta-D-glucopyranose ;
Molecular weight formula_weight	853.8 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	alpha-L-fucopyranose-(1-3)-[beta-D-galactopyranose-(1-4)]beta-D-glucopyranose
Molecular weight formula_weight	488.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	727

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1w8fa_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1w8fb_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1w8fc_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

Domain ID domain_id	d1w8fd_
Class class	b — All beta proteins
Fold Fold fold	b.115 — Calcium-mediated lectin
Superfamily Superfamily superfamily	b.115.1 — Calcium-mediated lectin
Family Family family	b.115.1.1 — Calcium-mediated lectin

CATH v4.4 (4 domains)

Domain ID domain_id	1w8fA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1w8fB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1w8fC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

Domain ID domain_id	1w8fD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	400 — Calcium-mediated lectin

▶

Unit-cell length a length_a	47.015 Å
Unit-cell length b length_b	48.352 Å
Unit-cell length c length_c	52.472 Å
Unit-cell angle α angle_alpha	85.35 °
Unit-cell angle β angle_beta	80.05 °
Unit-cell angle γ angle_gamma	65.60 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.050 Å
Low-resolution limit resolution_low	14.510 Å
R factor r_factor	0.1060
R_work r_work	0.1050
R_free r_free	0.1230
