SAXSdb — 2jdh

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2jdh
沉积日期 deposition_date	2007-01-09
结构标题 title	Lectin PA-IIL of P.aeruginosa complexed with disaccharide derivative
关键词 keywords	LECTIN, CYSTIC FIBROSIS, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.81 Å
回转半径 Rg (电子) rg_electron	21.25 Å
零角强度 I(0) i0	43614200.00
分子量 molecular_weight	48839.0 kDa
排除体积 excluded_volume	60109 Å³
包络体积 envelope_volume	68486 Å³
水化壳体积 shell_volume	26097 Å³
包络直径 envelope_diameter	69.6 Å
壳层 Rg shell_rg	28.57 Å
包络 Rg envelope_rg	21.42 Å
形状 Rg shape_rg	21.21 Å
总 Rg total_rg	22.18 Å
总原子数 total_atoms	3425
残基数 n_residues	456
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	69.0 Å
Rg (实空间) rg_real	22.63 Å
Rg 误差 (实空间) rg_real_error	0.46 Å
I(0) (实空间) i0_real	4.3610e+07
I(0) 误差 (实空间) i0_real_error	5.9690e+05
Rg (倒空间) rg_reciprocal	22.67 Å
I(0) (倒空间) i0_reciprocal	43620000.0000
解质量估计 total_estimate	0.9023
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.3 Å
偏度 Skewness skewness	0.021
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.3500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5236000.0000
实空间数据点数 n_real_points	67
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	FUCOSE-BINDING LECTIN PA-IIL
分子量 formula_weight	11865.9 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	4379

MATQGVFTLPANTRFGVTAFANSSGTQTVNVLVNNETAATFSGQSTNNAVIGTQVLNSGSSGKVQVQVSVNGRPSDLVSAQVILTNELNFALVGSEDGTDNDYNDAVVVINWPLG

来源 Source

来源生物 organism	PSEUDOMONAS AERUGINOSA
NCBI 分类编号 ncbi_taxonomy_id	287
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 branched

描述 description	alpha-L-fucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	367.3 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	alpha-L-fucopyranose
分子量 formula_weight	164.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 5 non-polymer

描述 description	2H-1,2,3-TRIAZOL-4-YLMETHANOL
分子量 formula_weight	99.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 6 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	735

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2jdha_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2jdhb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2jdhc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2jdhd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

CATH v4.4 (4 domains)

结构域编号 domain_id	2jdhA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2jdhB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2jdhC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2jdhD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	52.552 Å
晶胞边长 b length_b	72.829 Å
晶胞边长 c length_c	54.359 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.29 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.100 Å
最低分辨率 resolution_low	54.230 Å
R 因子 r_factor	0.1080
R_work r_work	0.1070
R_free r_free	0.1310

fit	/app/data/saxs_computation/jd/2jdh/2jdh.fit
pddf	/app/data/pr_computation/jd/2jdh/2jdh.pr.out
profile	/app/data/saxs_computation/jd/2jdh/2jdh.dat

Lectin PA-IIL of P.aeruginosa complexed with disaccharide derivative

SAXS 散射曲线 SAXS Profile

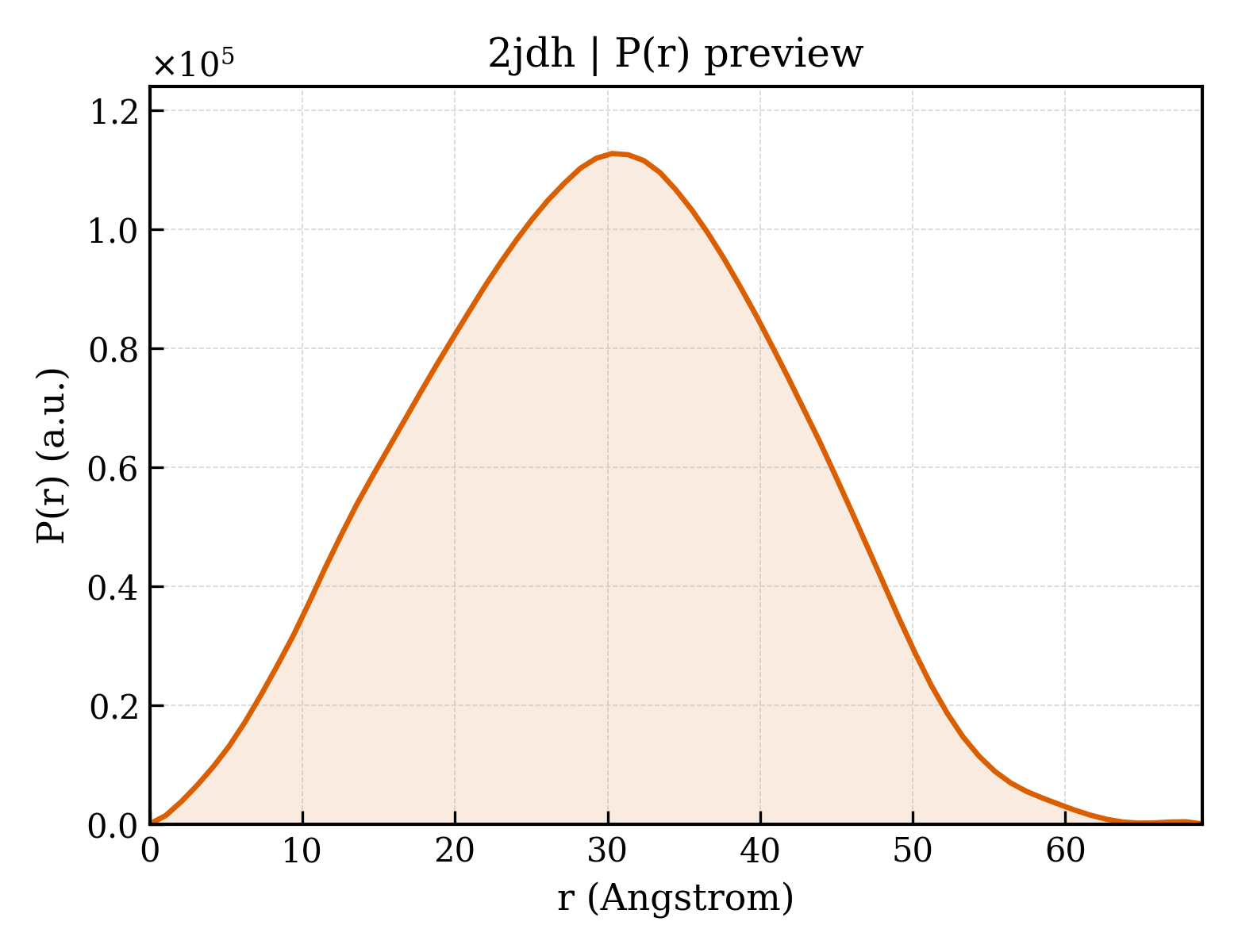

P(r) 距离分布 P(r) Distribution
