SAXSdb — 2boj

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2boj
沉积日期 deposition_date	2005-04-12
结构标题 title	crystal Structure of pseudomonas aeruginosa lectin (PA-IIL) complexed with methyl-B-D-Arabinopyranoside
关键词 keywords	LECTIN, ARABINOSE, CALCIUM, LEWIS A, CYSTIC FIBROSIS; LECTIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	22.51 Å
回转半径 Rg (电子) rg_electron	21.00 Å
零角强度 I(0) i0	41752500.00
分子量 molecular_weight	47981.0 kDa
排除体积 excluded_volume	59121 Å³
包络体积 envelope_volume	66818 Å³
水化壳体积 shell_volume	25785 Å³
包络直径 envelope_diameter	68.3 Å
壳层 Rg shell_rg	28.24 Å
包络 Rg envelope_rg	21.09 Å
形状 Rg shape_rg	20.96 Å
总 Rg total_rg	21.93 Å
总原子数 total_atoms	3365
残基数 n_residues	456
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	64.7 Å
Rg (实空间) rg_real	22.33 Å
Rg 误差 (实空间) rg_real_error	0.29 Å
I(0) (实空间) i0_real	4.1750e+07
I(0) 误差 (实空间) i0_real_error	4.8190e+05
Rg (倒空间) rg_reciprocal	22.38 Å
I(0) (倒空间) i0_reciprocal	41750000.0000
解质量估计 total_estimate	0.6473
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.4 Å
偏度 Skewness skewness	0.007
峰度 Kurtosis kurtosis	-0.536
角度范围 angular_range	— – 0.3550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4994000.0000
实空间数据点数 n_real_points	67
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 0.999; Sysdev: 0.189; Positv: 1.000; Valcen: 0.980; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	PSEUDOMONAS AERUGINOSA LECTIN II
分子量 formula_weight	11734.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	4102

ATQGVFTLPANTRFGVTAFANSSGTQTVNVLVNNETAATFSGQSTNNAVIGTQVLNSGSSGKVQVQVSVNGRPSDLVSAQVILTNELNFALVGSEDGTDNDYNDAVVVINWPLG

来源 Source

来源生物 organism	PSEUDOMONAS AERUGINOSA
NCBI 分类编号 ncbi_taxonomy_id	208964
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	methyl beta-D-arabinopyranoside
分子量 formula_weight	164.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	612

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d2boja_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2bojb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2bojc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

结构域编号 domain_id	d2bojd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.115 — Calcium-mediated lectin
超家族 Superfamily superfamily	b.115.1 — Calcium-mediated lectin
家族 Family family	b.115.1.1 — Calcium-mediated lectin

CATH v4.4 (4 domains)

结构域编号 domain_id	2bojA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2bojB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2bojC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

结构域编号 domain_id	2bojD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	400 — Calcium-mediated lectin

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	50.636 Å
晶胞边长 b length_b	80.168 Å
晶胞边长 c length_c	52.517 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	109.92 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	49.390 Å
R 因子 r_factor	0.1370
R_work r_work	0.1360
R_free r_free	0.1720

fit	/app/data/saxs_computation/bo/2boj/2boj.fit
pddf	/app/data/pr_computation/bo/2boj/2boj.pr.out
profile	/app/data/saxs_computation/bo/2boj/2boj.dat

crystal Structure of pseudomonas aeruginosa lectin (PA-IIL) complexed with methyl-B-D-Arabinopyranoside

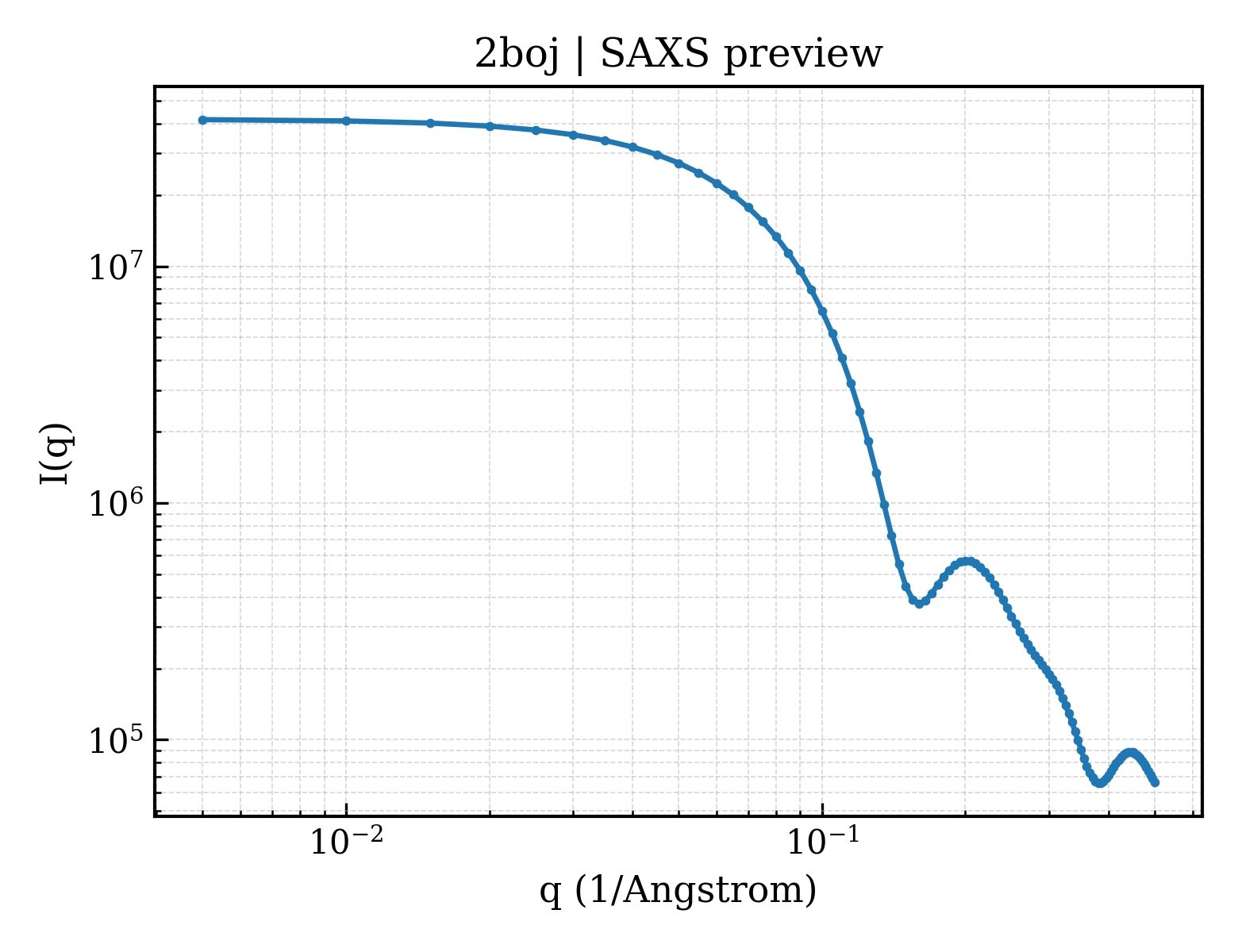

SAXS 散射曲线 SAXS Profile

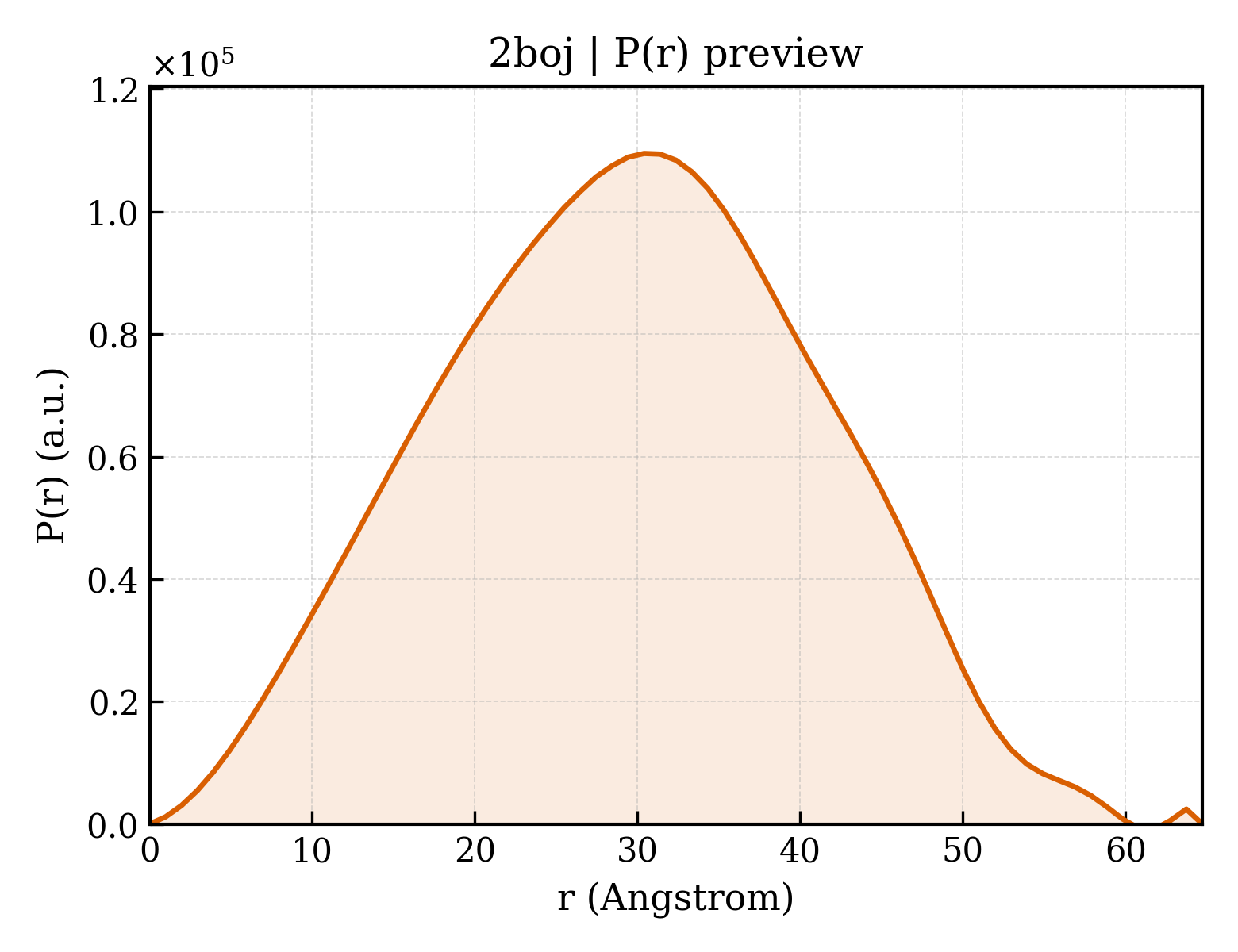

P(r) 距离分布 P(r) Distribution
